Husqvarna RZ3016 - 966612301 (2011-02) Zero Turn: Consumer

Model: RZ3016 - 966612301 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

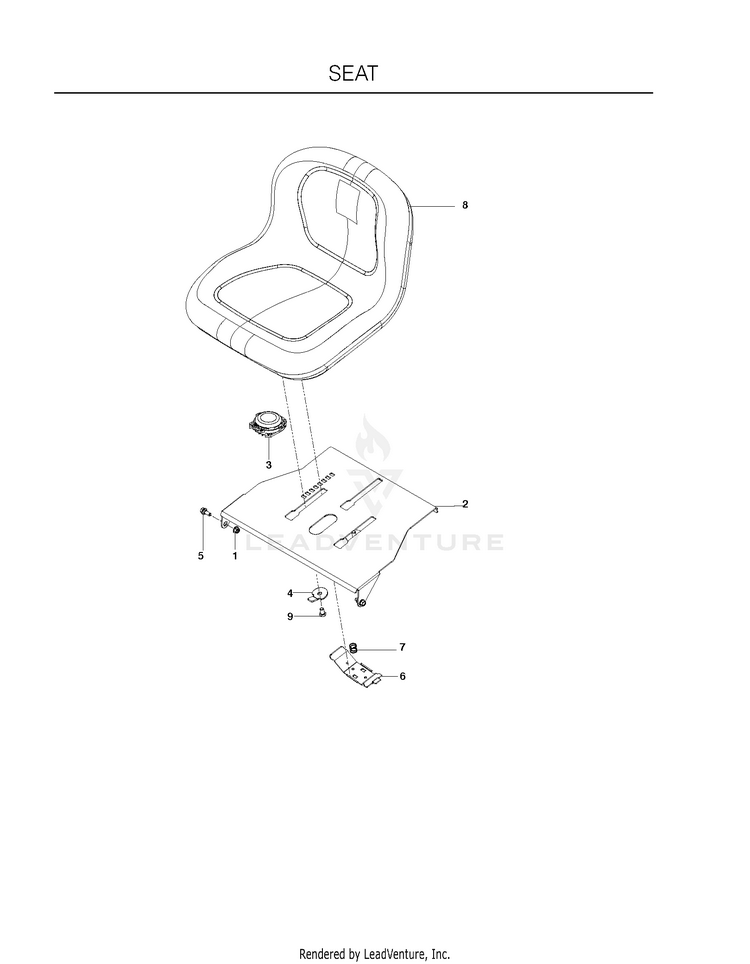

SEAT

...
...
1
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
2
PLATE, SEAT, ORG HUS-525580002
...
3
SWITCH, SEAT N/C HUS-539132140
...
4
STOP, SEAT, BLACK HUS-574191002
...
5
Bolts HUS-596240701
...
6
Handles HUS-595088102
...
7
SPRING.LATCH.SEAT.TEX HUS-532198200
...
8
SEAT.TG150.BLK.NLOGO. HUS-532406625
...
9
HCS 3/8-16 X 5/8 GR 5 ZD HUS-539108503
