Husqvarna RZ 54i - 967003604-00 (2013-05) Zero Turn Mower

Model: RZ 54i - 967003604-00 (2013-05)

Back To Assemblies

Save Part Not Listed?
product name

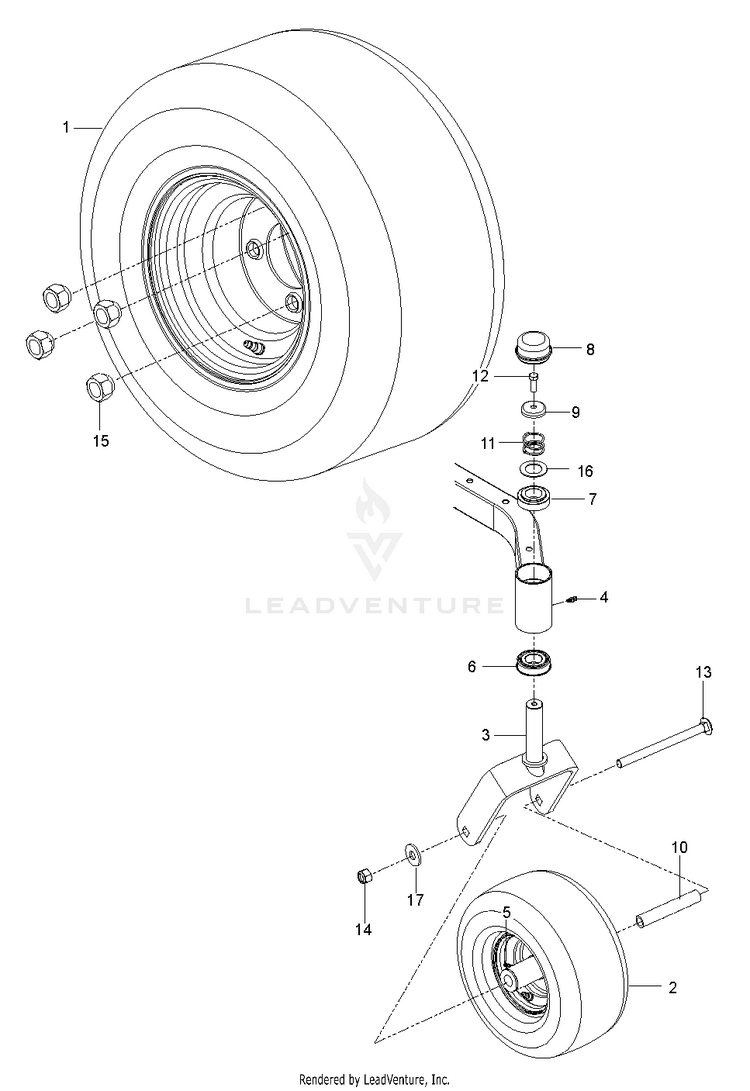

WHEELS & TIRES

...
...
7
BUSHING, CASTER HUS-539117901
...
9
Casters HUS-596301001
...
13
NUT.HEX.1/2-13 CENTRLK GR5 (BL HUS-576601503
...
10
SPACER, PIVOT HUS-576588901
...
11
Casters HUS-596388901
...
12
Screws HUS-596319901
...
15
Nuts HUS-587653903
...
14
NUT 1/2-13 HEX FLANGE NYLOK CL Nut 1/2-13 Hex Center Lock (595316501) HUS-521991102
...
1
WHEEL CARLSTAR 18X9.5-8" SILVE HUS-590486601
...
6
BEARING FLANGED HUS-539112660
...
16
Washers HUS-596319801
...
2
WHEEL ASSY, WIDE, RZ HUS-576588602
...
5
ZERK HUS-539103300
...
17
Washers HUS-595316401
...
8
Caps HUS-595281301
...
3
YOKE CASTER ASSY 6INCH YOKE.PN HUS-586650309
...
4
ZERK, 3/16, DRIVE IN HUS-539115638
Schematic Image Zoomed
