Husqvarna RZ 5424 - 967003701 (2013-06) Zero Turn: Consumer

Model: RZ 5424 - 967003701 (2013-06)

Back To Assemblies

Save Part Not Listed?
product name

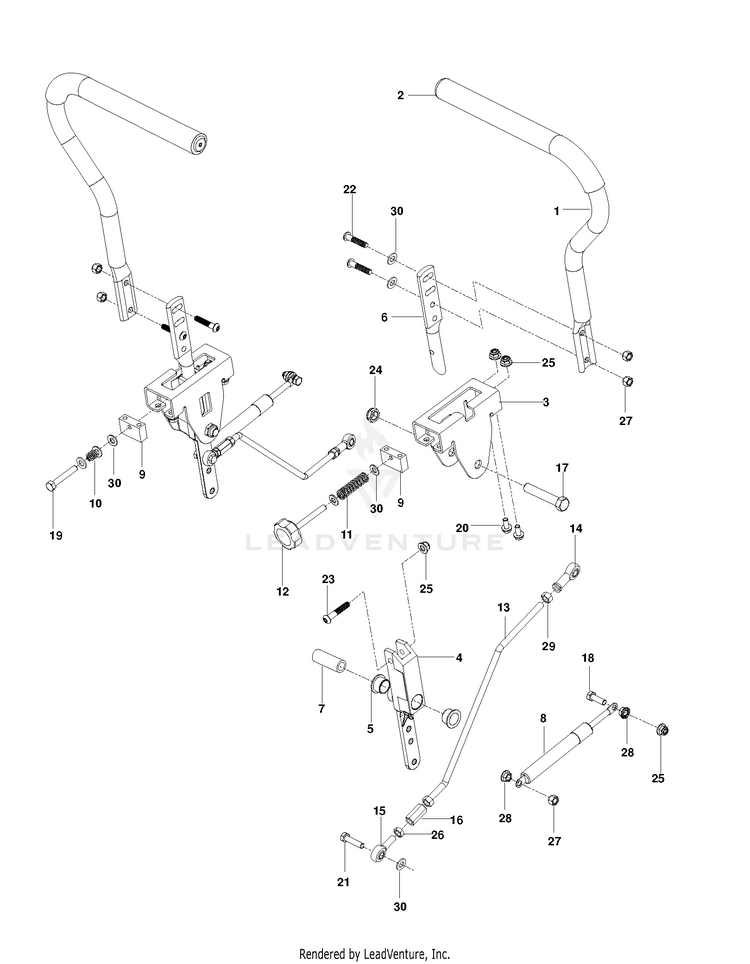

STEERING

...
...
1
TUBE RZ CONTROL LEVER LEFT MS HUS-598851704
...
2
TUBE RZ CONTROL LEVER LEFT MS HUS-598851704
...
3
BRACKET.CONTROL.NARROWSLOT.BLK HUS-586737202
...
5
BEARING, FLANGE HUS-539131518
...
4
LEVER CONTROL PIVOT HUS-576140301
...
6
Levers HUS-577420002
...
7
SPACER.PIVOT.CONTROL HUS-584927201
...
8
DAMPENER HUS-539102720
...
9
BLOCK.TRACKING HUS-577251801
...
10
SPRING HUS-539102845
...
11
SPRING COMPRESSION 2.0 HUS-576850301
...
12
Knobs HUS-596400701
...
13
ROD MOTION CONTROL HUS-580624201
...
14
JOINT.HEIM.FEML.5/16.RH.THREAD HUS-579764601
...
15
ROD.END.MALE.LH.THREAD HUS-588692502
...
16
Coupling HUS-596718601
...
17
Bolts HUS-596434301
...
18
Bolts HUS-596580801
...
19
Bolts HUS-596582201
...
20
Bolts HUS-592858702
...
21
SCREW HUS-874780528
...
22
SCREW BUTTONHEAD 5/16-18X1-1/2 HUS-578296402
...
23
SCREW 5/16-18 X 1 3/4 BTN-HD HUS-576850402
...
24
NUT 1/2-13 HEX JM NYL HUS-539108010
...
25
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
26
Nuts HUS-596584101
...
27
Hardware HUS-596040501
...
28
GSPW Hardware HUS-596039201
...
29
Hardware HUS-596040901
...
30
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
Schematic Image Zoomed
