Husqvarna RZ 5424 - 966659302 (2013-10) Zero Turn: Consumer

Model: RZ 5424 - 966659302 (2013-10)

Back To Assemblies

Save Part Not Listed?
product name

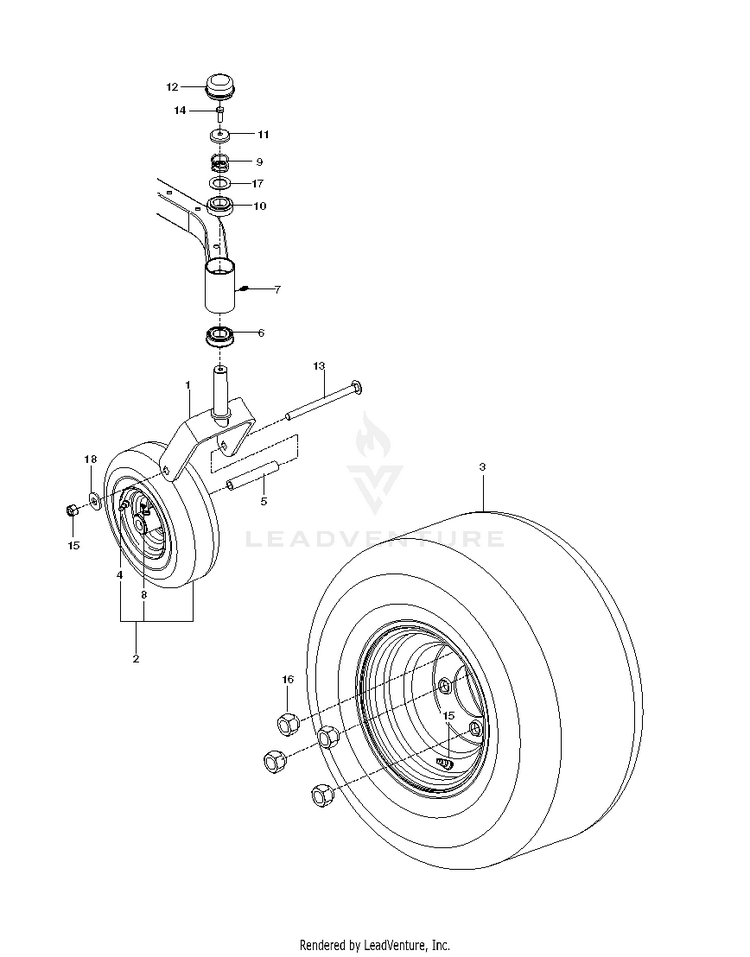

WHEELS TIRES

...
...
1
YOKE CASTER ASSY 6INCH YOKE.PN HUS-586650309
...
2
WHEEL ASSY, WIDE, RZ HUS-576588602
...
3
WHEEL.A500.18 X 9.5-8.SILVER HUS-579753401
...
4
VALVE STEM TR-412 HUS-539912234
...
5
SPACER, PIVOT HUS-576588901
...
6
BEARING FLANGED HUS-539112660
...
7
ZERK, 3/16, DRIVE IN HUS-539115638
...
8
ZERK HUS-539103300
...
9
Casters HUS-596388901
...
10
BUSHING, CASTER HUS-539117901
...
11
Casters HUS-596301001
...
12
Caps HUS-595281301
...
13
NUT.HEX.1/2-13 CENTRLK GR5 (BL HUS-576601503
...
14
Screws HUS-596319901
...
15
NUT 1/2-13 HEX CNTRLK GR 5 ZD HUS-539200100
...
16
Nuts HUS-587653903
...
17
Washers HUS-596319801
...
18
Washers HUS-595316401
Schematic Image Zoomed
