Husqvarna RZ 5424 - 966659302 (2013-10) Zero Turn: Consumer

Model: RZ 5424 - 966659302 (2013-10)

Back To Assemblies

Save Part Not Listed?
product name

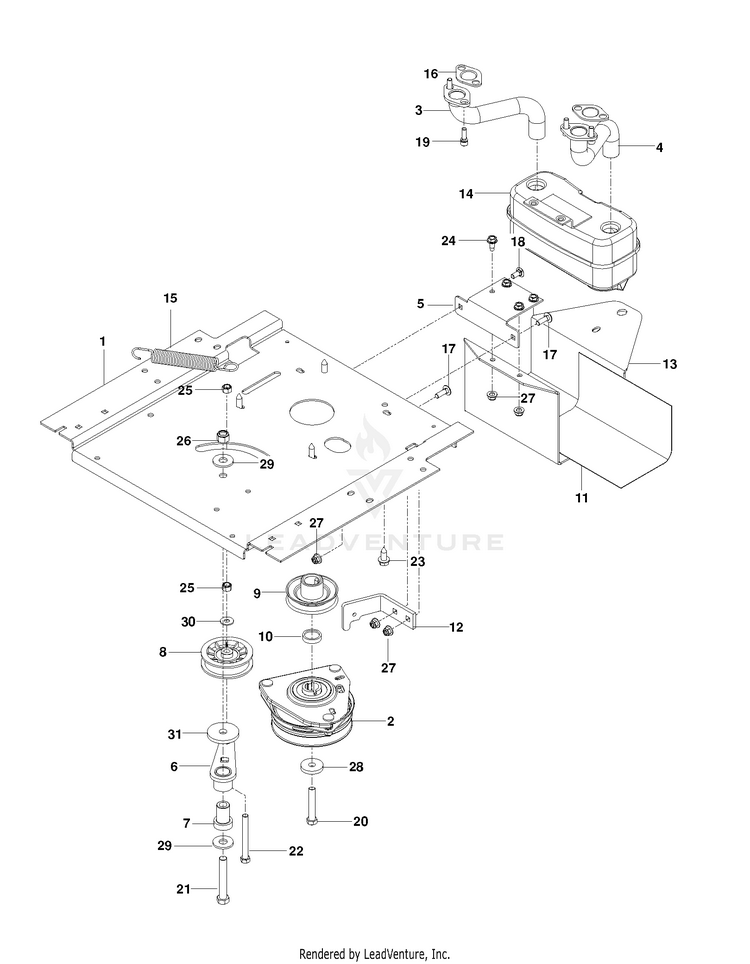

ENGINE PLATE

...
...
1
ENGINE PLATE RZ HUS-532448161
...
2
KIT.SVC.CLUTCH.ELECTRIC. HUS-532414336
...
3
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
4
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
5
BRACKET MUFFLER MS431BLK HUS-581886702
...
6
ARM.IDLER HUS-583593901
...
7
IDLER SPINDLE HUS-539101231
...
8
PULLEY IDLER, BACKSIDE 3 INCH HUS-531350601
...
9
PULLEY.ENGINE HUS-587537401
...
10
SPACER, HUB PULLEY HUS-577094601
...
11
HEAT SHIELD HUS-539132859
...
12
CLUTCH.STOP.OGURA LCC.BLACK HUS-587633302
...
13
GUARD.MUFFLER.WO.TOW.HITCHX431 HUS-587451202
...
14
MUFFLER ASM TWIN HUS-539131604
...
15
SPRING BELT TENSIONER BLACK HUS-547878302
...
16
GASKET.MUFFLER HUS-532165391
...
17
Bolts HUS-595901501
...
18
GSPW Bolts HUS-595901601
...
19
Screws HUS-596134202
...
20
HCS 7/16-20 X 2.5 GR8 HUS-576968001
...
21
Bolts HUS-596435301
...
22
Screws HUS-596433901
...
23
SCREW 3/8-16X1 HUS-817120616
...
24
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
25
GSPW Nuts HUS-596240901
...
26
GSPW NUTS HUS-596135601
...
27
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
28
WASHER HUS-532126197
...
29
Washers HUS-595316401
...
30
GSPH HUS-596134901
...
31
HEAVY WASHER HUS-539112670
...
xx
PIGTAIL.MATNLK.OLD.HARN NOT SHOWN HUS-532198316
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
