Husqvarna RZ 5424 - 966659302 (2013-10) Zero Turn: Consumer

Model: RZ 5424 - 966659302 (2013-10)

Back To Assemblies

Save Part Not Listed?
product name

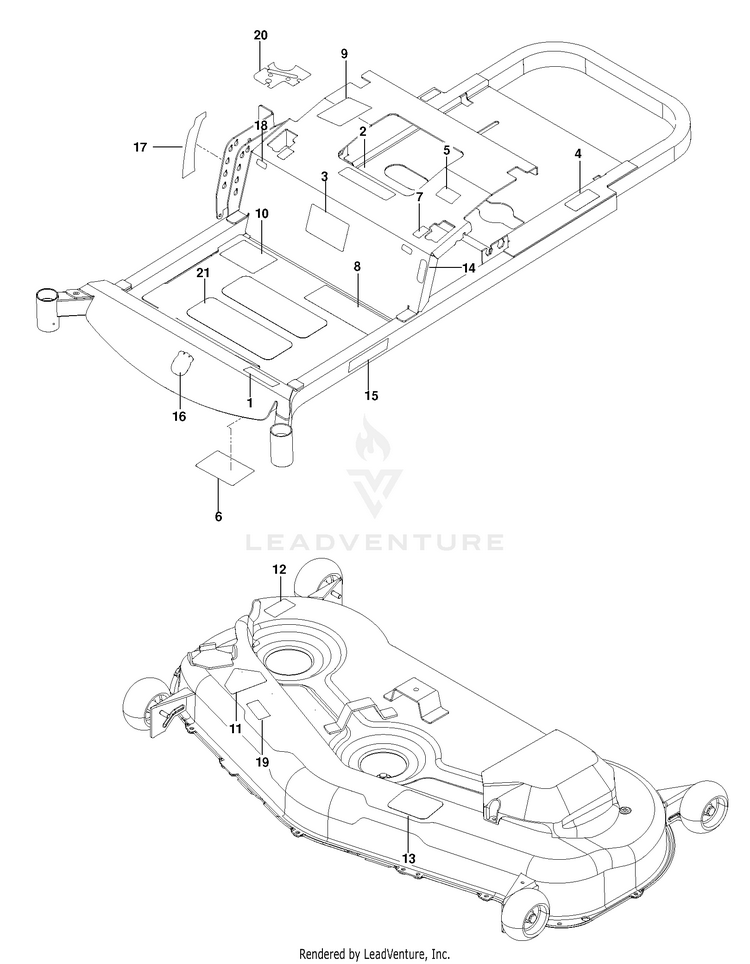

DECALS

...
...
1
DECAL, RZ5424 RZ5424 HUS-521949313
...
2
Decals BATTERY WARNING HUS-529527001
...
3
DECAL.ZTR.STRTNGINST.REMOTECHK HUS-586342501
...
4
DECAL.ZTR.DONOTTOW.EN/FR.2014 DO NOT TOW HUS-585142401
...
5
DECAL, EXITING MOWER EXIT MOWER HUS-539108386
...
6
RZ SERVICE DECAL SERVICE HUS-539109803
...
7
DECAL.ZTR.MOTCONTRL.SYMBOL.HUS MOTION CONTROLS HUS-589283001
...
8
DECAL, SAFETY WARNING HUS-539109908
...
9
DECAL.WARNING.CUST.RESP.E85. HUS-532423829
...
10
DECAL, WARNING HUS-539113213
...
11
DECAL, CPSC BLADE WARNING HUS-539913010
...
12
DECAL.DECK.6MIL./DEF.SHLD.WARN DEFLECTOR HUS-581724401
...
13
DECAL, BELT ROUTING BELT ROUTE HUS-539112620
...
14
DECAL, PARK BRAKE HUS-539120006
...
15
DECAL.BADGE.170MM.TEXTLOGO. HUS-581627301
...
16
DECAL.AUGER.HUSQ.CROWN.SNOW CROWN HUS-532428676
...
17
DECAL, DECK HEIGHT, HUSQ HEIGHT HUS-576979101
...
18
DECAL.STR.S.T.SYSMBOLONLY.2014 TRACKING HUS-585142601
...
19
DECAL, EURO SEVERING SEVERING HUS-539105746
...
20
DECAL.CNTRLPANEL.C/START.RZ CONSOLE HUS-586046701
...
21
ANTI-SKID PAD HUS-539977778
