Husqvarna RZ 5424 - 289821 (2011-09) Zero Turn Mower

Model: RZ 5424 - 289821 (2011-09)

Back To Assemblies

Save Part Not Listed?
product name

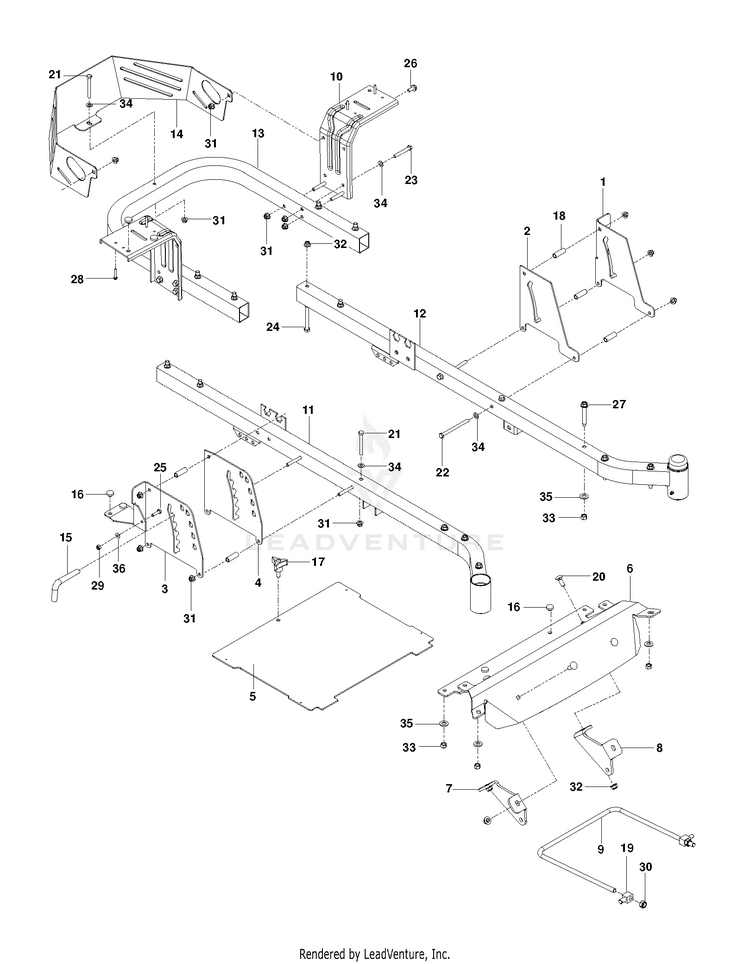

FRAME

...
...
28
Screws HUS-596917002
...
27
Screws HUS-596436901
...
12
FRAME.TUBE.RZ.MAIN.WELD.LH.ORG HUS-589283302
...
36
Washers HUS-596582301
...
15
Pins HUS-510016504
...
6
FOOT.REST.MED.ORANGE HUS-522719504
...
10
FENDER.SUPPORT.PNT.X431 HUS-580501302
...
16
GROMMET, BUMPER HUS-539102587
...
14
GUARD REAR GREY HUS-522956705
...
8
MOUNT.STRUT.LH.431 HUS-581222902
...
35
GSPW Washers HUS-596433701
...
4
PLATE, DECK HEIGHT, BLACK HUS-510240502
...
17
GSPW Knobs HUS-597783101
...
7
MOUNT, STRUT, LT, BLK HUS-522443304
...
31
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
25
Screws HUS-596230901
...
22
BOLT HUS-874780564
...
32
GSPW Nuts HUS-521996502
...
5
PLATES HUS-598712401
...
20
HUS-872141608
...
13
FRAME TUBE, REAR ORG HUS-510177603
...
9
Links HUS-521938102
...
1
PLATE, OUTER BRAKE, BLACK HUS-510261802
...
11
FRAME.TUBE.RZ.MAIN.WELD.RH.ORG HUS-589283402
...
18
Spacers HUS-580486102
...
26
HUS-817490642
...
33
Nuts HUS-596230801
...
29
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
23
Bolts HUS-596434801
...
34
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
24
Bolts HUS-596564405
...
30
Nuts HUS-595901901
...
21
Bolts HUS-596218601
...
19
SWIVEL HUS-539114789
...
2
PLATE, BRAKE LATCH, BLACK HUS-510206703
...
3
PLATE.DECK HEIGHT.PNT.431.RZ HUS-580528002
