Husqvarna RZ 5424 - 289821 (2011-09) Zero Turn Mower

Model: RZ 5424 - 289821 (2011-09)

Back To Assemblies

Save Part Not Listed?
product name

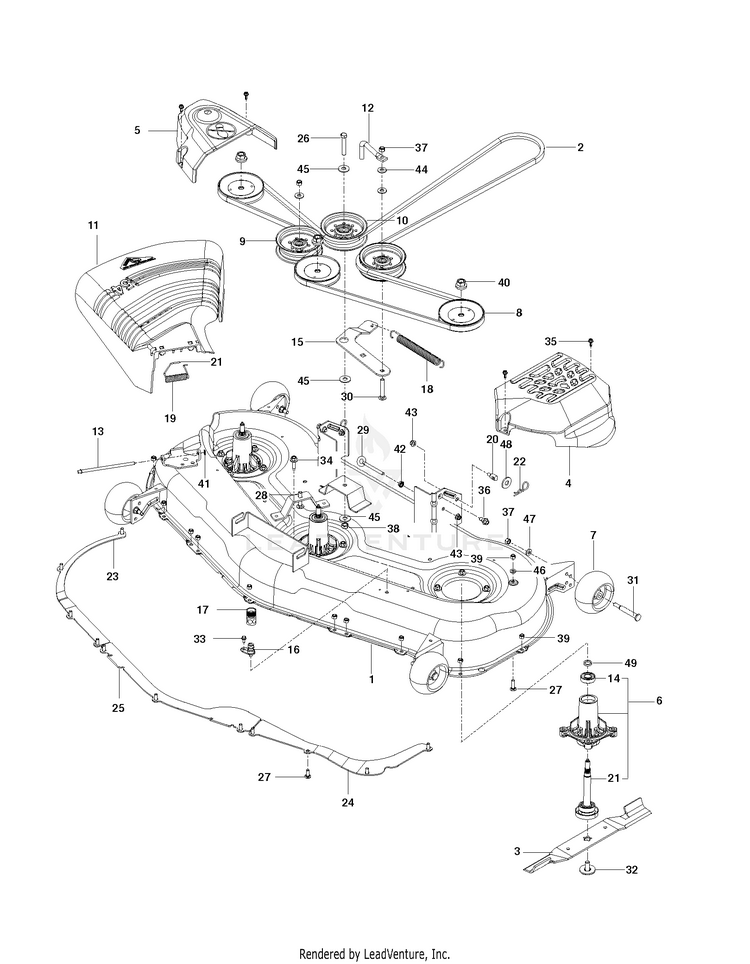

MOWER DECK / CUTTING DECK

...
...
46
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
7
WHEEL GAGE DONUT HUS-532133957
...
28
Bolts HUS-595901401
...
13
Rods HUS-595297001
...
16
PORT.WASHOUT HUS-532415598
...
20
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
33
Screws HUS-596437001
...
9
PULLEY.IDLER.2006 HUS-532196106
...
44
GSPW Washers HUS-596433701
...
6
KIT.MANDREL.GREASEABLE.TALL HUS-587820301
...
5
COVER.MANDREL.RH.DECK.54" HUS-532188187
...
49
WASHER.SPACER.MANDREL HUS-532187690
...
21
MANDRELS HUS-597023501
...
12
Keepers HUS-522629702
...
45
Washers HUS-596437601
...
32
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
17
COUPLING.QUICK CONNECT HUS-532416405
...
1
DECK SVC W/DECALS 54" ORG HUS-583909301
...
11
DEFLECTOR.BLACK.54" HUS-532187257
...
8
PULLEY MANDREL HUS-532173436
...
15
ARM IDLER ARM.IDLER.BLACK - SV HUS-510220003
...
34
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
4
COVER.MANDREL.LH.DECK.54" HUS-532187297
...
48
Washers HUS-596320001
...
37
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
14
BEARING HUS-532110485
...
22
Pins HUS-596273101
...
36
BOLT.SHOULDER HUS-532196539
...
2
BELT.DECK.52".54" HUS-539114557
...
40
Nuts HUS-596134801
...
30
Bolts HUS-596337801
...
29
GSPW Bolts HUS-596240801
...
47
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
26
Bolts HUS-596435201
...
43
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
10
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
42
GSPW Hardware HUS-596039201
...
27
Bolts HUS-596435701
...
41
NUT PUSH M HUS-532110452
...
23
SERVICE KIT BAFFLE.RIGHT.54" HUS-531168601
...
3
54" HIGH LIFT BLADE HUS-594892901
...
39
Hardware HUS-596040501
...
31
Bolts HUS-596434404
...
25
SERVICE KIT BAFFLE BAFFLE CENT HUS-531168801
...
18
Springs HUS-596989801
...
24
SERVICE KIT BAFFLE.LEFT.54" BA HUS-531168701
...
38
Nuts HUS-595901901
...
35
SCREW.1/4-20X5/8 HUS-532137729
...
19
TORSION SPRING HUS-539107609
