Husqvarna RZ 5424 - 289821 (2011-09) Zero Turn Mower

Model: RZ 5424 - 289821 (2011-09)

Back To Assemblies

Save Part Not Listed?
product name

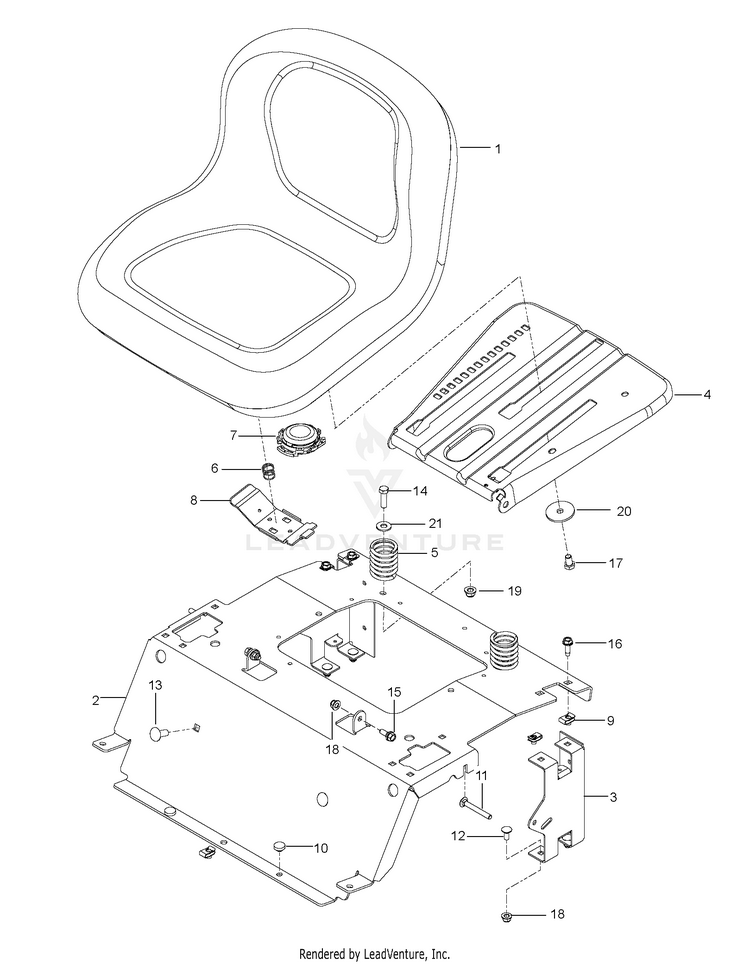

SEAT

...
...
5
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
7
SWITCH, SEAT N/C HUS-539132140
...
21
GSPW Washers HUS-596433701
...
3
SUPPORT REAR SEAT BLACK HUS-580308202
...
12
GSPW Bolts HUS-595901601
...
4
KIT.PLATE.SEAT HUS-596768801
...
1
SEAT.TH150.MS498.GRY.HUSQ.TEX HUS-532439822
...
11
Screws HUS-510422702
...
13
Bolts HUS-596728201
...
19
GSPW Nuts HUS-521996502
...
8
Handles HUS-595088102
...
9
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
17
HCS 3/8-16 X 5/8 GR 5 ZD HUS-539108503
...
20
Washers HUS-596917301
...
18
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
16
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
2
SUPPORT, SEAT ORANGE HUS-510171903
...
10
GROMMET, BUMPER HUS-539102587
...
6
SPRING.LATCH.SEAT.TEX HUS-532198200
...
15
Bolts HUS-596240701
...
14
BOLT HUS-874760620
