Husqvarna RZ 5424 - 289821 (2011-09) Zero Turn Mower

Model: RZ 5424 - 289821 (2011-09)

Back To Assemblies

Save Part Not Listed?
product name

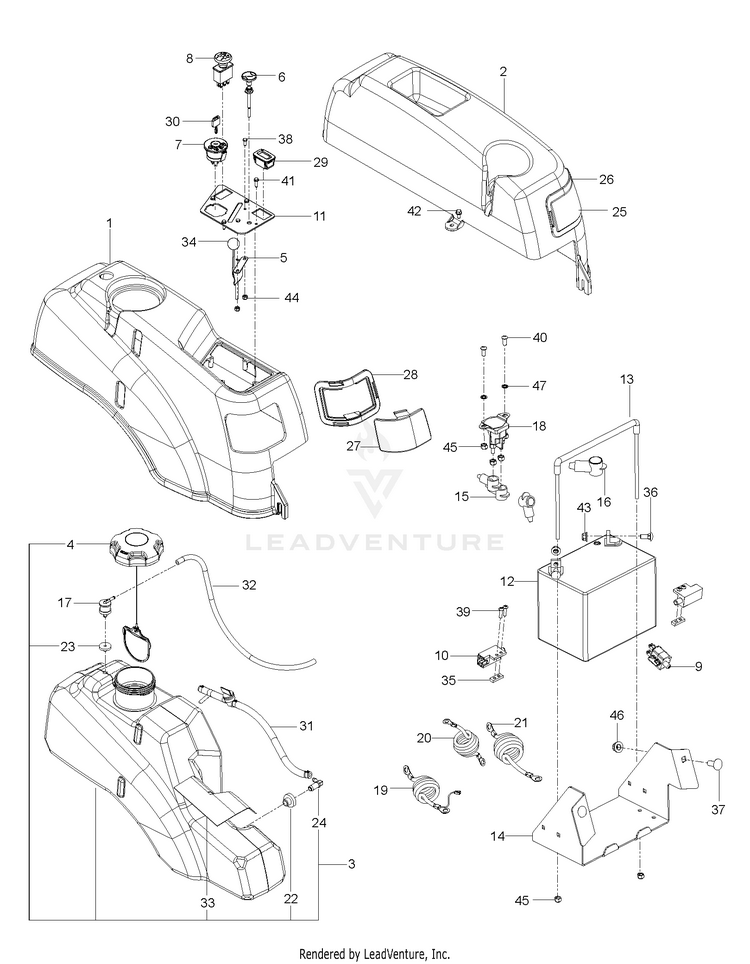

IGNITION SYSTEM

...
...
45
GSPW Nuts HUS-596240901
...
28
RT HEADLIGHT RIM GREY HUS-539110451
...
25
LEFT HEADLIGHT LENS HUS-539110457
...
37
Screws HUS-596584001
...
4
CAP 3.5IN SEALED HUS-575018103
...
17
VALVE.FUEL.CHECK HUS-576618101
...
34
KNOB.ROUND.BALL.BLACK HUS-539133049
...
16
INSULATOR HUS-539102759
...
20
BATTERY CABLE, NEGATIVE HUS-539110068
...
41
BOLT 1/4-20 X 1/2 HWST HUS-539108461
...
27
RT HEADLIGHT LENS HUS-539110453
...
21
CABLE BATTERY POS RZ HUS-586108201
...
43
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
7
IGNITION SWITCH HUS-532175566
...
22
RUBBER GROMMET HUS-539105245
...
33
SHIELD, HEAT HUS-522559101
...
14
BOX, BATTERY, BLACK HUS-510231302
...
19
CABLE POSITIVE LONG W/LEAD w/ LEAD HUS-580798001
...
8
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
1
FENDER RT, GRAY HUS-578178901
...
3
FUEL TANK, RZ, 2.25" NECK, 202 HUS-599306304
...
11
PLATE.CONTROL.CONSOLE.BLACK HUS-539110305
...
44
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
12
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
30
KEY MLD GEN DELTA HUS-532140401
...
47
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
26
LEFT HEADLIGHT RIM GREY HUS-539110455
...
13
BATTERY TIE DOWN ASSEMBLY HUS-539131209
...
18
SOLENOID HUS-539101714
...
35
Screws HUS-596917001
...
23
GROMMET.CHECK.FUEL HUS-584648201
...
24
STEM FUEL TANK HUS-532139277
...
29
HOUR METER HUS-576179401
...
46
WASHER 1/4 INT TOOTH HUS-539990053
...
5
THROTTLE HUS-597524002
...
32
HOSE.3/16".VAPOR.LINE.17"LGTH HUS-587044517
...
2
FENDER, LT HUS-539130374
...
xx
WIRING HARNESS NOT SHOWN HUS-580798101
...
38
Screws HUS-596789701
...
6
CHOKE CONTROL CABLE 57" HUS-584971801
...
42
Hardware HUS-596040801
...
15
TERMINAL COVER-SM HUS-539116400
...
40
Bolts HUS-595316801
...
10
SWITCH, INTERLOCK HUS-539101080
...
31
FUEL.HOSE.SHUT.OFF.ASM.10".3" FUEL LINE HUS-586123904
...
9
SWITCH, BRAKE 3P HUS-539113792
...
36
Screws HUS-596582801
...
39
GSPW Bolts HUS-595901601
