Husqvarna RZ 5424 - 289821 (2011-09) Zero Turn Mower

Model: RZ 5424 - 289821 (2011-09)

Back To Assemblies

Save Part Not Listed?
product name

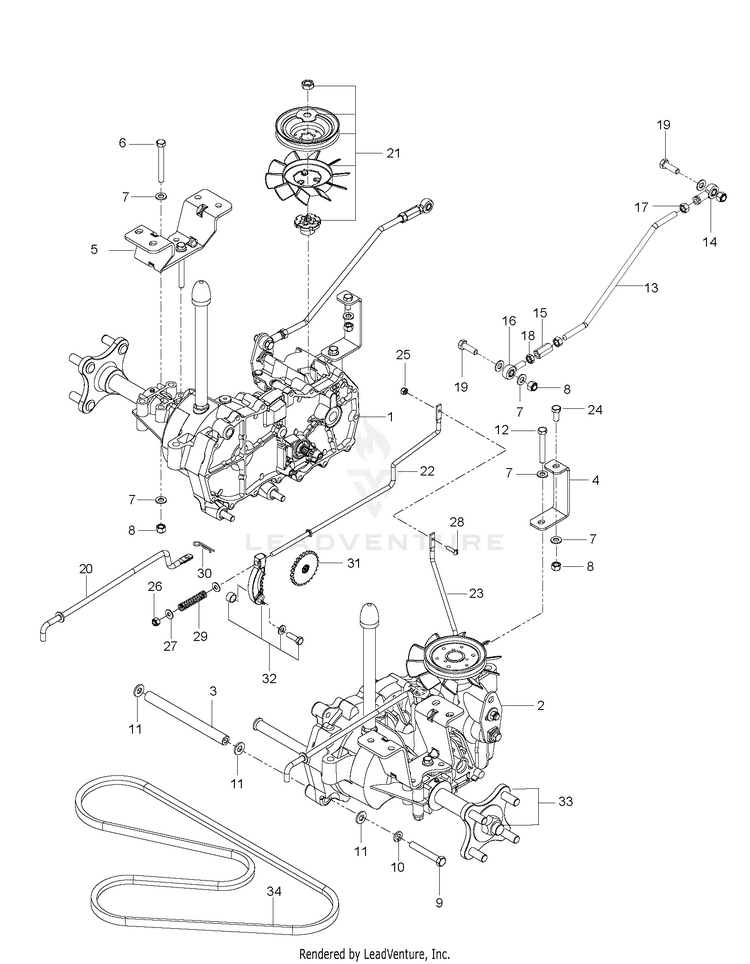

HYDRAULIC PUMP - MOTOR

...
...
28
SCR #10-24 X 3/4 HUS-539108535
...
17
Hardware HUS-596040901
...
12
CAPSCREW HUS-539976938
...
23
Links RT HUS-596930701
...
5
EZT MOUNT, REAR, BLACK REAR HUS-510185102
...
32
HG_KIT BRAKE ARM (EZT) HUS-539120079
...
26
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
14
JOINT.HEIM.FEML.5/16.RH.THREAD HUS-579764601
...
3
Spacers HUS-593852803
...
15
Coupling HUS-596718601
...
20
Links HUS-522941102
...
1
HG_EZT, LT LT HUS-510375601
...
2
HG_EZT, RT RT HUS-510375602
...
11
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
33
HG_KIT, HYDRO-GEAR HUB HUS-575507001
...
10
Washers HUS-596238701
...
21
KIT FAN/PULLEY 72137 HUS-501403602
...
7
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
19
Bolts HUS-596580801
...
8
Nuts HUS-596583702
...
30
Pins HUS-596580601
...
13
ROD MOTION CONTROL HUS-580624201
...
31
HG_DISC COG BRAKE 51635 HUS-539120080
...
22
Links LT HUS-596930401
...
24
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
34
BELT, HYDRO PUMP HUS-539110411
...
6
HCS 5/16C X 2-3/4 HUS-539101721
...
9
Bolts HUS-596434201
...
18
Nuts HUS-596584101
...
16
ROD.END.MALE.LH.THREAD HUS-588692502
...
25
Hardware HUS-596040801
...
4
SUPPORT.FRONT.TRANS.PNTX431 FRT HUS-580806502
...
29
Springs HUS-596299801
...
27
Washers HUS-596582301
