Husqvarna RZ 5424 - 289821 (2011-09) Zero Turn Mower

Model: RZ 5424 - 289821 (2011-09)

Back To Assemblies

Save Part Not Listed?
product name

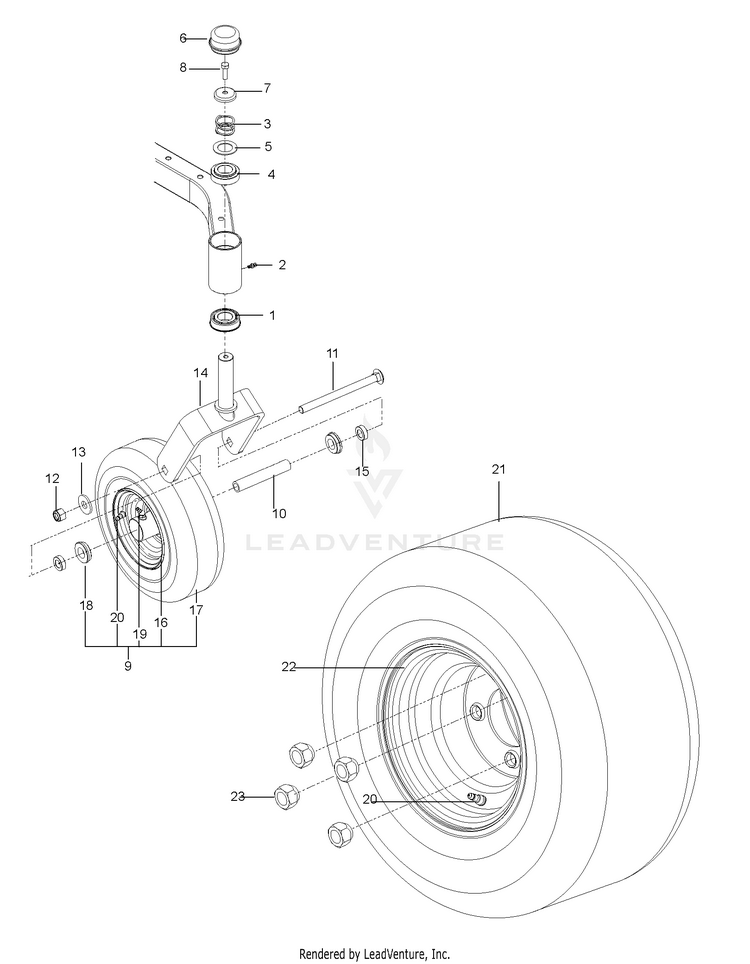

WHEELS & TIRES

...
...
18
BEARING RETAINER HUS-539102484
...
3
Casters HUS-596388901
...
9
WHEEL.CARLSTAR.11X4-5".MS417 HUS-590486802
...
13
Washers HUS-595316401
...
xx
TIRE, 18 X 9.5 - 8 HUS-539130822
...
2
ZERK, 3/16, DRIVE IN HUS-539115638
...
10
SPACER HUS-539105543
...
17
TIRE.11"X4"-5.4PLY.SMOOTH.KEND HUS-539114697
...
15
SPACER, 5/16" HUS-539114805
...
12
GSPW NUTS HUS-596135601
...
16
RIM HUS-539106994
...
21
WHEEL.A500.18 X 9.5-8.SILVER HUS-579753401
...
8
Screws HUS-596319901
...
14
YOKE.CASTER.ORANGE HUS-510186505
...
23
Nuts HUS-587653903
...
19
ZERK HUS-539103300
...
11
RHSNB 1/2-13 X 6.50 GR2 ZD HUS-539121159
...
4
BUSHING, CASTER HUS-539117901
...
7
Casters HUS-596301001
...
20
VALVE STEM TR-412 HUS-539912234
...
1
BEARING FLANGED HUS-539112660
...
6
Caps HUS-595281301
...
5
Washers HUS-596319801
...
22
RIM.8X7.W/8".OFFSET.SILVER.ZTR HUS-539112217
