Husqvarna RZ 5424 - 289821 (2011-09) Zero Turn Mower

Model: RZ 5424 - 289821 (2011-09)

Back To Assemblies

Save Part Not Listed?
product name

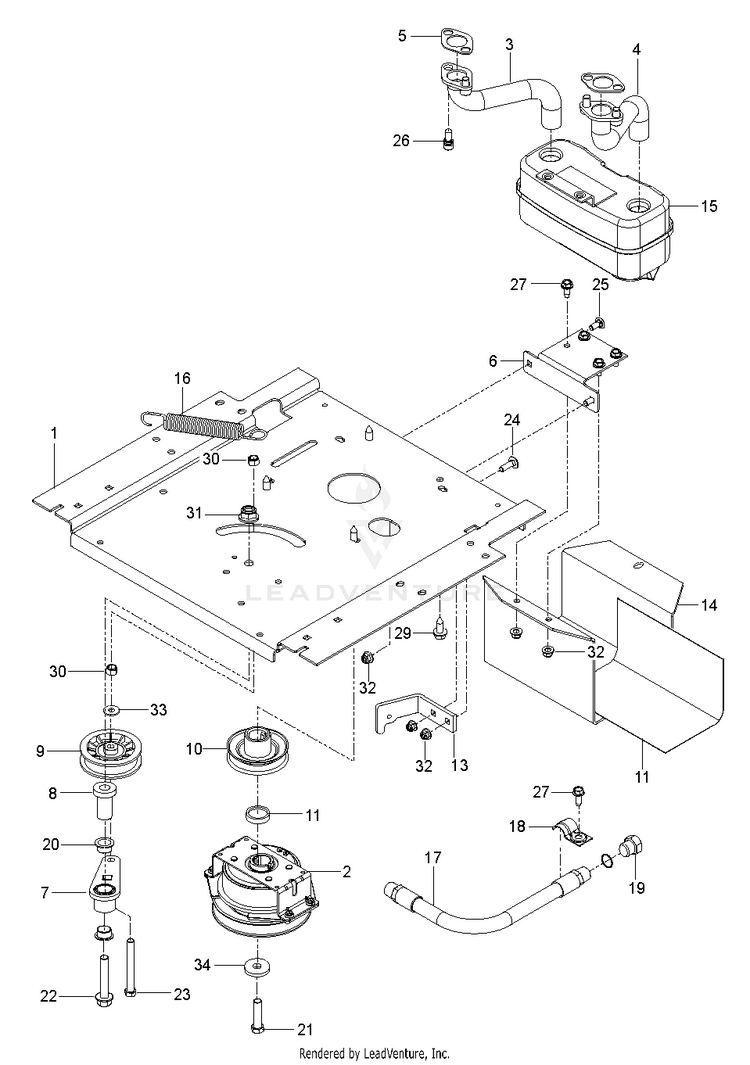

ENGINE MOUNTING, GUARDS & MUFFLER

...
...
25
GSPW Bolts HUS-595901601
...
8
SPINDLE.IDLER HUS-582538902
...
3
PIPE.EXHAUST.RH.CV18/20 HUS-583954801
...
32
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
19
PLUG OIL DRAIN HUS-585807101
...
4
PIPE.EXHAUST.LH.CV18/20 HUS-583954501
...
5
GASKET.EXHAUST.KOHL.CV18-CV26 HUS-532186054
...
15
MUFFLER ASM TWIN HUS-539131604
...
7
ARM.IDLER HUS-583593901
...
13
CLUTCH.STOP.OGURA LCC.BLACK HUS-587633302
...
21
Bolts HUS-581332806
...
9
PULLEY IDLER, BACKSIDE 3 INCH HUS-531350601
...
10
PULLEY.ENGINE HUS-587537401
...
30
GSPW Nuts HUS-596240901
...
22
Bolts HUS-582539502
...
17
HOSE.ASSEMBLY.OIL.DRAIN HUS-584825501
...
xx
Engine, Kohler KT745 26 HP. For engine replacement parts, see a Kohler dealer. HUS-000000000
...
24
Bolts HUS-595901501
...
11
SPACER.SPACER.625 W/OGURA.LCC HUS-587660101
...
27
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
26
Screws HUS-596134201
...
33
GSPH HUS-596134901
...
34
WASHER HUS-532126197
...
23
Screws HUS-596433901
...
6
BRACKET MUFFLER MS431BLK HUS-581886702
...
16
SPRING BELT TENSIONER BLACK HUS-547878302
...
20
BEARING.FLANGED.PLASTIC.3/4ID HUS-501603701
...
14
GUARD.MUFFLER.WO.TOW.HITCHX431 HUS-587451202
...
28
Screws HUS-596637301
...
29
SCREW 3/8-16X1 HUS-817120616
...
12
HEAT SHIELD HUS-539132859
...
31
NUT 1/2-13 HEX FLANGE NYLOK CL HUS-521991102
...
2
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 HUS-587241601
...
18
CLAMP HUS-539101363
...
1
PLATE ENGINE; RZ, 23IN BLACK HUS-593898602
