Husqvarna RZ 5424 - 289821 (2011-09) Zero Turn Mower

Model: RZ 5424 - 289821 (2011-09)

Back To Assemblies

Save Part Not Listed?
product name

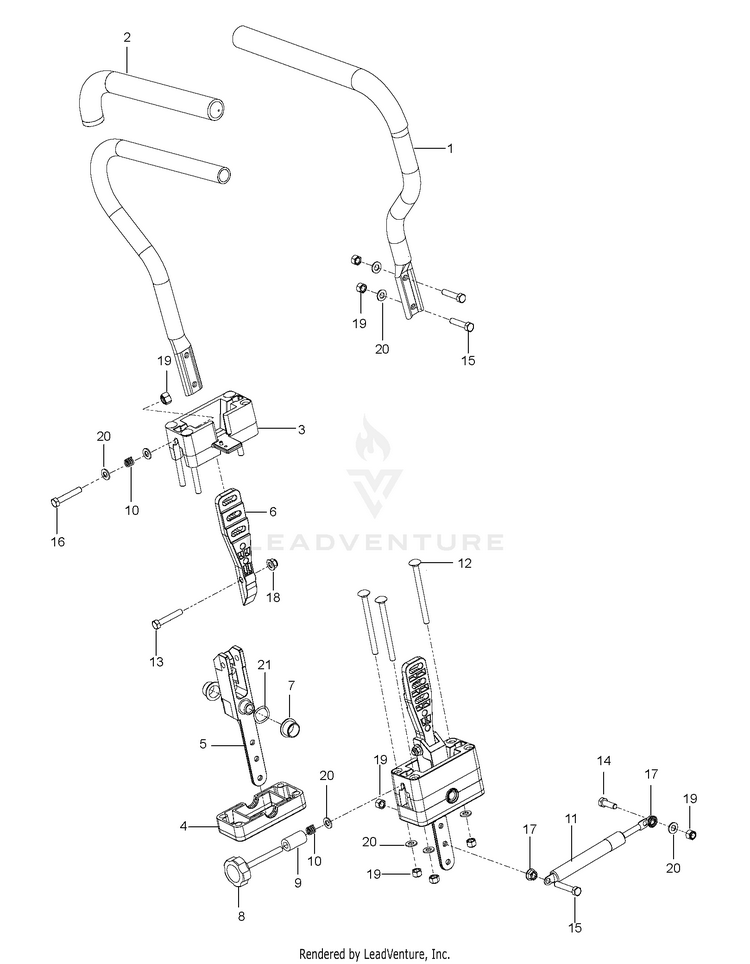

STEERING

...
...
16
Screws HUS-596565201
...
21
WASHER, .825 X 1.087, WAVE HUS-539133007
...
11
DAMPENER HUS-539102720
...
12
RHSNB 5/16-18 X 4 GR 5 ZD HUS-510422601
...
19
Nuts HUS-596583702
...
1
LEVER.STEERING.ASM.(W/GRIP) HUS-579036901
...
18
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
9
SPACER HUS-539103543
...
20
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
8
KNOB, 3" HUS-521982601
...
13
SCREW HUS-874780528
...
4
BLOCK, LOWER HUS-539131519
...
5
PIVOT.SECTION.DRIVE.CONTROL HUS-522452901
...
7
BEARING, FLANGE HUS-539131518
...
10
SPRING HUS-539102845
...
15
Bolts HUS-596582201
...
14
Bolts HUS-596580801
...
3
BLOCK, UPPER HUS-539131517
...
17
GSPW Hardware HUS-596039201
...
2
TUBE RZ CONTROL LEVER LEFT MS HUS-598851704
...
6
MOUNT.HANDLE.CONTROL HUS-576452801
