Husqvarna RZ 46i - 967277604 (2014-03) Zero Turn: Consumer

Model: RZ 46i - 967277604 (2014-03)

Back To Assemblies

Save Part Not Listed?
product name

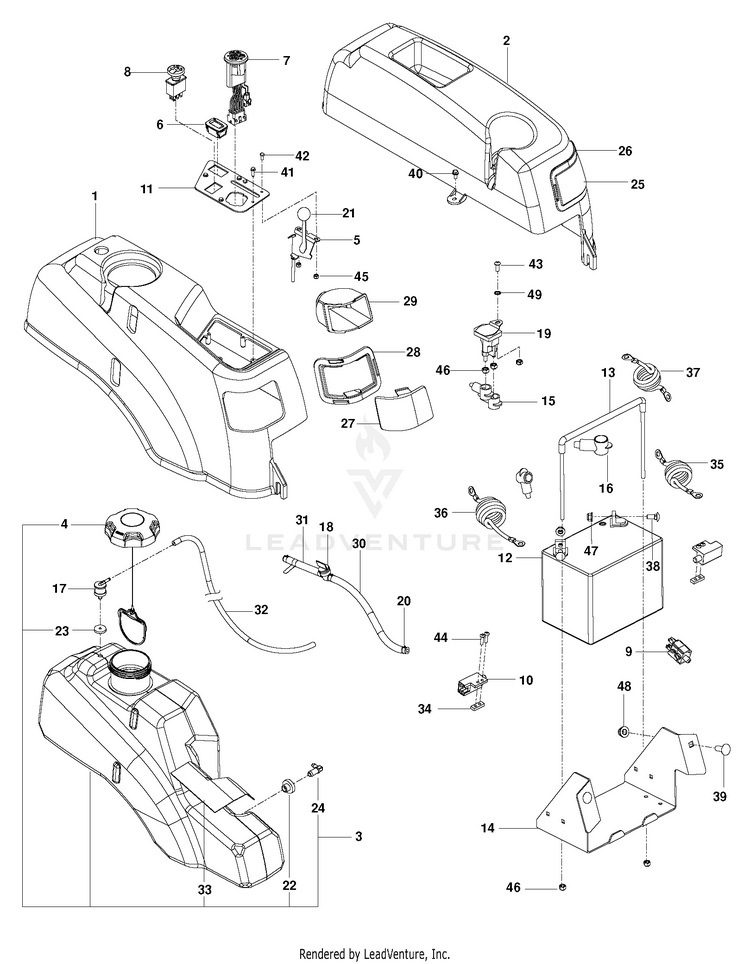

IGNITION SYSTEM

...
...
1
FENDER RT, GRAY HUS-578178901
...
2
FENDER, LT HUS-539130374
...
3
FUEL TANK, RZ, 2.25" NECK, 202 HUS-599306304
...
4
CAP 3.5IN SEALED HUS-575018103
...
5
CABLE THROTTLE 39" HUS-585974903
...
6
GUAGE.SRVCMNDR.HRMTR. HUS-594919101
...
7
SWITCH.ASM.SMARTSWTCH.MY15.ZTR HUS-586836702
...
8
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
9
SWITCH, BRAKE 3P HUS-539113792
...
10
SWITCH, INTERLOCK HUS-539101080
...
11
CONTROL.PLATE X431 HUS-581826102
...
12
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
13
BATTERY TIE DOWN ASSEMBLY HUS-539131209
...
14
BOX, BATTERY, BLACK HUS-510231302
...
15
COVER.TERMINAL.RED HUS-532154336
...
16
INSULATOR HUS-539102759
...
17
VALVE.FUEL.CHECK HUS-576618101
...
18
FUEL VALVE HUS-539916325
...
19
Solenoids HUS-582042802
...
20
HOSE CLAMP HUS-539912222
...
21
KNOB.ROUND.BALL.BLACK HUS-539133049
...
22
RUBBER GROMMET HUS-539105245
...
23
GROMMET.CHECK.FUEL HUS-584648201
...
24
STEM FUEL TANK HUS-532139277
...
25
LEFT HEADLIGHT LENS HUS-539110457
...
26
LEFT HEADLIGHT RIM GREY HUS-539110455
...
27
RT HEADLIGHT LENS HUS-539110453
...
28
RT HEADLIGHT RIM GREY HUS-539110451
...
29
REFLECTOR, HEADLIGHT RT HUS-539130671
...
30
GAS LINE 10" HUS-539932956
...
xx
REFLECTOR, LEFT HEAD LIGHT HUS-539130672
...
31
FUEL LINE 3" HUS-505215101
...
32
HOSE.3/16".VAPOR.LINE.17"LGTH HUS-587044517
...
33
SHIELD, HEAT HUS-522559101
...
34
TAPPED PLATE HUS-539102678
...
35
CABLE BATTERY POS RZ HUS-586108201
...
36
CABLE.BATTERY.NEGATIVE.RZ HUS-585306904
...
37
CABLE BATTERY POS HARNESS HUS-585734303
...
38
GSPW Bolts HUS-595901601
...
39
Bolts HUS-596728201
...
40
Screws HUS-596437001
...
41
Screws HUS-596917001
...
42
Screws HUS-596582801
...
43
Screws HUS-596789701
...
44
SCR #10-24 X .75 SKT HD BLK HUS-574822701
...
45
Hardware HUS-596040801
...
46
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
47
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
48
GSPW Nuts HUS-521996502
...
49
WASHER 1/4 INT TOOTH HUS-539990053
...
xx
HARNESS.SMART.EL.IGNITION.RZ NOT SHOWN HUS-584790901
...
xx
LIGHTBULB NOT SHOWN HUS-532004152
