Husqvarna RZ 46i - 967277604 (2014-03) Zero Turn: Consumer

Model: RZ 46i - 967277604 (2014-03)

Back To Assemblies

Save Part Not Listed?
product name

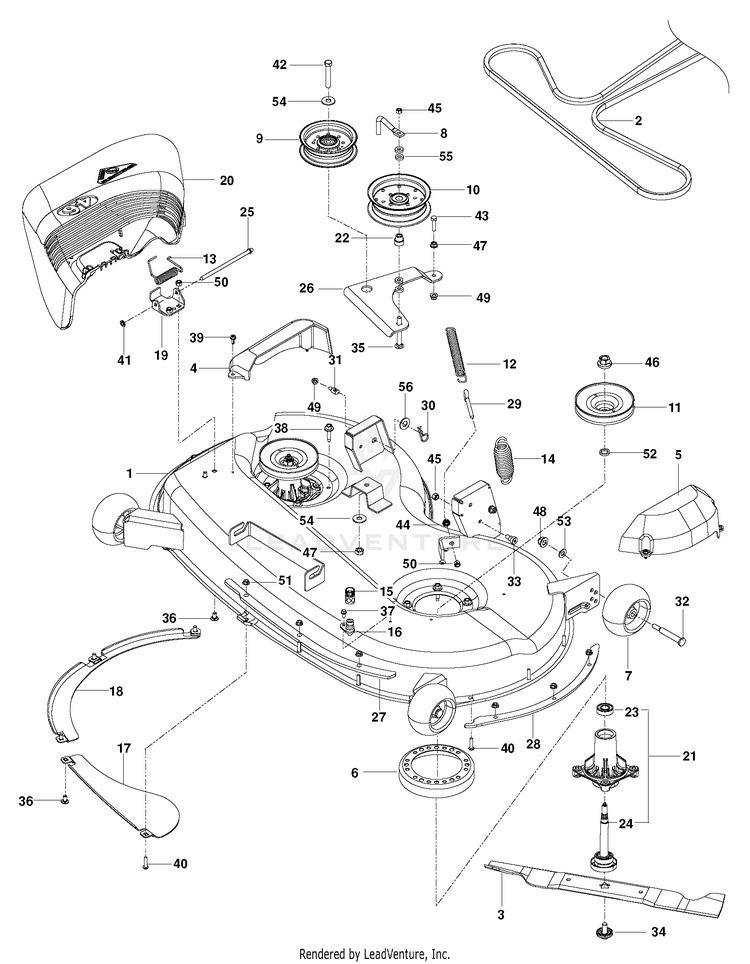

MOWER DECK / CUTTING DECK

...
...
1
Decks w / SAFETY DECALS HUS-598727201
...
2
V-BELT HUS-539117245
...
3
46" HIGH LIFT BLADE HUS-594892801
...
4
COVER.MANDREL.RH.46" HUS-532405506
...
5
COVER.MANDREL.LH.46" HUS-532405507
...
6
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
7
WHEEL.GAUGE.RALLY HUS-589527301
...
8
Keepers HUS-522629702
...
9
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
10
Pulleys HUS-589766102
...
11
PULLEY.MANDREL.46" HUS-588586601
...
12
Springs HUS-596989801
...
13
TORSION SPRING HUS-539107609
...
14
Springs HUS-596482001
...
15
COUPLING.QUICK CONNECT HUS-532416405
...
16
PORT.WASHOUT HUS-532415598
...
17
SERVICE KIT BAFFLE CENT HUS-531170601
...
18
SERVICE KIT BAFFLE FRONT HUS-531170701
...
19
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
20
SHIELD.DEFLECTOR.MOWER.46"BLAC HUS-532405357
...
21
MANDREL.W/SPCR.BRG.SHRT.NONRVL HUS-587125201
...
22
Bushings HUS-596790301
...
23
BEARING HUS-532110485
...
24
SHAFT ASM W/LOWER BEARING HUS-532174360
...
25
Rods HUS-595297001
...
26
ARM, IDLER BLK HUS-574689002
...
27
PLATE.REINF.DECK.46".FRONT.BLK HUS-589481805
...
28
PLATE.REINFOR.46.SIDEBOLT.X431 HUS-585317805
...
29
GSPW Bolts HUS-596240801
...
30
Pins HUS-596273101
...
31
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
32
Bolts HUS-596434404
...
33
Bolts HUS-596241101
...
34
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
35
Bolts HUS-596337801
...
36
GSPW Bolts HUS-595901601
...
37
Screws HUS-596584001
...
38
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
39
SCREW.1/4-20X5/8 HUS-532137729
...
40
Screws HUS-578296405
...
41
NUT PUSH M HUS-532110452
...
42
Bolts HUS-596435201
...
43
Screws HUS-595305701
...
44
GSPW Hardware HUS-596039201
...
45
Nuts HUS-596230801
...
46
Nuts HUS-596134801
...
47
Nuts HUS-595901901
...
48
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
49
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
50
Hardware HUS-596040501
...
51
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
52
WASHER.SPACER.MANDREL HUS-532187690
...
53
GSPH HUS-596134901
...
54
Washers HUS-596437601
...
55
WASHER 3/8 X 3/4 X .187 TK HUS-539109562
...
56
Washers HUS-596320001
