Husqvarna RZ 46i - 967277604 (2014-03) Zero Turn: Consumer

Model: RZ 46i - 967277604 (2014-03)

Back To Assemblies

Save Part Not Listed?
product name

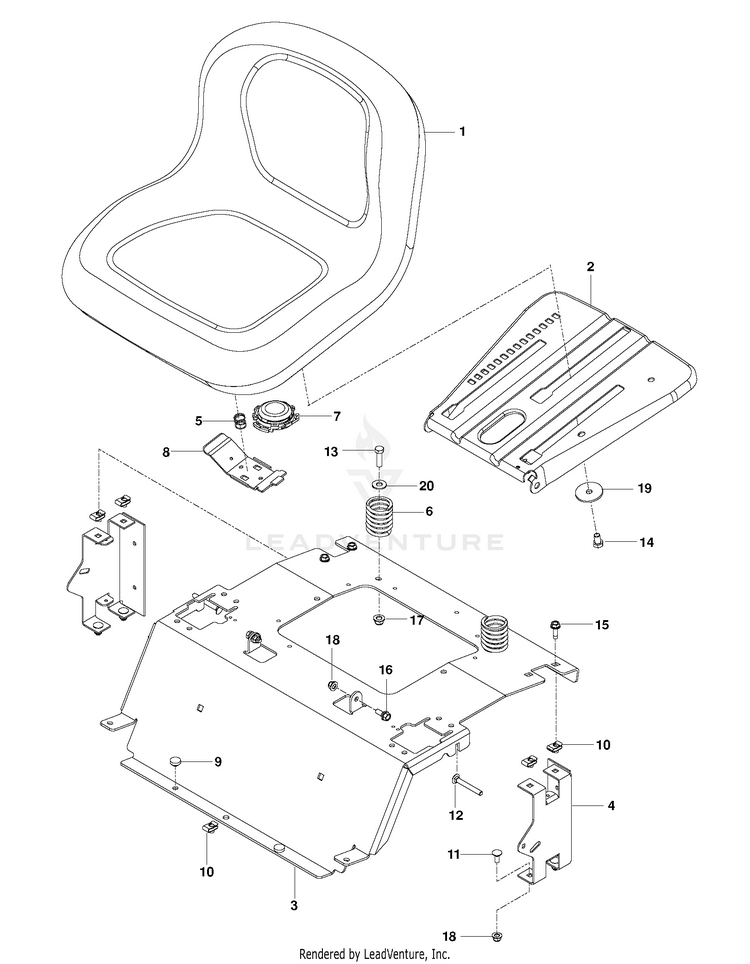

SEAT

...
...
1
SEAT.TH150.MS498.GRY.HUSQ.TEX HUS-532439822
...
2
KIT.PLATE.SEAT HUS-596768801
...
3
PLATE SEAT SUPPORT; RZ ORANGE HUS-589761211
...
4
SUPPORT REAR SEAT BLACK HUS-580308202
...
5
SPRING.LATCH.SEAT.TEX HUS-532198200
...
6
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
7
SWITCH.SEAT.OPC.DELTA.W/3LB.HL HUS-581429301
...
8
Handles HUS-595088102
...
9
GROMMET, BUMPER HUS-539102587
...
10
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
11
GSPW Bolts HUS-595901601
...
12
Screws HUS-510422702
...
13
BOLT HUS-874760620
...
14
Bolts HUS-596564401
...
15
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
16
Bolts HUS-596240701
...
17
GSPW Nuts HUS-521996502
...
18
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
19
Washers HUS-596917301
...
20
GSPW Washers HUS-596433701
