Husqvarna RZ 4623 - 967009804 (2013-12) Zero Turn: Consumer

Model: RZ 4623 - 967009804 (2013-12)

Back To Assemblies

Save Part Not Listed?
product name

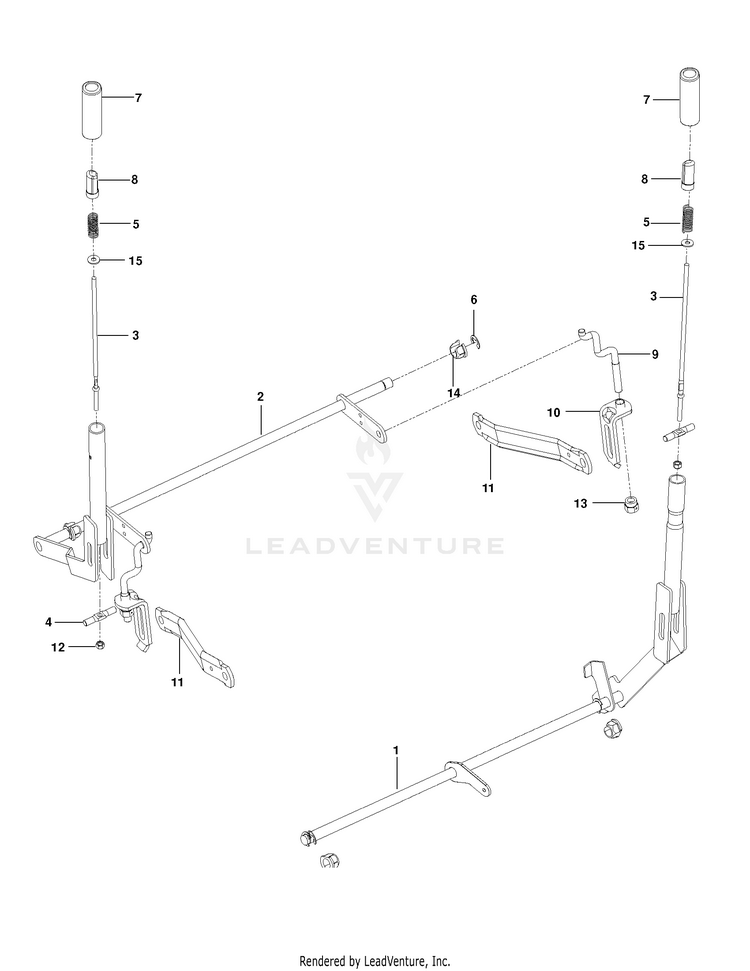

BRAKE / REAR MOWER LIFT

...
...
1
SUBASM.SHAFT.BRAKE.WLDMNT.MED HUS-580435801
...
2
LEVER RZ DECK LIFT WELDMENT DE HUS-586760203
...
3
Rods HUS-510422902
...
4
ROD.LATCH.RELEASE HUS-583629301
...
5
Springs HUS-510030702
...
6
E-RING 5/8 HUS-539105069
...
7
GRIP, HANDLE, BLACK 4" HUS-510207201
...
8
BUTTON, PUSH, BLACK HUS-510207301
...
9
LINK.ASM.RZ.LIFT.SERVICE HUS-587623001
...
10
LINK.ASM.RZ.LIFT.SERVICE HUS-587623001
...
11
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
12
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
13
NUT.LIFT LNK.7/16-2 HUS-589464902
...
14
PLASTIC NUT HUS-510184901
...
15
Washers HUS-596204201
Schematic Image Zoomed
