Husqvarna RZ 4623 - 967009802-02 (2013-05) Zero Turn Mower

Model: RZ 4623 - 967009802-02 (2013-05)

Back To Assemblies

Save Part Not Listed?
product name

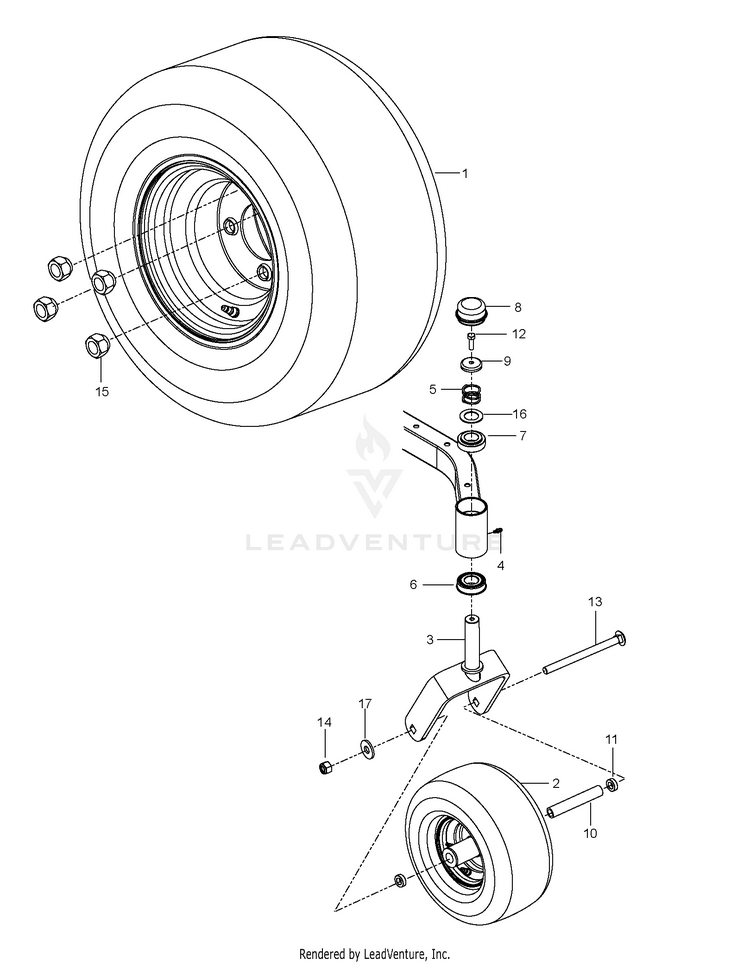

WHEELS & TIRES

...
...
10
SPACER HUS-539105543
...
9
Casters HUS-596301001
...
17
Washers HUS-595316401
...
4
ZERK, 3/16, DRIVE IN HUS-539115638
...
3
YOKE.CASTER.ORANGE HUS-510186505
...
15
Nuts HUS-587653903
...
13
RHSNB 1/2-13 X 6.50 GR2 ZD HUS-539121159
...
11
SPACER 5/16" HUS-581269201
...
5
Casters HUS-596388901
...
6
BEARING FLANGED HUS-539112660
...
12
Screws HUS-596319901
...
7
BUSHING, CASTER HUS-539117901
...
14
NUT 1/2-13 HEX CNTRLK GR 5 ZD HUS-539200100
...
16
Washers HUS-596319801
...
1
WHEEL.ASSEM.18X8.5-8.KENDA.ZTR HUS-581197301
...
8
Caps HUS-595281301
...
2
WHEEL.CARLSTAR.11X4-5".MS417 HUS-590486802
