Husqvarna RZ 4623 - 967009802-02 (2013-05) Zero Turn Mower

Model: RZ 4623 - 967009802-02 (2013-05)

Back To Assemblies

Save Part Not Listed?
product name

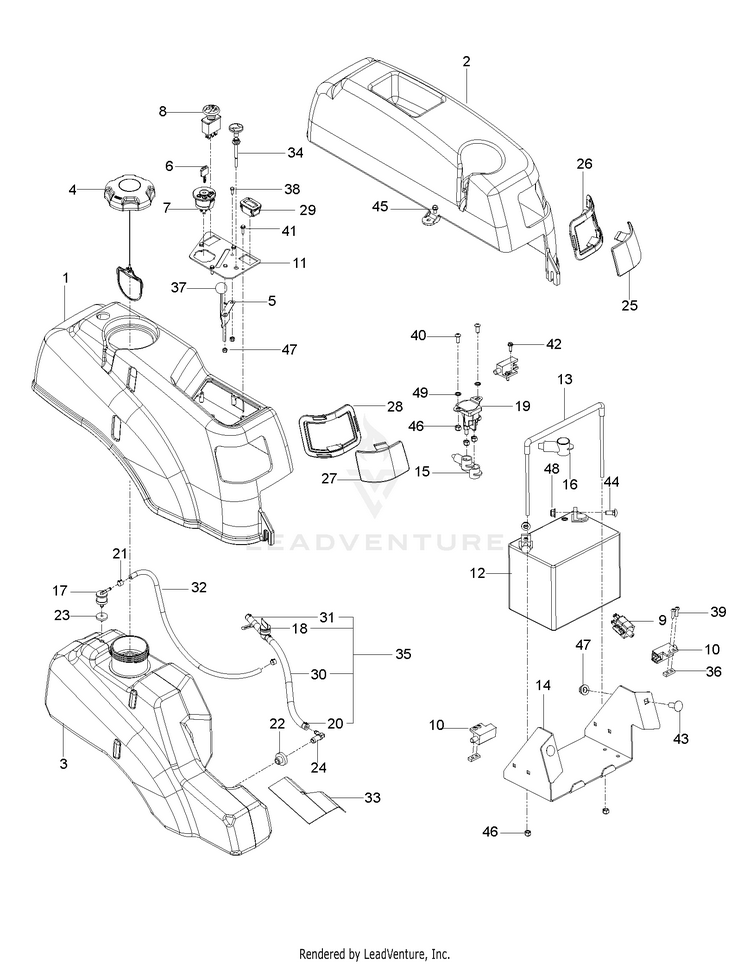

IGNITION SYSTEM

...
...
20
HOSE CLAMP HUS-539912222
...
27
RT HEADLIGHT LENS HUS-539110453
...
43
Bolts HUS-595316801
...
3
FUEL TANK, RZ, 2.25" NECK, 202 HUS-599306304
...
23
GROMMET.CHECK.FUEL HUS-584648201
...
xx
TIE WRAP, 8-3/8", W/CLIP NOT SHOWN HUS-505280001
...
7
IGNITION SWITCH HUS-532175566
...
37
KNOB.ROUND.BALL.BLACK HUS-539133049
...
29
HOUR METER HUS-576179401
...
42
Screws HUS-596584001
...
25
LEFT HEADLIGHT LENS HUS-539110457
...
49
WASHER 1/4 INT TOOTH HUS-539990053
...
18
FUEL VALVE HUS-539916325
...
33
SHIELD, HEAT HUS-522559101
...
28
RT HEADLIGHT RIM GREY HUS-539110451
...
12
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
17
VALVE.FUEL.CHECK HUS-576618101
...
45
BOLT 1/4-20 X 1/2 HWST HUS-539108461
...
14
BOX, BATTERY, BLACK HUS-510231302
...
6
KEY MLD GEN DELTA HUS-532140401
...
30
GAS LINE 10" HUS-539932956
...
38
Screws HUS-596582801
...
19
SOLENOID HUS-539101714
...
15
TERMINAL COVER-SM HUS-539116400
...
10
SWITCH, INTERLOCK HUS-539101080
...
35
FUEL.HOSE.SHUT.OFF.ASM.10".3" HUS-586123904
...
5
THROTTLE HUS-597524002
...
xx
HARNESS.WIRING.RZ NOT SHOWN HUS-581091901
...
1
FENDER RT, GRAY HUS-578178901
...
36
TAPPED PLATE HUS-539102678
...
39
SCR #10-24 X .75 SKT HD BLK HUS-574822701
...
26
LEFT HEADLIGHT RIM GREY HUS-539110455
...
32
HOSE, VAPOR 3/16 X 15" HUS-576660605
...
46
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
xx
BATTERY CABLE, NEGATIVE NOT SHOWN HUS-539110068
...
8
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
48
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
40
Screws HUS-596789701
...
11
CONSOLE.PLATE.BLACK HUS-539112735
...
2
FENDER, LT HUS-539130374
...
9
SWITCH, BRAKE 3P HUS-539113792
...
xx
CABLE BATTERY POS RZ NOT SHOWN HUS-586108201
...
34
CHOKE CONTROL, COMPLETE HUS-539102733
...
41
Screws HUS-596917001
...
44
GSPW Bolts HUS-595901601
...
4
CAP 3.5IN SEALED HUS-575018103
...
16
INSULATOR HUS-539102759
...
47
Hardware HUS-596040801
...
13
BATTERY TIE DOWN ASSEMBLY HUS-539131209
...
22
RUBBER GROMMET HUS-539105245
...
31
FUEL LINE 3" HUS-505215101
...
24
STEM FUEL TANK HUS-532139277
...
21
CLAMP, HOSE HUS-575436501
