Husqvarna RZ 4623 - 967009802-02 (2013-05) Zero Turn Mower

Model: RZ 4623 - 967009802-02 (2013-05)

Back To Assemblies

Save Part Not Listed?
product name

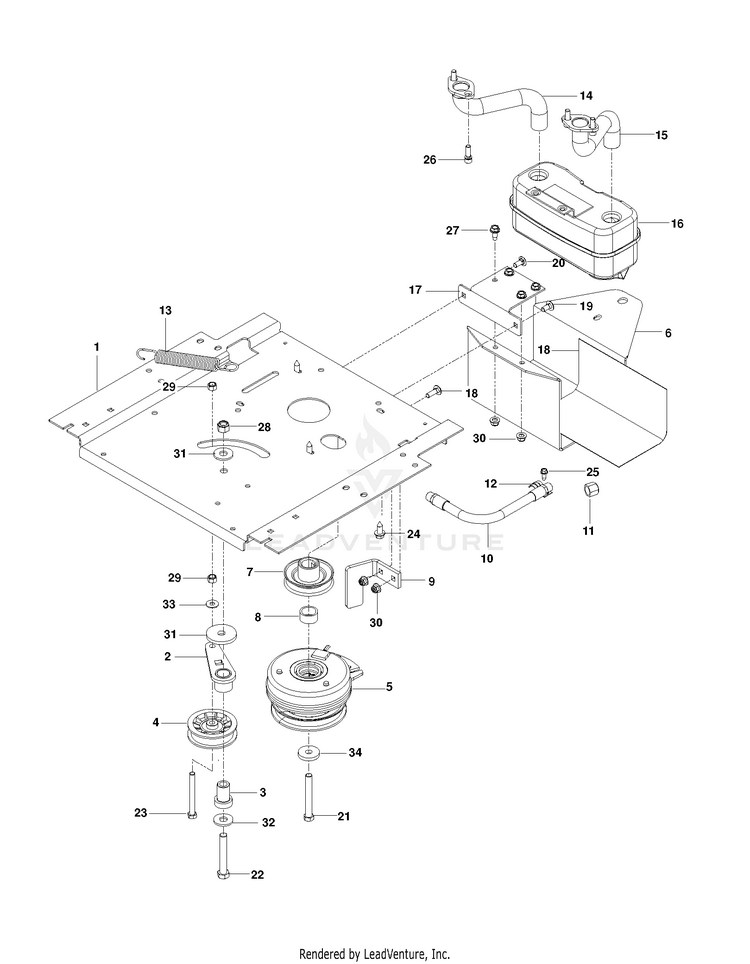

ENGINE MOUNTING, GUARDS & MUFFLER

...
...
13
SPRING BELT TENSIONER BLACK HUS-547878302
...
18
HEAT SHIELD HUS-539132859
...
9
STOP, CLUTCH, BLACK HUS-510246002
...
16
MUFFLER ASM TWIN HUS-539131604
...
5
CLUTCH, 105 FT-LBS HUS-505287301
...
12
CLAMP HUS-539101363
...
34
WASHER HUS-532126197
...
4
PULLEY IDLER, BACKSIDE 3 INCH HUS-531350601
...
29
GSPW Nuts HUS-596240901
...
31
HEAVY WASHER HUS-539112670
...
21
CLUTCH BOLT7/16-20X3.5 GR524HR HUS-581332804
...
32
Washers HUS-595316401
...
22
HCS 1/2C X 3 1/4 HUS-539103433
...
3
IDLER SPINDLE HUS-539101231
...
23
HCS 3/8-16X3 1/2 GR5 HUS-539109389
...
19
Bolts HUS-595901501
...
7
PULLEY.ENGINE HUS-587537401
...
20
GSPW Bolts HUS-595901601
...
28
GSPW NUTS HUS-596135601
...
33
GSPH HUS-596134901
...
6
GUARD, MUFFLER, BLACK HUS-510260502
...
14
PIPE.EXHAUST.RH.CV18/20 HUS-583954801
...
15
PIPE.EXHAUST.LH.CV18/20 HUS-583954501
...
26
Screws HUS-596134202
...
17
BRACKET MUFFLER MS431BLK HUS-581886702
...
25
SCREW 1/4 X 5/8 HUS-539990362
...
27
BOLT 5/16-18 X 3/4 HUS-539107475
...
11
DRAIN CAP HUS-539101364
...
24
SCREW 3/8-16X1 HUS-817120616
...
2
ARM.IDLER HUS-583593901
...
10
OIL DRAIN HOSE HUS-539101362
...
1
ENGINE PLATE RZ HUS-532448161
...
8
Spacers HUS-596401101
...
30
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
