Husqvarna RZ 4623 - 967009802-02 (2013-05) Zero Turn Mower

Model: RZ 4623 - 967009802-02 (2013-05)

Back To Assemblies

Save Part Not Listed?
product name

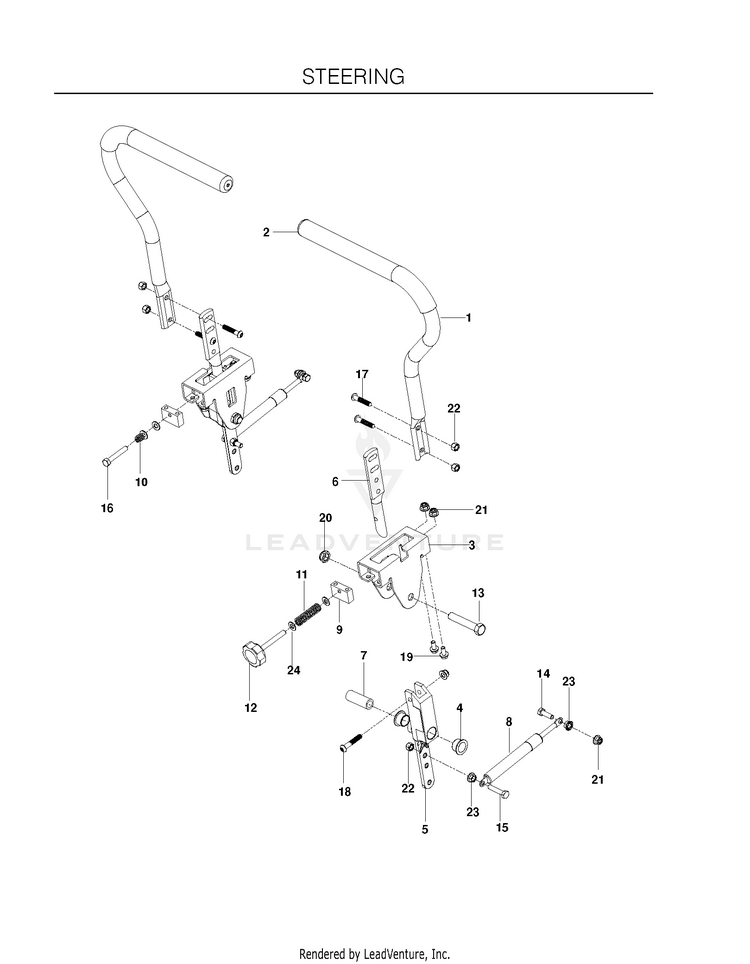

STEERING

...
...
4
BEARING, FLANGE HUS-539131518
...
1
LEVER.ASSY.CTRL.TBE.RZ.HIGHFLT HUS-581826703
...
11
SPRING COMPRESSION 2.0 HUS-576850301
...
5
LEVER CONTROL PIVOT HUS-576140301
...
17
SCREW 5/16-18 X 1 BTN-HD HUS-578296401
...
14
Bolts HUS-596580801
...
23
GSPW Hardware HUS-596039201
...
16
HCS 5/16C X 1 1/4 HUS-539990627
...
22
Nuts HUS-596583702
...
9
BLOCK.TRACKING HUS-577251801
...
12
Knobs HUS-596400701
...
15
Bolts HUS-596582201
...
6
Levers HUS-577420002
...
18
SCREW 5/16-18 X 1 3/4 BTN-HD HUS-576850402
...
10
SPRING HUS-539102845
...
7
SPACER.PIVOT.CONTROL HUS-584927201
...
20
NUT 1/2-13 HEX JM NYL HUS-539108010
...
21
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
24
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
3
BRACKET.CONTROL.NARROWSLOT.BLK HUS-586737202
...
8
DAMPENER HUS-539102720
...
13
HCS 1/2C X 2 3/4 HUS-539101332
...
19
HHFS 5/16-18 X 3/4 HUS-525464701
...
2
TUBE RZ CONTROL LEVER LEFT MS HUS-598851704
