Husqvarna RZ 4623 - 967009801 (2012-01) Zero Turn: Consumer

Model: RZ 4623 - 967009801 (2012-01)

Back To Assemblies

Save Part Not Listed?
product name

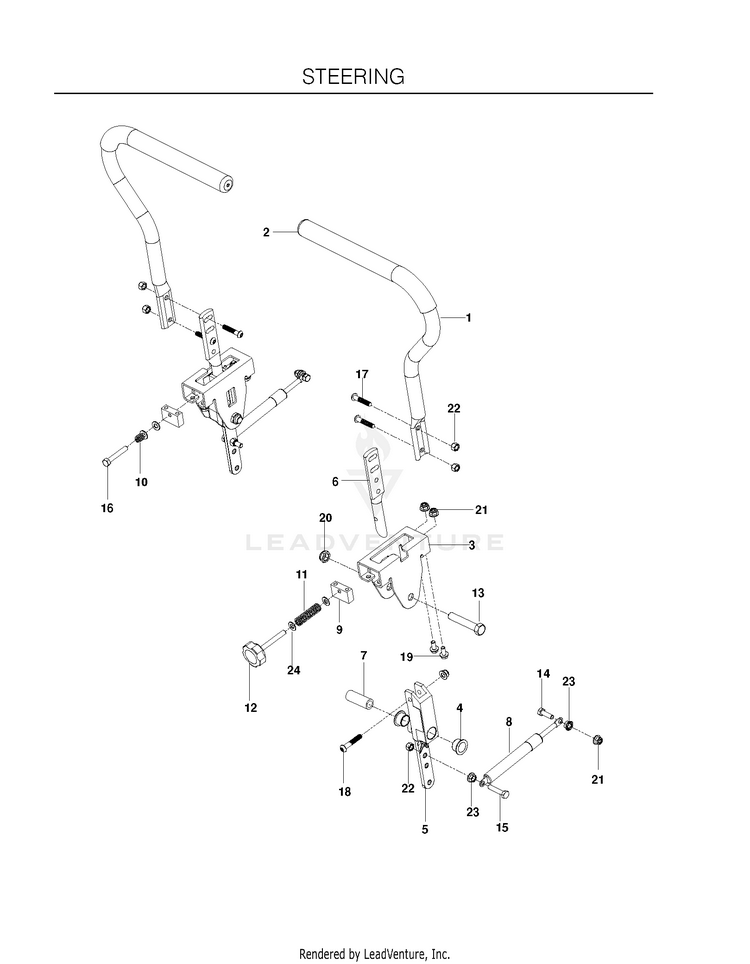

STEERING

...
...
1
LEVER.STEERING.ASM.(W/GRIP) HUS-579036901
...
2
TUBE RZ CONTROL LEVER LEFT MS HUS-598851704
...
3
BRACKET.CONTROL.NARROWSLOT.BLK HUS-586737202
...
4
BEARING, FLANGE HUS-539131518
...
5
LEVER CONTROL PIVOT HUS-576140301
...
6
Levers HUS-577420002
...
7
SPACER.PIVOT.CONTROL HUS-584927201
...
8
DAMPENER HUS-539102720
...
9
BLOCK.TRACKING HUS-577251801
...
10
SPRING HUS-539102845
...
11
SPRING COMPRESSION 2.0 HUS-576850301
...
12
Knobs HUS-596400701
...
13
HCS 1/2C X 2 3/4 HUS-539101332
...
14
Bolts HUS-596580801
...
15
Bolts HUS-596582201
...
16
RING RETAINING INT 2-1/2 HUS-539101469
...
17
SCREW 5/16-18 X 1 BTN-HD HUS-578296401
...
18
SCREW 5/16-18 X 1 3/4 BTN-HD HUS-576850402
...
19
HHFS 5/16-18 X 3/4 HUS-525464701
...
20
NUT 1/2-13 HEX JM NYL HUS-539108010
...
21
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
22
Nuts HUS-596583702
...
23
GSPW Hardware HUS-596039201
...
24
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
