Husqvarna RZ 4622 - 967009806 (2014-04) Zero Turn Mower

Model: RZ 4622 - 967009806 (2014-04)

Back To Assemblies

Save Part Not Listed?
product name

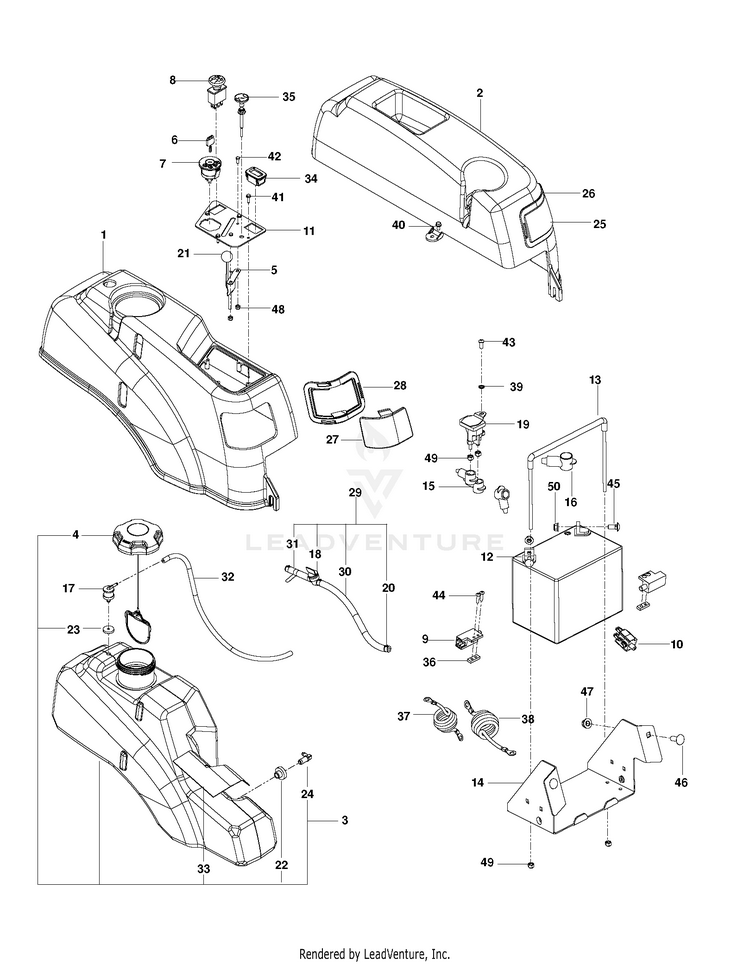

IGNITION SYSTEM

...
...
38
CABLE BATTERY POS RZ HUS-586108201
...
36
Plates HUS-581223002
...
14
BOX BATTERY RZ BLACK HUS-585048702
...
32
HOSE.3/16".VAPOR.LINE.17"LGTH HUS-587044517
...
21
KNOB.ROUND.BALL.BLACK HUS-539133049
...
5
THROTTLE CABLE HUS-539112734
...
49
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
35
CHOKE CABLE HUS-539112439
...
43
Screws HUS-596789701
...
20
HOSE CLAMP HUS-539912222
...
45
GSPW Bolts HUS-595901601
...
11
CONTROL PLATE RZ STD X431 HUS-584254602
...
4
CAP 3.5IN SEALED HUS-575018103
...
33
SHIELD, HEAT HUS-522559101
...
34
GUAGE.SRVCMNDR.HRMTR. HUS-594919101
...
44
SCR #10-24 X .75 SKT HD BLK HUS-574822701
...
16
INSULATOR HUS-539102759
...
12
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
18
FUEL VALVE HUS-539916325
...
40
Screws HUS-596437001
...
47
GSPW Nuts HUS-521996502
...
26
LEFT HEADLIGHT RIM GREY HUS-539110455
...
3
FUEL TANK, RZ, 2.25" NECK, 202 HUS-599306304
...
8
SWITCH.INTRLCK.CLUTCH. HUS-532197802
...
7
IGNITION SWITCH HUS-532175566
...
39
WASHER 1/4 INT TOOTH HUS-539990053
...
29
FUEL.HOSE.SHUT.OFF.ASM.10".3" HUS-586123904
...
19
Solenoids HUS-582042802
...
37
BATTERY CABLE, NEGATIVE HUS-539110068
...
50
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
xx
HARNESS.WIRING.RZ w/ brake switch HUS-585727701
...
28
RT HEADLIGHT RIM GREY HUS-539110451
...
6
KEY MLD GEN DELTA HUS-532140401
...
31
FUEL LINE 3" HUS-505215101
...
25
LEFT HEADLIGHT LENS HUS-539110457
...
15
COVER.TERMINAL.RED HUS-532154336
...
27
RT HEADLIGHT LENS HUS-539110453
...
41
Screws HUS-596917001
...
13
BATTERY TIE DOWN ASSEMBLY HUS-539131209
...
9
SWITCH, INTERLOCK HUS-539101080
...
48
Hardware HUS-596040801
...
2
FENDER, LT HUS-539130374
...
42
Screws HUS-596582801
...
30
GAS LINE 10" HUS-539932956
...
1
FENDER RT, GRAY HUS-578178901
...
23
GROMMET.CHECK.FUEL HUS-584648201
...
17
VALVE.FUEL.CHECK HUS-576618101
...
10
SWITCH, BRAKE 3P HUS-539113792
...
22
RUBBER GROMMET HUS-539105245
...
46
Bolts HUS-596728201
...
24
STEM FUEL TANK HUS-532139277
