Husqvarna RZ 4621 - 967009805 (2013-11) Zero Turn: Consumer

Model: RZ 4621 - 967009805 (2013-11)

Back To Assemblies

Save Part Not Listed?
product name

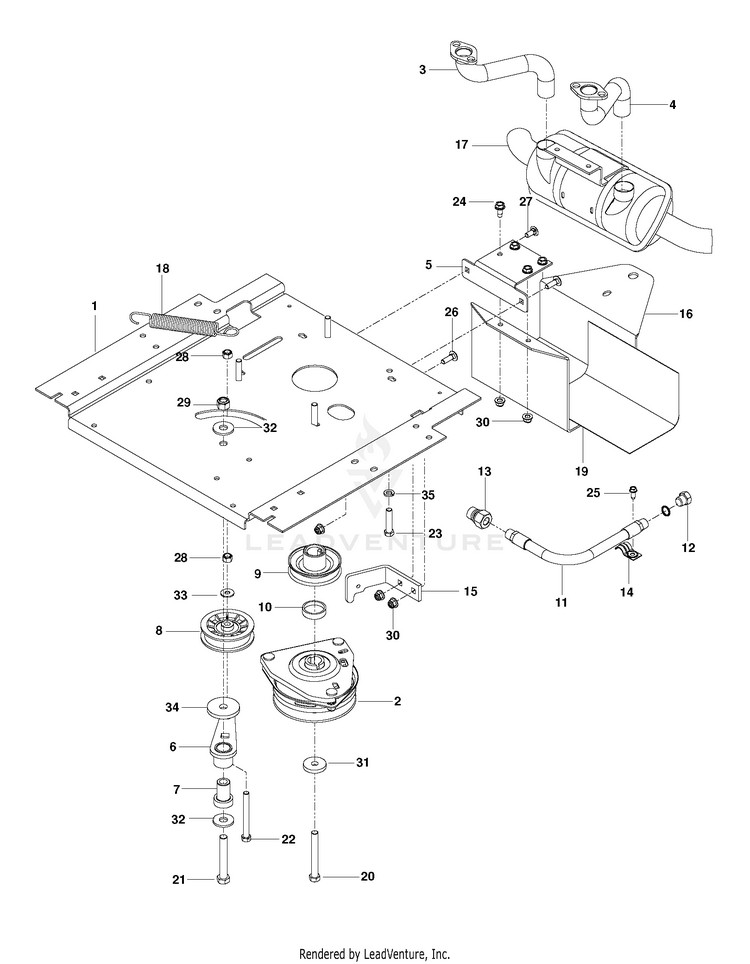

ENGINE MOUNTING, GUARDS & MUFFLER

...
...
33
GSPH HUS-596134901
...
4
EXHAUST PIPE ASM DYAL KAW LT HUS-581726401
...
24
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
32
Washers HUS-595316401
...
9
PULLEY.ENGINE HUS-587537401
...
35
Washers HUS-596238701
...
18
SPRING BELT TENSIONER BLACK HUS-547878302
...
17
MUFFLER OUTLET DUAL RZ HUS-581726301
...
13
ADAPTER HUS-522599003
...
21
Bolts HUS-596435301
...
7
IDLER SPINDLE HUS-539101231
...
xx
KAWASAKI PIGTAIL NOT SHOWN HUS-522598601
...
27
GSPW Bolts HUS-595901601
...
11
HOSE.ASSEMBLY.OIL.DRAIN HUS-584825501
...
20
Bolts HUS-581332806
...
12
PLUG OIL DRAIN HUS-585807101
...
30
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
1
ENGINE PLATE RZ HUS-532448161
...
34
HEAVY WASHER HUS-539112670
...
19
HEAT SHIELD HUS-539132859
...
28
GSPW Nuts HUS-596240901
...
22
Screws HUS-596433901
...
5
BRACKET MUFFLER MS431BLK HUS-581886702
...
29
GSPW NUTS HUS-596135601
...
23
Bolts HUS-596918101
...
16
GUARD.MUFFLER.WO.TOW.HITCHX431 HUS-587451202
...
26
Bolts HUS-595901501
...
6
ARM.IDLER HUS-583593901
...
14
CLAMP HUS-539101363
...
10
SPACER, HUB PULLEY HUS-577094601
...
8
PULLEY IDLER, BACKSIDE 3 INCH HUS-531350601
...
15
CLUTCH.STOP.OGURA LCC.BLACK HUS-587633302
...
25
SCREW 1/4 X 5/8 HUS-539990362
...
31
WASHER HUS-532126197
...
3
EXHAUST PIPE ASM DUAL KAW RT HUS-581726501
...
2
KIT.SVC.CLUTCH.ELECTRIC. HUS-532414336
Schematic Image Zoomed
