Husqvarna RZ 4621 - 967009805 (2013-11) Zero Turn: Consumer

Model: RZ 4621 - 967009805 (2013-11)

Back To Assemblies

Save Part Not Listed?
product name

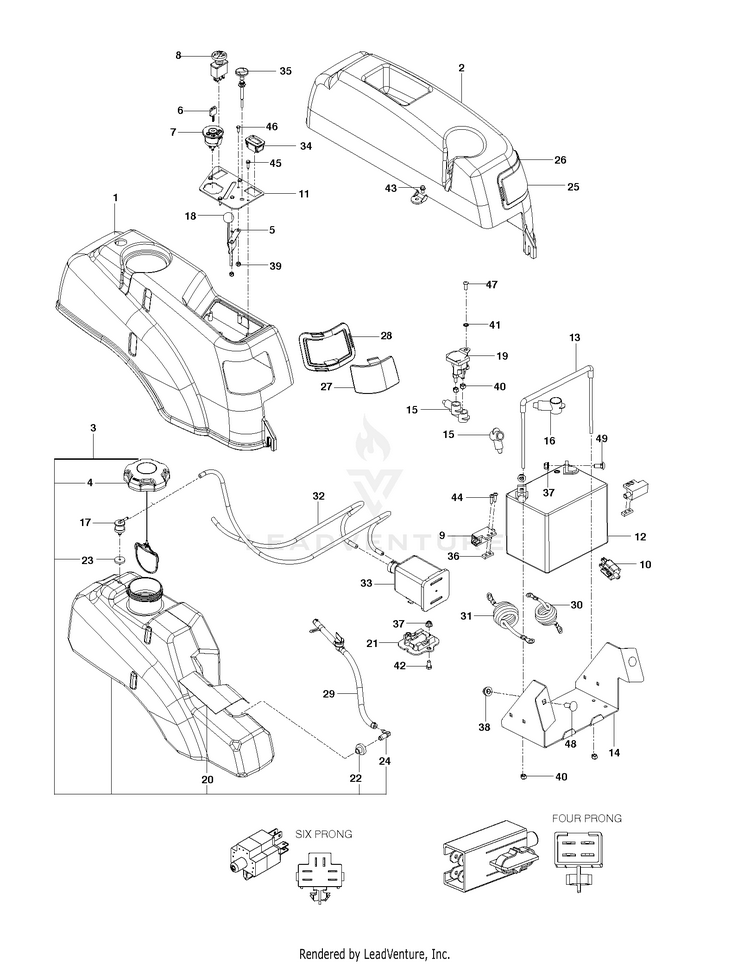

IGNITION SYSTEM

...
...
5
THROTTLE CABLE HUS-539112734
...
31
BATTERY CABLE, NEGATIVE HUS-539110068
...
24
STEM FUEL TANK HUS-532139277
...
38
GSPW Nuts HUS-521996502
...
44
SCR #10-24 X .75 SKT HD BLK HUS-574822701
...
14
BOX, BATTERY, BLACK HUS-510231302
...
17
VALVE.FUEL.CHECK HUS-576618101
...
19
Solenoids HUS-582042802
...
xx
HARNESS.WIRING.RZ W/ 4 PRONG SWITCH HUS-585727701
...
40
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
18
FUEL VALVE HUS-539916325
...
30
CABLE BATTERY POS RZ HUS-586108201
...
20
SHIELD, HEAT HUS-522559101
...
2
FENDER, LT HUS-539130374
...
xx
HARNESS.KIT.RZ.581091901 KIT - HARNESS AND SWITCH HUS-586352601
...
48
Bolts HUS-596728201
...
49
GSPW Bolts HUS-595901601
...
16
INSULATOR HUS-539102759
...
13
BATTERY TIE DOWN ASSEMBLY HUS-539131209
...
21
BRACKET, CANISTER HUS-575242701
...
8
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
43
Screws HUS-596437001
...
45
Screws HUS-596917001
...
4
CAP 3.5IN SEALED HUS-575018103
...
23
GROMMET.CHECK.FUEL HUS-584648201
...
36
TAPPED PLATE HUS-539102678
...
32
HOSE, FUEL 3/16" X 42" HUS-575437801
...
9
SWITCH, INTERLOCK HUS-539101080
...
42
Screws HUS-596031601
...
47
Screws HUS-596789701
...
37
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
39
Hardware HUS-596040801
...
18
KNOB.ROUND.BALL.BLACK HUS-539133049
...
34
GUAGE.SRVCMNDR.HRMTR. HUS-594919101
...
6
KEY MLD GEN DELTA HUS-532140401
...
27
RT HEADLIGHT LENS HUS-539110453
...
29
ASSEMBLY, FUEL LINE, KAW HUS-576660702
...
10
SWITCH, BRAKE 3P SIX PRONG HUS-539113792
...
12
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
35
CHOKE CABLE HUS-539112439
...
11
CONTROL PLATE RZ STD X431 HUS-584254602
...
15
TERMINAL COVER-SM HUS-539116400
...
46
Screws HUS-596582801
...
7
IGNITION SWITCH HUS-532175566
...
26
LEFT HEADLIGHT RIM GREY HUS-539110455
...
22
RUBBER GROMMET HUS-539105245
...
1
FENDER RT, GRAY HUS-578178901
...
33
WASHER 1/4 INT TOOTH HUS-539990053
...
3
FUEL TANK, RZ, 2.25" NECK, 202 HUS-599306304
...
25
LEFT HEADLIGHT LENS HUS-539110457
...
28
RT HEADLIGHT RIM GREY HUS-539110451
...
41
WASHER 1/4 INT TOOTH HUS-539990053
...
xx
SWITCH.INTRLCK.CLUTCH. FOUR PRONG HUS-532197802
