Husqvarna RZ 4621 - 967009803 (2013-08) Zero Turn: Consumer

Model: RZ 4621 - 967009803 (2013-08)

Back To Assemblies

Save Part Not Listed?
product name

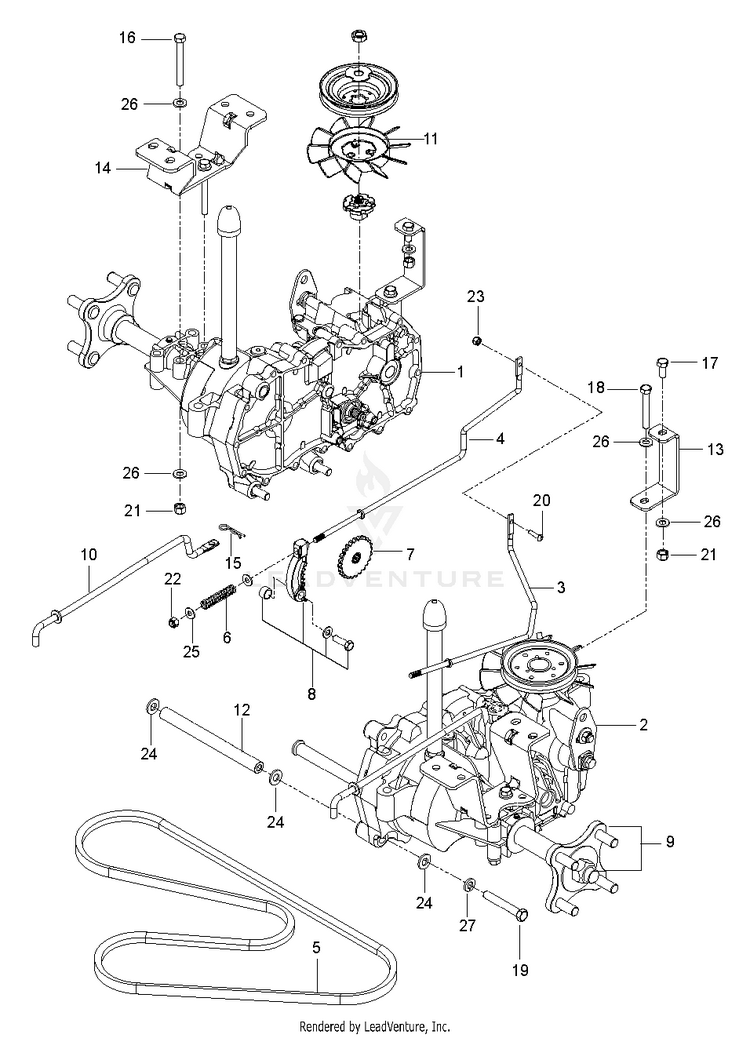

HYDRAULIC PUMP - MOTOR

...
...
15
Pins HUS-596580601
...
1
HG_EZT, LT HUS-510375601
...
20
SCR #10-24 X 3/4 HUS-539108535
...
24
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
10
Links HUS-522941102
...
23
Hardware HUS-596040801
...
21
Hardware HUS-596040501
...
18
Bolts HUS-596434801
...
8
HG_KIT BRAKE ARM (EZT) HUS-539120079
...
2
HG_EZT, RT HUS-510375602
...
6
Springs HUS-596299801
...
27
Washers HUS-596238701
...
26
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
22
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
5
BELT, HYDRO PUMP HUS-539110411
...
3
Links HUS-596930401
...
16
Bolts HUS-596218601
...
14
BRACKET.EZT.MOUNT.REAR.PNTX431 HUS-580806602
...
11
HG_HYDRO FAN 51365 HUS-539120785
...
4
Links HUS-596930701
...
19
Bolts HUS-596434201
...
12
Spacers HUS-593852803
...
25
Washers HUS-596582301
...
17
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
9
HG_KIT, HYDRO-GEAR HUB HUS-575507001
...
7
HG_DISC COG BRAKE 51635 HUS-539120080
...
13
SUPPORT.FRONT.TRANS.PNTX431 HUS-580806502
