Husqvarna RZ 4621 - 967009803 (2013-08) Zero Turn: Consumer

Model: RZ 4621 - 967009803 (2013-08)

Back To Assemblies

Save Part Not Listed?
product name

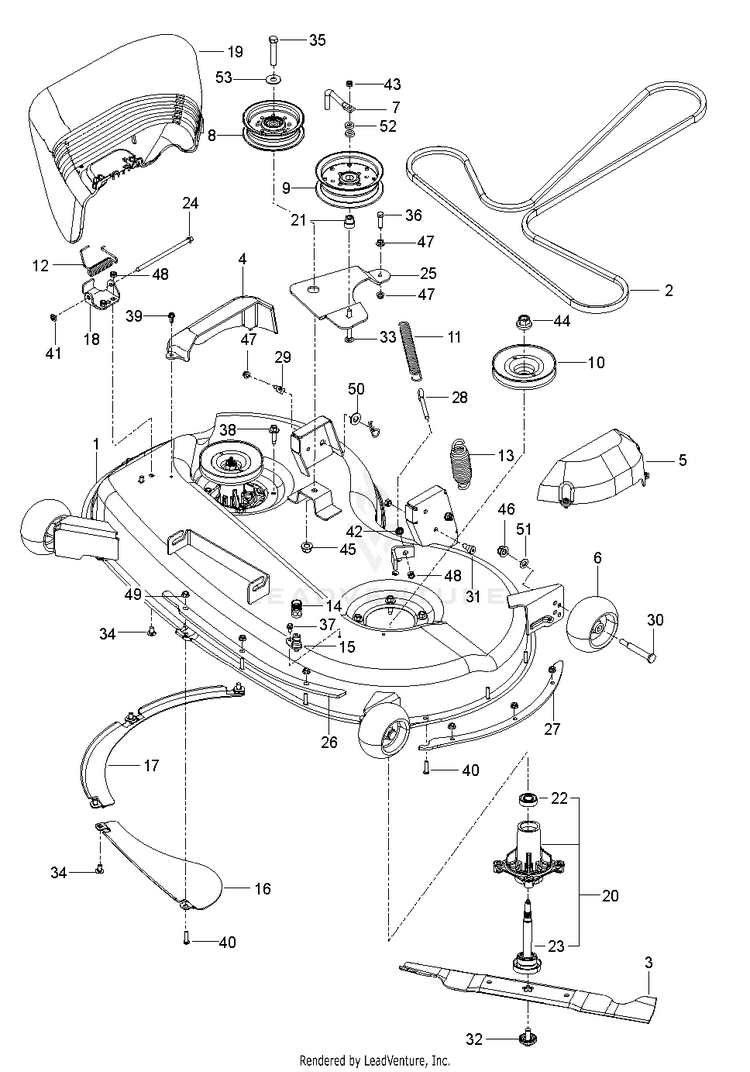

MOWER DECK / CUTTING DECK

...
...
25
ARM CLUTCHING 46" RZ ARM CLUTC HUS-594036203
...
52
WASHER 3/8 X 3/4 X .187 TK HUS-539109562
...
18
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
35
Bolts HUS-596435201
...
13
Springs HUS-596482001
...
22
BEARING.MANDREL.TOP.EXTENDED HUS-585323901
...
44
Nuts HUS-596134801
...
33
BOLT CARRIAGE HUS-872110618
...
2
V-BELT HUS-539117245
...
26
PLATE.PNT.REINF.DECK.46".EDIP HUS-501063502
...
8
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
7
Keepers HUS-522629702
...
38
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
53
Washers HUS-596437601
...
9
Pulleys HUS-589766102
...
41
NUT PUSH M HUS-532110452
...
46
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
17
SERVICE KIT BAFFLE FRONT HUS-531170701
...
42
GSPW Hardware HUS-596039201
...
31
Bolts HUS-596241101
...
12
TORSION SPRING HUS-539107609
...
27
PLATE.REINFOR.46.SIDEBOLT.X431 HUS-585317805
...
50
Washers HUS-596320001
...
28
GSPW Bolts HUS-596240801
...
16
SERVICE KIT BAFFLE CENT HUS-531170601
...
4
COVER.MANDREL.RH.46" HUS-532405506
...
15
PORT.WASHOUT HUS-532415598
...
19
SHIELD.DEFLECTOR.MOWER.46"BLAC HUS-532405357
...
40
Screws HUS-578296405
...
10
PULLEY.MANDREL.46" HUS-588586601
...
47
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
34
GSPW Bolts HUS-595901601
...
24
Rods HUS-595297001
...
6
WHEEL.GAUGE.RALLY HUS-589527301
...
36
Screws HUS-595305701
...
48
Hardware HUS-596040501
...
21
Bushings HUS-596790301
...
45
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
32
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
51
GSPH HUS-596134901
...
39
SCREW.1/4-20X5/8 HUS-532137729
...
11
SPRING.EXTENSION HUS-582504001
...
23
MANDREL.W/SPCR.BRG.SHRT.NONRVL HUS-587125201
...
30
Bolts HUS-596434404
...
37
Screws HUS-596584001
...
43
Nuts HUS-596230801
...
14
COUPLING.QUICK CONNECT HUS-532416405
...
1
Decks w/ SAFETY DECALS HUS-598727201
...
3
46" HIGH LIFT BLADE HUS-594892801
...
5
Covers HUS-597683301
...
29
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
20
MANDREL.W/SPCR.BRG.SHRT.NONRVL HUS-587125201
...
49
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
