Husqvarna RZ 4619 - 965921501-01 (2011-01) Zero Turn Mower

Model: RZ 4619 - 965921501-01 (2011-01)

Back To Assemblies

Save Part Not Listed?
product name

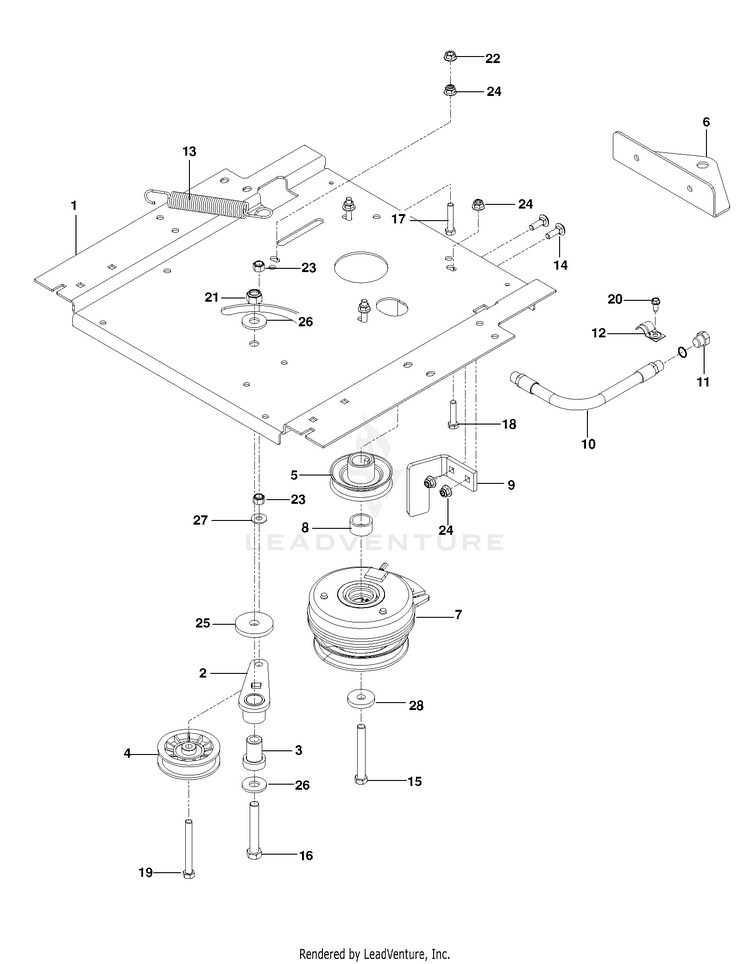

ENGINE PLATE

...
...
24
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
11
PLUG OIL DRAIN HUS-585807101
...
26
Washers HUS-595316401
...
22
GSPW Hardware HUS-596039201
...
7
CLUTCH.105.FT-LBS HUS-585521101
...
9
STOP, CLUTCH, BLACK HUS-510246002
...
28
WASHER HUS-532126197
...
20
SCREW 1/4 X 5/8 HUS-539990362
...
4
PULLEY IDLER, BACKSIDE 3 INCH HUS-531350601
...
27
GSPH HUS-596134901
...
2
ARM.IDLER HUS-583593901
...
10
HOSE.ASSEMBLY.OIL.DRAIN HUS-584825501
...
21
GSPW NUTS HUS-596135601
...
25
HEAVY WASHER HUS-539112670
...
5
PULLEY.ENGINE HUS-587537401
...
13
SPRING BELT TENSIONER BLACK HUS-547878302
...
17
SCREW HUS-874780528
...
18
Bolts HUS-596582201
...
3
IDLER SPINDLE HUS-539101231
...
6
HITCH, BLACK HUS-516011802
...
1
ENGINE PLATE RZ HUS-532448161
...
8
Spacers HUS-596401101
...
23
GSPW Nuts HUS-596240901
...
19
HCS 3/8-16X3 1/2 GR5 HUS-539109389
...
12
CLAMP HUS-539101363
...
xx
NEEDS DESCRIPTION NOT SHOWN HUS-584267601
...
14
Bolts HUS-595901501
...
15
CLUTCH BOLT7/16-20X3.5 GR524HR HUS-581332804
...
16
HCS 1/2C X 3 1/4 HUS-539103433
