Husqvarna RZ 4221 BF (967036502) Zero Turn Mower

Model: RZ 4221 BF (967036502)

Back To Assemblies

Save Part Not Listed?
product name

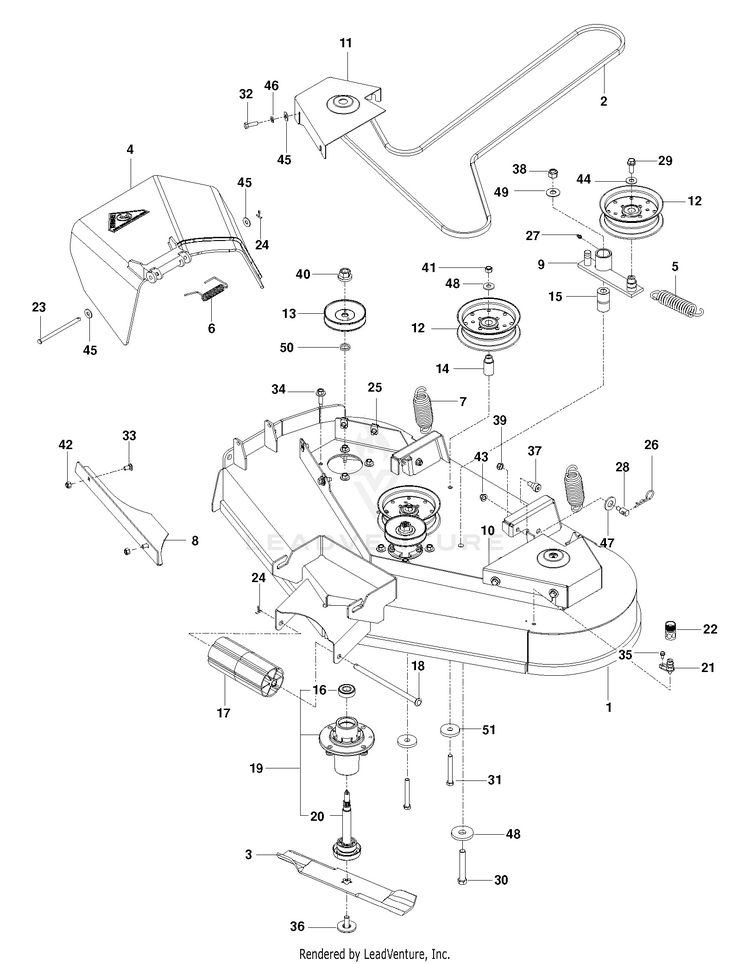

MOWER DECK / CUTTING DECK

...
...
3
BLADE, 14 5/8" HUS-539112078
...
44
GSPW Washers HUS-596433701
...
48
Washers HUS-596437501
...
14
Bushings HUS-596841501
...
18
Rods HUS-594092501
...
51
Washers HUS-596770301
...
8
CONFINEMENT.PLATE.42".BLACK HUS-539112413
...
22
COUPLING.QUICK CONNECT HUS-532416405
...
5
SPRING HUS-539103256
...
35
Screws HUS-596437001
...
50
WASHER.SPACER.MANDREL HUS-532187690
...
15
PIVOT BUSHING HUS-539103427
...
16
BEARING HUS-532110485
...
30
HCS 1/2C X 3 1/4 HUS-539103433
...
19
MANDREL.DECK.ASSEMBLY HUS-539112170
...
28
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
10
BELT SHIELD, LEFT 42, ORG HUS-539112240
...
39
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
36
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
24
Pins HUS-596029501
...
34
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
11
BELT SHIELD, RIGHT 42, ORG HUS-539112238
...
38
GSPW NUTS HUS-596135601
...
17
NOSE ROLLER 48" HUS-532176066
...
46
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
37
Bolts HUS-596241101
...
25
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
20
MANDRELS HUS-597023501
...
43
Nuts HUS-596230801
...
29
Screws HUS-596583101
...
9
IDLER ARM HUS-539112198
...
42
Hardware HUS-596040501
...
13
PULLEY, MADREL 3.70 OP HUS-525348501
...
45
GSPH HUS-596134901
...
40
Nuts HUS-596134801
...
47
Washers HUS-596320001
...
21
PORT.WASHOUT HUS-532415598
...
33
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
12
Pulleys HUS-589766102
...
4
DISCHARGE CHUTE 42" HUS-539110731
...
27
GSPW Zerks HUS-596899901
...
1
DECK SVC W/DECALS 42 RZ ORANGE SAFETY DECALS HUS-574761802
...
2
V-BELT HUS-539117245
...
32
Bolts HUS-596580801
...
6
Springs HUS-596646001
...
31
Bolts HUS-596564405
...
49
Washers HUS-595316401
...
41
GSPW Nuts HUS-596240901
...
26
Pins HUS-596273101
...
23
Pins HUS-595935501
...
7
Springs HUS-596482001
