Husqvarna RZ 4221 BF (967036502) Zero Turn Mower

Model: RZ 4221 BF (967036502)

Back To Assemblies

Save Part Not Listed?
product name

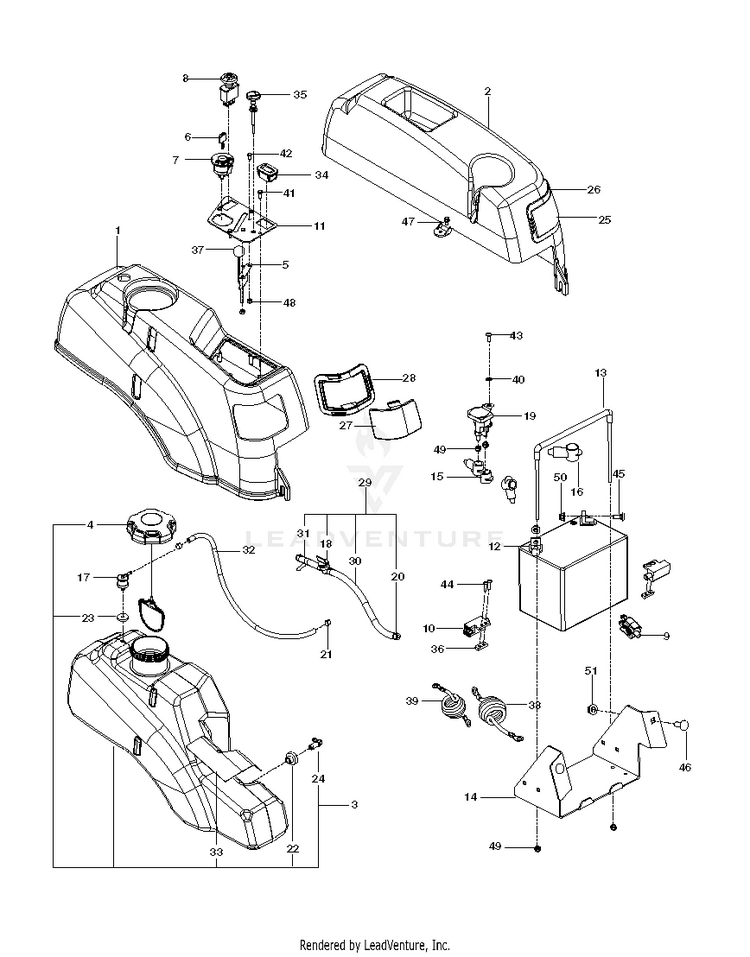

IGNITION SYSTEM

...
...
37
KNOB.ROUND.BALL.BLACK HUS-539133049
...
41
Screws HUS-596917001
...
5
THROTTLE CABLE HUS-539112734
...
11
CONSOLE.PLATE.BLACK HUS-539112735
...
47
BOLT 1/4-20 X 1/2 HWST HUS-539108461
...
38
CABLE BATTERY POS RZ HUS-586108201
...
xx
HARNESS.KIT.RZ.581091901 KIT - HARNESS AND SWITCH HUS-586352601
...
8
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
10
SWITCH, INTERLOCK HUS-539101080
...
1
FENDER RT, GRAY HUS-578178901
...
30
GAS LINE 10" HUS-539932956
...
16
INSULATOR HUS-539102759
...
15
TERMINAL COVER-SM HUS-539116400
...
50
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
48
Hardware HUS-596040801
...
46
Bolts HUS-595316801
...
3
FUEL TANK, RZ, 2.25" NECK, 202 HUS-599306304
...
20
HOSE CLAMP HUS-539912222
...
4
CAP 3.5IN SEALED HUS-575018103
...
36
TAPPED PLATE HUS-539102678
...
14
BOX, BATTERY, BLACK HUS-510231302
...
xx
SWITCH.INTRLCK.CLUTCH. FOUR PRONG HUS-532197802
...
21
CLAMP, HOSE HUS-575436501
...
40
WASHER 1/4 INT TOOTH HUS-539990053
...
31
FUEL LINE 14" HUS-539104993
...
49
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
13
BATTERY TIE DOWN ASSEMBLY HUS-539131209
...
xx
HARNESS.WIRING.RZ W/ 4 PRONG SWITCH HUS-585727701
...
17
VALVE.FUEL.CHECK HUS-576618101
...
23
GROMMET.CHECK.FUEL HUS-584648201
...
45
GSPW Bolts HUS-595901601
...
51
GSPW Nuts HUS-521996502
...
43
Screws HUS-596789701
...
44
SCR #10-24 X .75 SKT HD BLK HUS-574822701
...
12
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
39
BATTERY CABLE, NEGATIVE HUS-539110068
...
19
Solenoids HUS-582042802
...
7
IGNITION SWITCH HUS-532175566
...
24
STEM FUEL TANK HUS-532139277
...
9
SWITCH, BRAKE 3P SIX PRONG HUS-539113792
...
28
RT HEADLIGHT RIM GREY HUS-539110451
...
35
CHOKE CABLE HUS-539112439
...
6
KEY MLD GEN DELTA HUS-532140401
...
27
RT HEADLIGHT LENS HUS-539110453
...
22
RUBBER GROMMET HUS-539105245
...
42
Screws HUS-596582801
...
18
FUEL VALVE HUS-539916325
...
25
LEFT HEADLIGHT LENS HUS-539110457
...
34
GUAGE.SRVCMNDR.HRMTR. HUS-594919101
...
29
ASSEMBLY, FUEL LINE, KAW HUS-576660702
...
26
LEFT HEADLIGHT RIM GREY HUS-539110455
...
33
SHIELD, HEAT HUS-522559101
...
2
FENDER, LT HUS-539130374
...
32
HOSE, VAPOR 3/16 X 48" HUS-576660602
