Husqvarna RZ 4221 BF (967036502) Zero Turn Mower

Model: RZ 4221 BF (967036502)

Back To Assemblies

Save Part Not Listed?
product name

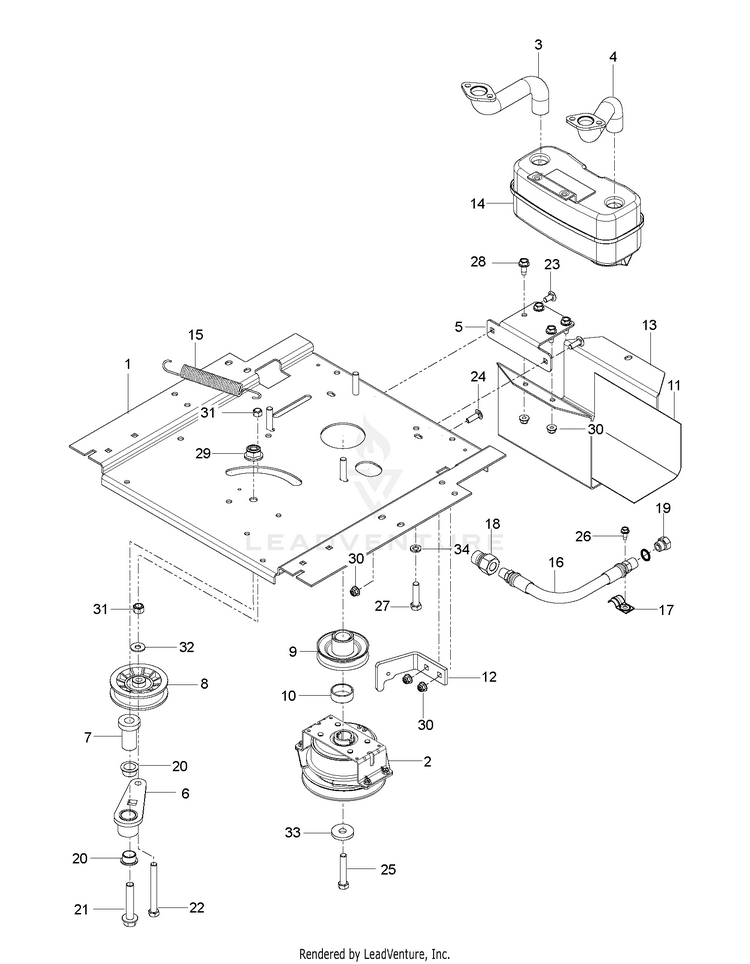

ENGINE MOUNTING, GUARDS & MUFFLER

...
...
22
Screws HUS-596433901
...
19
PLUG OIL DRAIN HUS-585807101
...
21
Bolts HUS-582539502
...
xx
KIT.ARM.IDLER.RZ HUS-589543901
...
24
Bolts HUS-595901501
...
23
GSPW Bolts HUS-595901601
...
10
SPACER.SPACER.625 W/OGURA.LCC HUS-587660101
...
28
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
14
MUFFLER ASM TWIN HUS-539131604
...
xx
Engine, Kawasaki FX691V 23 HP. For engine replacement parts, see a Kawasaki dealer. HUS-000000000
...
26
Screws HUS-596637301
...
1
PLATE ENGINE; RZ, 23IN BLACK HUS-593898602
...
4
TUBE.EXHAUST.LH.FR961/FR730 HUS-583955601
...
18
ADAPTER HUS-522599003
...
3
TUBE.EXHAUST.RH.FR961/FR730 HUS-583955701
...
27
BOLT HUS-874760620
...
33
WASHER HUS-532126197
...
34
Washers HUS-596238701
...
2
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 HUS-587241601
...
17
CLAMP HUS-539101363
...
9
PULLEY.ENGINE HUS-587537401
...
30
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
8
PULLEY IDLER, BACKSIDE 3 INCH HUS-531350601
...
11
HEAT SHIELD HUS-539132859
...
29
NUT 1/2-13 HEX FLANGE NYLOK CL HUS-521991102
...
20
BEARING.FLANGED.PLASTIC.3/4ID HUS-501603701
...
15
SPRING BELT TENSIONER BLACK HUS-547878302
...
16
HOSE.ASSEMBLY.OIL.DRAIN HUS-584825501
...
31
GSPW Nuts HUS-596240901
...
5
BRACKET MUFFLER MS431BLK HUS-581886702
...
xx
KAWASAKI PIGTAIL HUS-522598601
...
12
CLUTCH.STOP.OGURA LCC.BLACK HUS-587633302
...
7
SPINDLE.IDLER HUS-582538902
...
25
CLUTCH BOLT7/16-20X3.5 GR524HR HUS-581332804
...
13
GUARD.MUFFLER.WO.TOW.HITCHX431 HUS-587451202
...
32
GSPH HUS-596134901
...
6
ARM.IDLER HUS-583593901
