Husqvarna RZ 4221 BF - 967036502 Zero Turn: Consumer

Model: RZ 4221 BF - 967036502

Back To Assemblies

Save Part Not Listed?

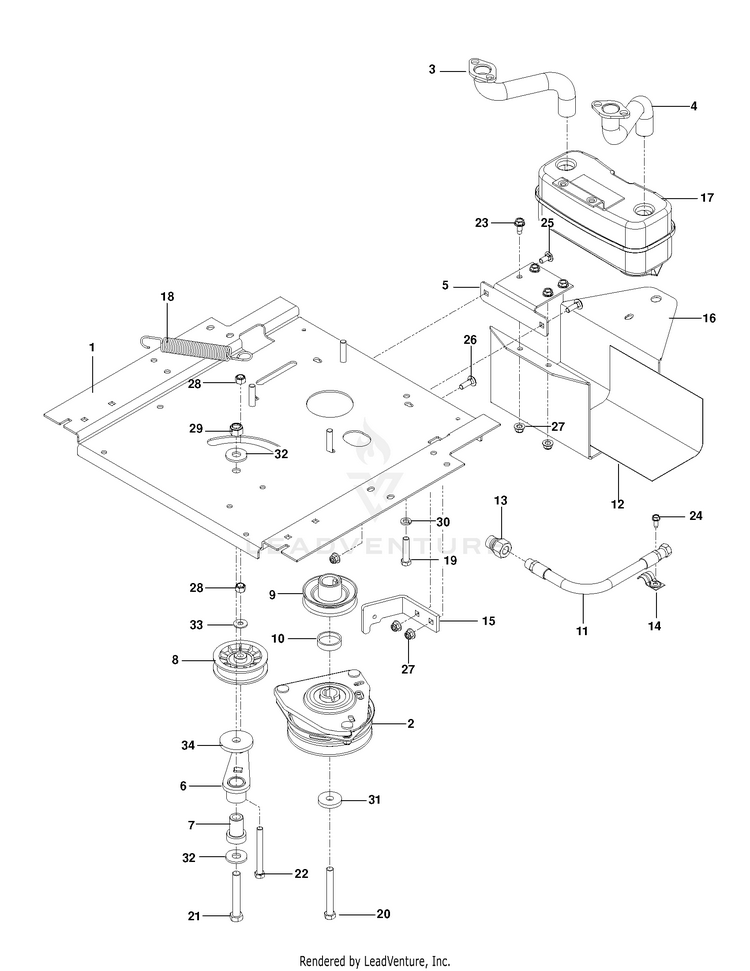

product name

ENGINE PLATE

...
...
1
ENGINE PLATE RZ HUS-532448161
...
2
KIT.SVC.CLUTCH.ELECTRIC. HUS-532414336
...
3
EXHAUST PIPE ASM DUAL KAW RT HUS-581726501
...
4
EXHAUST PIPE ASM DYAL KAW LT HUS-581726401
...
5
BRACKET MUFFLER MS431BLK HUS-581886702
...
6
ARM.IDLER HUS-583593901
...
7
IDLER SPINDLE HUS-539101231
...
8
PULLEY IDLER, BACKSIDE 3 INCH HUS-531350601
...
9
PULLEY.ENGINE HUS-587537401
...
10
SPACER, HUB PULLEY HUS-577094601
...
11
HOSE.ASSEMBLY.OIL.DRAIN HUS-584825501
...
12
HEAT SHIELD HUS-539132859
...
13
ADAPTER HUS-522599003
...
14
CLAMP HUS-539101363
...
15
CLUTCH.STOP.OGURA LCC.BLACK HUS-587633302
...
16
GUARD.MUFFLER.WO.TOW.HITCHX431 HUS-587451202
...
17
MUFFLER OUTLET DUAL RZ HUS-581726301
...
18
SPRING BELT TENSIONER BLACK HUS-547878302
...
19
Bolts HUS-596918101
...
20
Bolts HUS-581332806
...
21
HCS 1/2C X 3 1/4 HUS-539103433
...
22
HCS 3/8-16X3 1/2 GR5 HUS-539109389
...
23
BOLT 5/16-18 X 3/4 HUS-539107475
...
24
SCREW 1/4 X 5/8 HUS-539990362
...
25
Bolts HUS-595901501
...
26
GSPW Bolts HUS-595901601
...
27
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
28
GSPW Nuts HUS-596240901
...
29
GSPW NUTS HUS-596135601
...
30
Washers HUS-596238701
...
31
WASHER HUS-532126197
...
32
Washers HUS-595316401
...
33
GSPH HUS-596134901
...
34
HEAVY WASHER HUS-539112670
...
xx
PIGTAIL.MATNLK.OLD.HARN NOT SHOWN HUS-532198316
...
xx
KAWASAKI PIGTAIL NOT SHOWN HUS-522598601
