Husqvarna RZ 4219 - 966809002 (2013-10) Zero Turn: Consumer

Model: RZ 4219 - 966809002 (2013-10)

Back To Assemblies

Save Part Not Listed?
product name

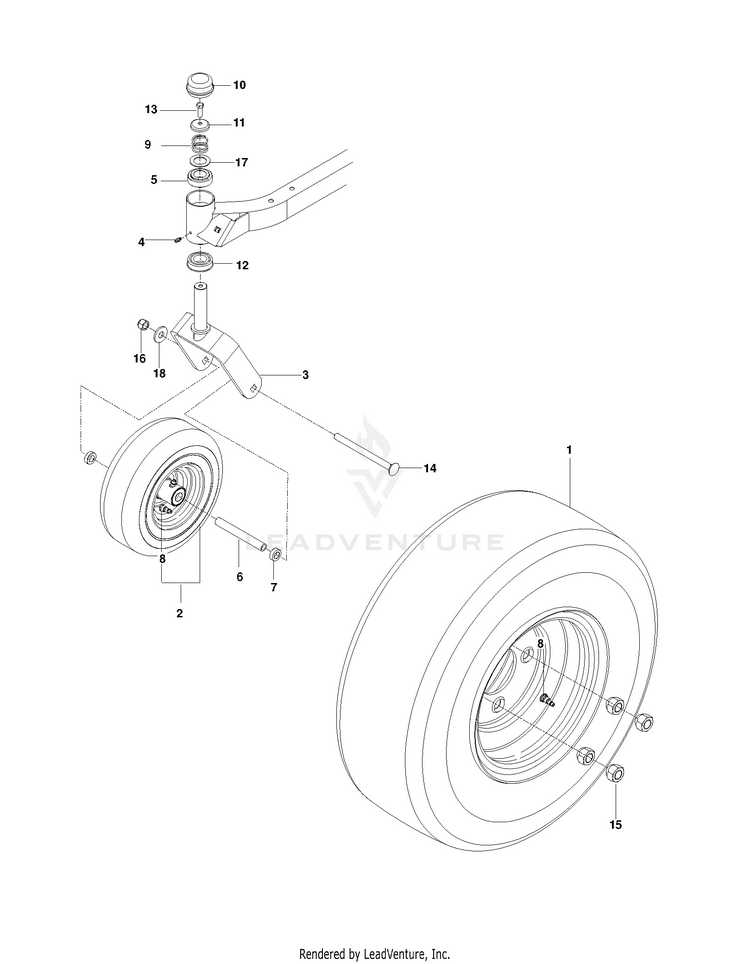

WHEELS TIRES

...
...
1
WHEEL.18X7.50-8.K500.8X5.375 HUS-581197901
...
2
WHEEL.CARLSTAR.11X4-5".MS417 HUS-590486802
...
3
YOKE.CASTER.ORANGE HUS-510186505
...
4
ZERK, 3/16, DRIVE IN HUS-539115638
...
5
BUSHING, CASTER HUS-539117901
...
6
SPACER HUS-539105543
...
7
SPACER, 5/16" HUS-539114805
...
8
VALVE STEM TR-412 HUS-539912234
...
9
Casters HUS-596388901
...
10
Caps HUS-595281301
...
11
Casters HUS-596301001
...
12
BEARING FLANGED HUS-539112660
...
13
Screws HUS-596319901
...
14
RHSNB 1/2-13 X 6.50 GR2 ZD HUS-539121159
...
15
Nuts HUS-587653903
...
16
NUT 1/2-13 HEX CNTRLK GR 5 ZD HUS-539200100
...
17
Washers HUS-596319801
...
18
Washers HUS-595316401
