Husqvarna RZ 4219 - 966809001 (2012-02) Zero Turn Mower

Model: RZ 4219 - 966809001 (2012-02)

Back To Assemblies

Save Part Not Listed?
product name

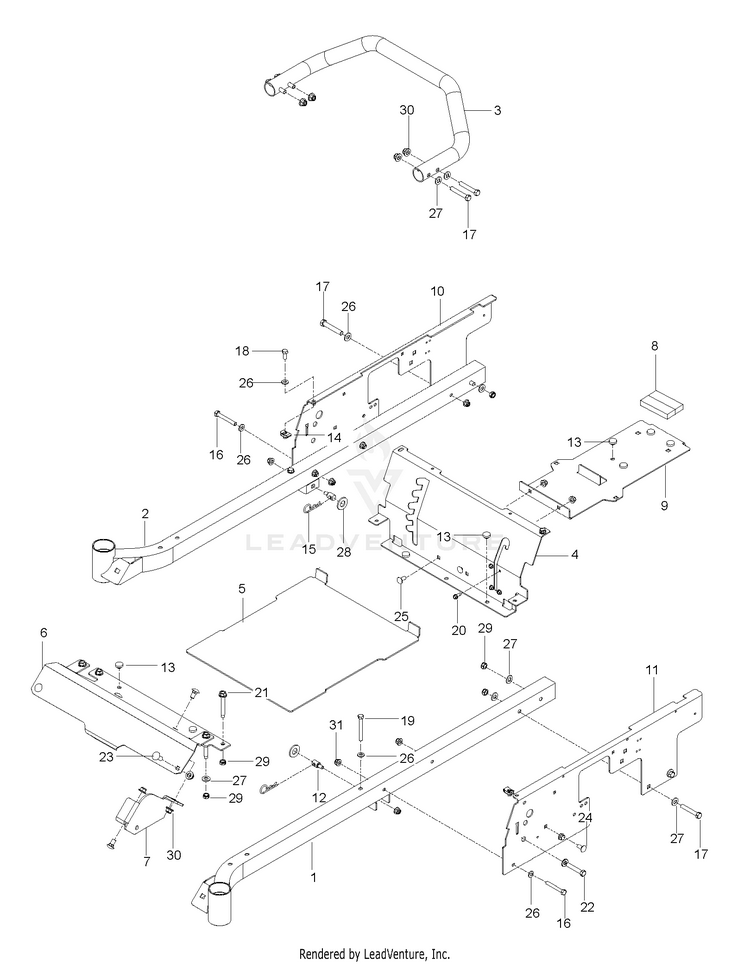

FRAME

...
...
30
GSPW Nuts HUS-521996502
...
20
SCREW 1/4 X 5/8 HUS-539990362
...
2
FRAME TUBE, RH, ORG HUS-525454902
...
7
BRACKET, FRONT DECK, BLK HUS-525605502
...
9
SUPPORT, TANK/BATT, BLK HUS-525798402
...
24
RHSNB 3/8-16 X 3/4 GR5 ZD HUS-539111785
...
12
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
28
WASHER 5/8 FLAT HUS-539976982
...
27
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
31
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
14
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
10
PLATE.RH.SIDE.ORANGE HUS-575328402
...
8
FOAM STRIP, FUEL TANK HUS-539110290
...
11
PLATE.LH.SIDE.ORANGE HUS-575328302
...
22
HCS 1/2C X 2 3/4 HUS-539101332
...
29
Nuts HUS-596230801
...
6
FOOT REST, ORG HUS-574356002
...
23
Bolts HUS-595316801
...
21
ENGINE BOLT, SPECIAL HUS-539111976
...
13
GROMMET, BUMPER HUS-539102587
...
16
CAPSCREW HUS-539976938
...
18
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
1
FRAME TUBE, LH, ORG HUS-525454702
...
15
Pins HUS-596273101
...
3
IMPACT BAR, ORG HUS-574354702
...
4
PANEL.SEAT.SUPPORT.ORANGE HUS-575661302
...
19
HCS 5/16C X 2-3/4 HUS-539101721
...
5
PAN, FLOOR W/DECALS, HUS W/ Safety Decals HUS-576414602
...
26
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
25
GSPW Bolts HUS-595901601
...
17
Bolts HUS-596564404
