Husqvarna RZ 4219 - 966809001 (2012-02) Zero Turn Mower

Model: RZ 4219 - 966809001 (2012-02)

Back To Assemblies

Save Part Not Listed?
product name

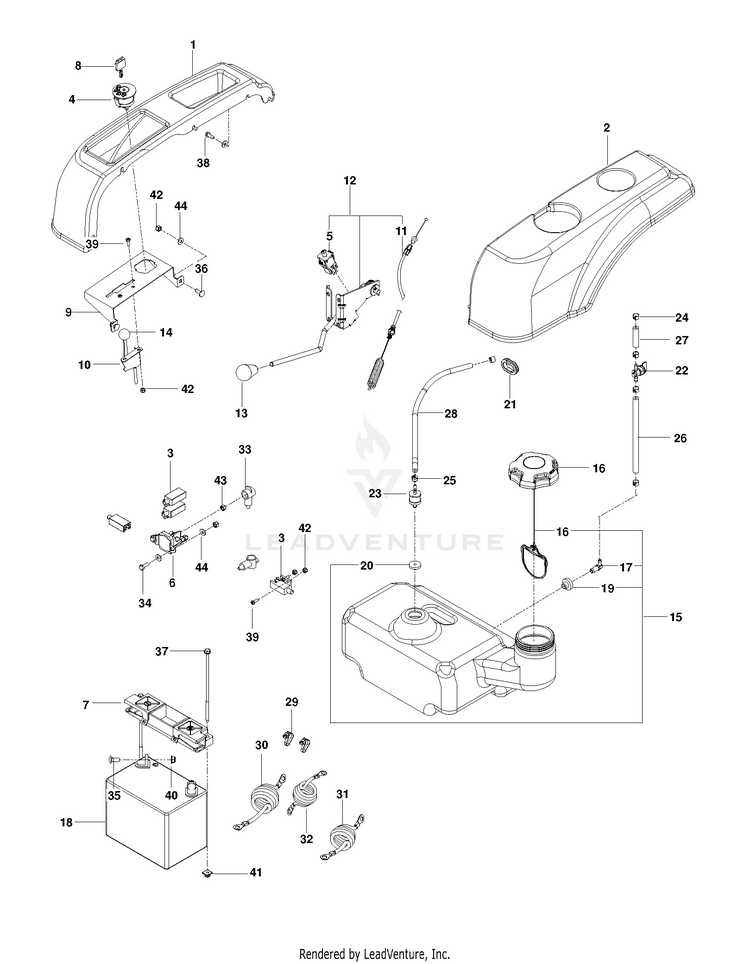

IGNITION SYSTEM

...
...
39
Screws HUS-596039001
...
26
HOSE 1/4 X 8 HUS-539115736
...
18
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
8
KEY MLD GEN DELTA HUS-532140401
...
41
PUSH NUT-NYLON HUS-539107629
...
40
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
2
FENDER, RZ 30/38 LT LH HUS-525594702
...
9
MOUNT, CONTROLS, BLK HUS-525598601
...
4
IGNITION SWITCH HUS-532175566
...
35
GSPW Bolts HUS-595901601
...
11
CABLE.CLUTCH.38".SERVICE HUS-532193235
...
12
ASM, CLUTCH ENGAGE W/CABLE HUS-575661501
...
30
POST.CABLE LONG HUS-539104974
...
21
RUBBER GROMMET HUS-539105974
...
16
CAP 3.5IN SEALED HUS-575018103
...
7
BATTERY HOLD DOWN HUS-539107628
...
28
HOSE, FUEL, 3/16" X 20" HUS-574521305
...
44
Washers HUS-596582301
...
36
BOLT CUP HEAD SQUARE NECK BOLT HUS-596238401
...
xx
RP HARNESS, WIRING 30/38 NOT SHOWN HUS-525744301
...
27
HOSE 1/4 X 2" HUS-539121486
...
14
KNOB.ROUND.BALL.BLACK HUS-539133049
...
23
VALVE.FUEL.CHECK HUS-576618101
...
43
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
34
Screws HUS-596230901
...
32
BATTERY CABLE, NEGATIVE HUS-539110068
...
37
BATTERY TIEDOWN KIT HUS-532150177
...
38
SCREW 1/4 X 5/8 HUS-539990362
...
42
Hardware HUS-596040801
...
1
FENDER, RZ 30/38 RT RH HUS-525594701
...
15
FUEL TANK ASM SMALL HUS-576646403
...
5
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
3
SWITCH, INTERLOCK HUS-539101080
...
29
TIE, PLASTIC HUS-539976856
...
33
TERMINAL COVER-SM HUS-539116400
...
25
CLAMP, HOSE HUS-575436501
...
22
FUEL VALVE HUS-539916325
...
19
RUBBER GROMMET HUS-539105245
...
31
CABLE BATTERY POS RZ HUS-586108201
...
6
SOLENOID HUS-539101714
...
10
CABLE, THROTTLE HUS-522730101
...
13
KNOB - SHIFT HUS-539132624
...
17
STEM FUEL TANK HUS-532139277
...
20
GROMMET.CHECK.FUEL HUS-584648201
...
24
HOSE CLAMP HUS-539912222
