Husqvarna RZ 4219 - 966809001 (2012-02) Zero Turn Mower

Model: RZ 4219 - 966809001 (2012-02)

Back To Assemblies

Save Part Not Listed?
product name

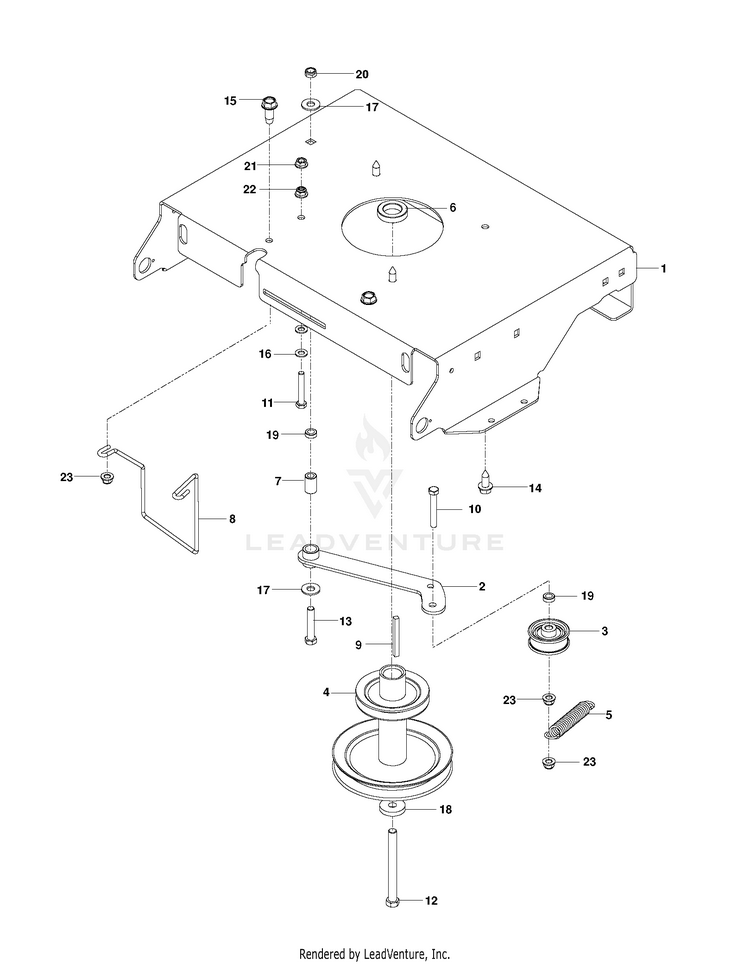

ENGINE PLATE

...
...
19
WASHER 3/8 X 3/4 X .187 TK HUS-539109562
...
2
!DLER ARM WLDMNT, BLACK HUS-574497504
...
xx
PIGTAIL, B&S 19.5HP NEED VARIES BY MODEL HUS-576014301
...
18
WASHER .43X1.38X.25 HUS-539115546
...
15
BOLT 3/8-16 X 1.0 HUS-539107476
...
9
KEY 1/4 SQ X 2-1/2 HUS-539917033
...
10
TAPBOLT, 3/8C X 3 HUS-539101350
...
11
HCS 5/16-18X2 HUS-539976937
...
17
GSPW Washers HUS-596433701
...
8
KEEPER.BELT.ENGINE.42.SZ HUS-581770001
...
14
SCREW 3/8-16X1 HUS-817120616
...
5
SPRING - 3.50 HUS-539116350
...
12
HCS 7/16-20 X 4 GR5 ZD HUS-574882801
...
20
Nuts HUS-596230801
...
22
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
6
SPACER HUS-539114387
...
23
GSPW Nuts HUS-521996502
...
4
PULLEY, ENGINE 6.5 HUS-574382001
...
16
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
7
BUSHING HUS-539115270
...
21
GSPW Hardware HUS-596039201
...
13
HCS 3/8C X 2 HUS-539990588
...
3
PULLEY IDLER HUS-539120812
...
1
PLATE.ENGINE.ORG HUS-578156302
