Husqvarna RZ 4216 - 966612401 (2012-02) Zero Turn Mower

Model: RZ 4216 - 966612401 (2012-02)

Back To Assemblies

Save Part Not Listed?
product name

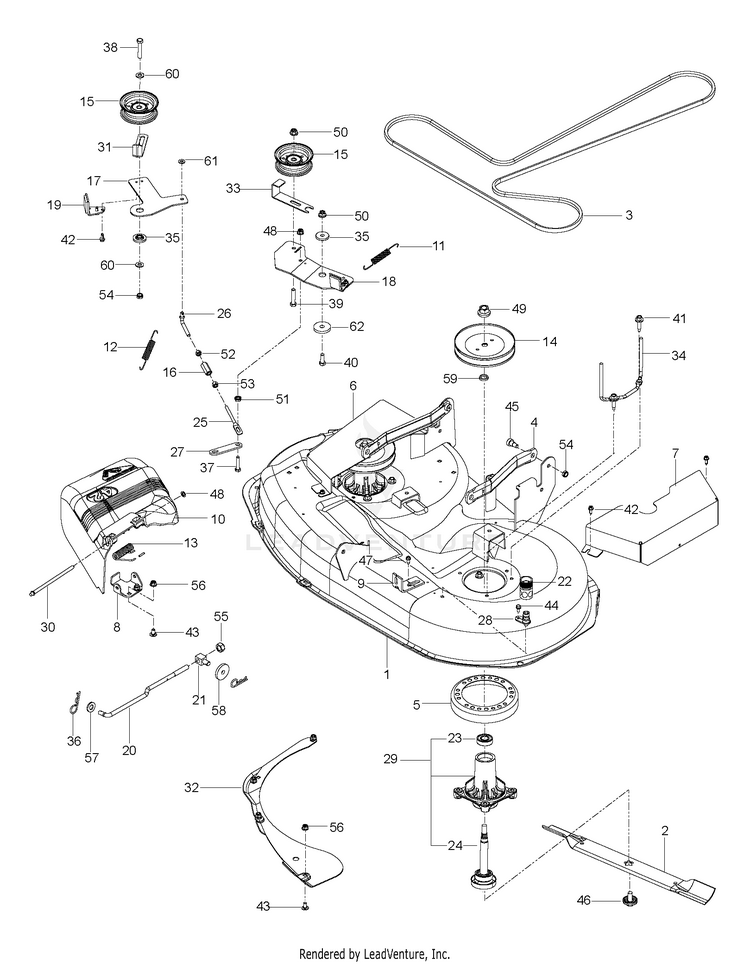

MOWER DECK / CUTTING DECK

...
...
22
COUPLING.QUICK CONNECT HUS-532416405
...
47
BOLT.5/16HEX.WHS.HD HUS-817000510
...
57
Washers HUS-595086801
...
17
ARM.BRAKE.42.BLACK HUS-574693302
...
12
SPRINGS HUS-599698501
...
10
SHIELD.DEFLECTOR.MOWER.42"BLAC HUS-532403004
...
2
42" MULCH BLADE HUS-594892701
...
53
Hardware HUS-596040901
...
46
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
48
NUT PUSH M HUS-532110452
...
30
Rods HUS-595297001
...
3
BELT.42.SZ.117.3 HUS-581805901
...
41
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
50
GSPW Nuts HUS-521996502
...
37
Bolts HUS-596582201
...
42
SCREW.1/4-20X5/8 HUS-532137729
...
34
BELT KEEPER.MANDREL.38"COATED HUS-532400140
...
6
GUARD.RIGHT.BELT.42"BLACK RH HUS-575754602
...
55
NUT, 7/16-20 HEX NYLOC ZC HUS-573975201
...
59
WASHER.SPACER.MANDREL HUS-532187690
...
15
IDLER PULLEY HUS-539919078
...
44
SCREW 3/8C X 3/4 HEX CAP HUS-539990134
...
8
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
18
ARM DECK IDLER ARM.IDLER.BLACK HUS-574694505
...
16
Coupling HUS-596718601
...
7
GUARD.LEFT.BELT.42" BLACK LH HUS-575754502
...
61
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
45
Bolts HUS-596241101
...
39
Bolts HUS-596583901
...
23
BEARING HUS-532110485
...
19
BRAKE.ARM.LH.38"TEX.COATED HUS-532400130
...
49
Nuts HUS-596134801
...
26
LINK SZ42 ADJ, PINNED END HUS-581866201
...
40
Bolts HUS-596564401
...
33
KEEPER, BELT HUS-577209101
...
28
PORT.WASHOUT HUS-532415598
...
38
HCS 3/8C X 2 HUS-539990588
...
5
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
62
WASHER, FRICTION HUS-539102998
...
56
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
13
TORSION SPRING HUS-539107609
...
4
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
58
Washers HUS-596770301
...
32
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
36
Pins HUS-596273101
...
43
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
14
PULLEY.MANDREL.5.438.P HUS-532195945
...
60
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
31
GUIDE, BELT HUS-525851801
...
52
Nuts HUS-596584101
...
51
GSPW Hardware HUS-596039201
...
11
SPRING RETURN HUS-532401872
...
24
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
21
SWIVEL HUS-539114789
...
54
Nuts HUS-596230801
...
29
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
20
Links HUS-581506902
...
1
DECK.SVC W/DECALS 42" HTC RZ w/ SAFETY DECALS HUS-575699801
...
27
KIT.SERVICE.42SZ.MANUAL.CLUTCH HUS-584300001
...
9
BRACKET.CLUTCH.CABLE HUS-532417645
...
25
LINK HUS-581866301
...
35
SPACER.RETAINER HUS-532199092
