Husqvarna RZ 3016 - 966612301-01 (2011-02) Zero Turn Mower

Model: RZ 3016 - 966612301-01 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

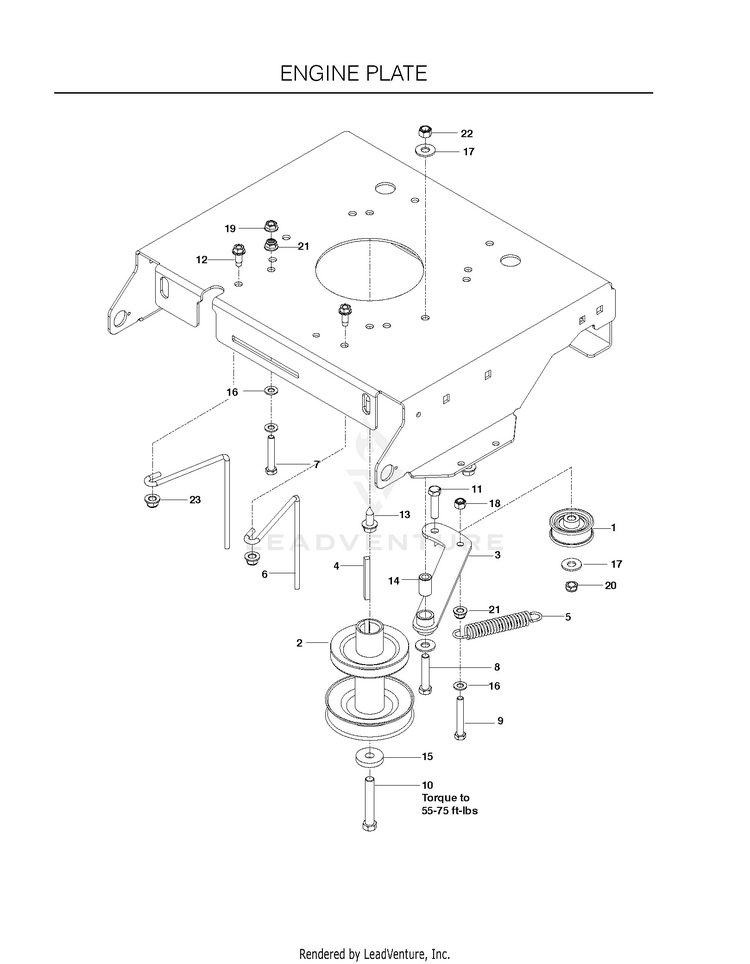

ENGINE PLATE

...
...
2
PULLEY.ENGINE.30" HUS-588586501
...
9
CAPSCREW HUS-539976938
...
22
GSPW Nuts HUS-596240901
...
23
GSPW Nuts HUS-521996502
...
10
HCS 7/16-20 X 2-3/4 HUS-539110065
...
18
Nuts HUS-596583702
...
12
HCS 3/8C X 1 1/4 GR5 HUS-539976941
...
14
BUSHING HUS-539115270
...
7
HCS 5/16-18X2 HUS-539976937
...
19
GSPW Hardware HUS-596039201
...
20
Nuts HUS-596230801
...
11
HCS 3/8C X 1 1/2 HUS-539990655
...
4
KEY 1/4 SQ X 2-1/2 HUS-539917033
...
6
BELT GUIDE HUS-574172901
...
15
WASHER .43X1.38X.25 HUS-539115546
...
13
SCREW 3/8-16X1 HUS-817120616
...
5
SPRING - 3.50 HUS-539116350
...
8
HCS 3/8C X 2 HUS-539990588
...
16
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
21
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
3
IDLER WLDT. HUS-539120990
...
17
GSPW Washers HUS-596433701
...
1
PULLEY IDLER HUS-539120812
