Husqvarna RZ 3016 - 966612301-01 (2011-02) Zero Turn Mower

Model: RZ 3016 - 966612301-01 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

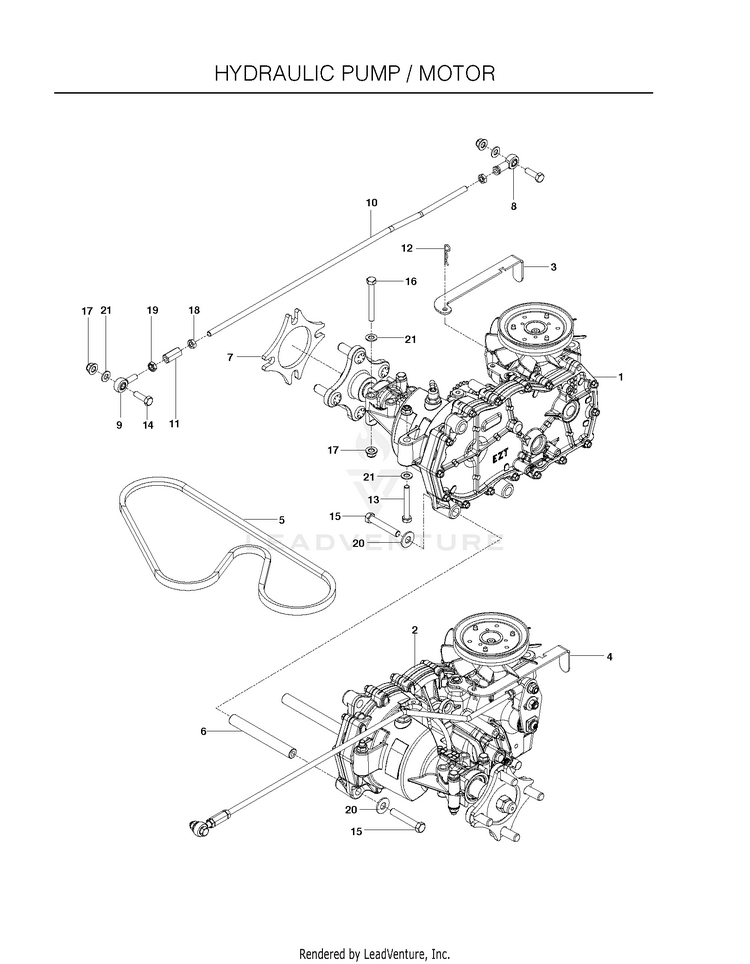

HYDRAULIC PUMP - MOTOR

...
...
7
SPACER, WHEEL HUS-539114804
...
12
Pins HUS-596580601
...
8
JOINT.HEIM.FEML.5/16.RH.THREAD HUS-579764601
...
17
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
2
HG_HYDRO LH HUS-539120153
...
10
CONTROL ROD HUS-539120169
...
19
Nuts HUS-596584101
...
14
Bolts HUS-596580801
...
3
RELEASE LEVER RH HUS-539120157
...
6
HYDRO SPACER HUS-539120154
...
15
Bolts HUS-596564404
...
1
HG_HYDRO RH HUS-539120152
...
16
HCS 5/16C X 2-3/4 HUS-539101721
...
11
Coupling HUS-596718601
...
13
CAPSCREW HUS-539976938
...
20
GSPW Washers HUS-596433701
...
9
ROD.END.MALE.LH.THREAD HUS-588692502
...
4
RELEASE LEVER LH HUS-539120156
...
21
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
18
NUT 5/16-24 UNF HEX JAM HUS-539115502
...
5
BELT 30 ZEZT HUS-539120806
