Husqvarna RZ 3016 - 966612301-01 (2011-02) Zero Turn Mower

Model: RZ 3016 - 966612301-01 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

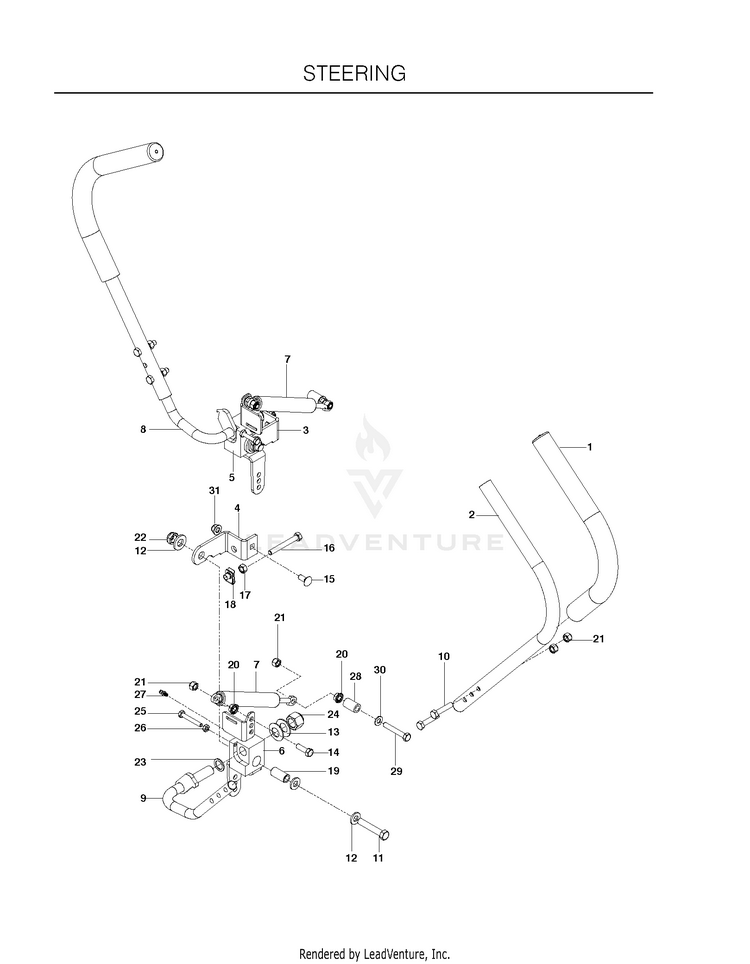

STEERING

...
...
22
NUT 1/2-13 HEX JM NYL HUS-539108010
...
20
GSPW Hardware HUS-596039201
...
4
FORWARD STOP LH HUS-539117950
...
2
LEVER UPPER HUS-539120160
...
31
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
15
GSPW Bolts HUS-595901601
...
17
Nuts HUS-596582601
...
27
ZERK, 3/16, DRIVE IN HUS-539115638
...
7
DAMPENER, DUAL ACTION HUS-539114453
...
18
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
30
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
12
Washers HUS-595086801
...
3
FORWARD STOP RH HUS-539117949
...
11
HCS 1/2C X 2 3/4 HUS-539101332
...
9
LEVER PLATED LH HUS-539120162
...
25
BOLT 1/4C X 1 3/4 HUS-539991003
...
1
GRIP HUS-539120899
...
28
BUSHING HUS-539119087
...
8
LEVER.PLATED.RH HUS-539120159
...
6
PIVOT LH (PLATED) HUS-539120983
...
13
WASH 5/8 BEVELED DISC SPRING HUS-539911121
...
14
Bolts HUS-596580801
...
16
Screws HUS-596437101
...
26
Nuts HUS-597357701
...
23
WASHER-.626IDX.056TK HUS-539115570
...
24
Nuts HUS-594977001
...
21
Nuts HUS-596583702
...
19
BUSHING HUS-539120956
...
10
Bolts HUS-596582201
...
29
HCS 5/16-18X2 HUS-539976937
...
5
PIVOT RH (PLATED) HUS-539120984
