Husqvarna RZ 3016 - 966612301-01 (2011-02) Zero Turn Mower

Model: RZ 3016 - 966612301-01 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

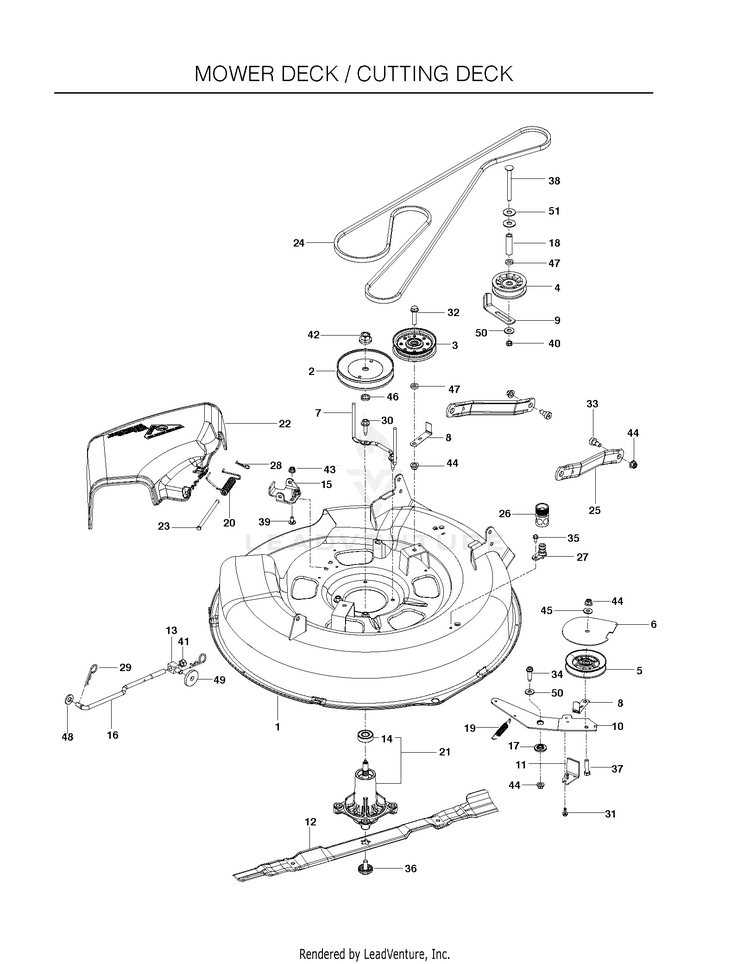

MOWER DECK / CUTTING DECK

...
...
5
PULLEYS HUS-593787801
...
28
Pins HUS-596580601
...
34
BOLT 3/8-16 X 1 1/2 ZINC CLEAR HUS-539110025
...
18
SPACER .39 ID X 2.25 HUS-525848801
...
7
BELT KEEPER.MANDREL.38"COATED HUS-532400140
...
27
PORT.WASHOUT HUS-532415598
...
1
DECK.SVC.W/DECALS.30".RZ.ORN HUS-574453401
...
41
NUT, 7/16-20 HEX NYLOC ZC HUS-573975201
...
24
BELT, 100" EL HUS-574173002
...
19
SPRING RETURN HUS-532401872
...
31
SCREW.1/4-20X5/8 HUS-532137729
...
22
SHIELD.DEFLECT.MWR.30S.BLACK HUS-532417344
...
3
Pulleys HUS-596481401
...
47
WASHER 3/8 X 3/4 X .187 TK HUS-539109562
...
16
Links HUS-581506902
...
33
Bolts HUS-596241101
...
15
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
11
BRAKE.ARM.LH.38"TEX.COATED HUS-532400130
...
43
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
25
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
6
COVER, PULLEY, BLACK HUS-573970402
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
26
COUPLING.QUICK CONNECT HUS-532416405
...
23
Pins HUS-595935501
...
39
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
9
GUIDE, BELT HUS-525851801
...
44
GSPW Nuts HUS-521996502
...
2
PULLEY MANDREL 5.0" HUS-532199791
...
48
Washers HUS-595086801
...
20
TORSION SPRING HUS-539107609
...
45
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
32
BLT 3/8-16X1-3/4 WHIZLK ZN SP HUS-539990701
...
51
Washers HUS-596437601
...
42
Nuts HUS-596134801
...
36
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
50
GSPW Washers HUS-596433701
...
38
RHSNB 3/8-16 X 4 GR5 ZD HUS-525848601
...
12
BLADE.MOWER.BAGGING.30" HUS-532419274
...
13
SWIVEL HUS-539114789
...
21
KIT.MANDREL.GREASEABLE.TALL HUS-587820301
...
29
Pins HUS-596273101
...
4
PULLEY IDLER, BACKSIDE 3 INCH HUS-531350601
...
8
KEEPER, BELT, BLACK HUS-529311701
...
40
NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 HUS-596433501
...
17
SPACER.RETAINER HUS-532199092
...
37
HCS 3/8C X 2 HUS-539990588
...
14
BEARING, BALL HUS-539112050
...
49
Washers HUS-596770301
...
46
WASHER.SPACER.MANDREL HUS-532187690
...
35
BOLT 1/4-20 X 1/2 HWST HUS-539108461
...
10
ARM, IDLER 30, BLK HUS-574172804
