Husqvarna RZ 3016 - 966612301-01 (2011-02) Zero Turn Mower

Model: RZ 3016 - 966612301-01 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

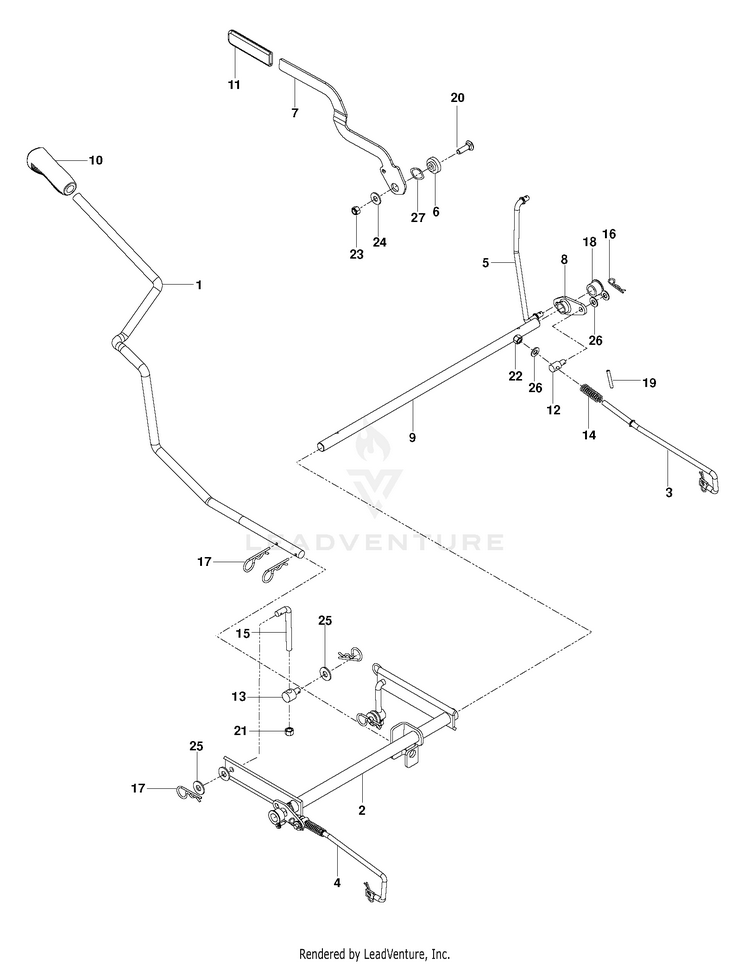

BRAKE / REAR MOWER LIFT

...
...
20
RHSNB 3/8-16 X 1-1/4 HUS-539100413
...
15
L-ROD 3.5 HUS-539115658
...
27
WASHER, .825 X 1.087, WAVE HUS-539133007
...
16
Pins HUS-596580601
...
1
ARM, LIFT HANDLE, BLK HUS-525580402
...
12
BRAKE SWIVEL HUS-539112308
...
14
SPRING HUS-539101224
...
5
LINKAGE, BRAKE, UPPER HUS-525735701
...
8
BELLCRANK, BRAKE HUS-525580201
...
7
HANDLE, BRAKE, BLK HUS-525485602
...
11
GRIP BRAKE HANDLE HUS-539120921
...
18
PLASTIC BUSHING HUS-539109368
...
23
Nuts HUS-596230801
...
9
ROD, BRAKE HUS-574356601
...
2
SHAFT, LIFT WLDMT, BLACK HUS-574356802
...
21
GSPW Nuts HUS-596240901
...
3
LINKAGE, EZT BRAKE RT HUS-525583601
...
24
Washers HUS-596581701
...
6
BRAKE ARM PIVOT HUS-539120220
...
19
ROLL PIN 3/16 X 1-1/4 ZD HUS-539101082
...
4
LINKAGE, EZT BRAKE LT HUS-525583701
...
13
SWIVEL HUS-539118179
...
22
Nuts HUS-596583702
...
17
Pins HUS-596273101
...
26
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
25
GSPW Washers HUS-596433701
...
10
GRIP.HANDLE.LIFT.PVC.BLACK GRIP HUS-532411555
