Husqvarna RZ 3016 - 966612301-01 (2011-02) Zero Turn Mower

Model: RZ 3016 - 966612301-01 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

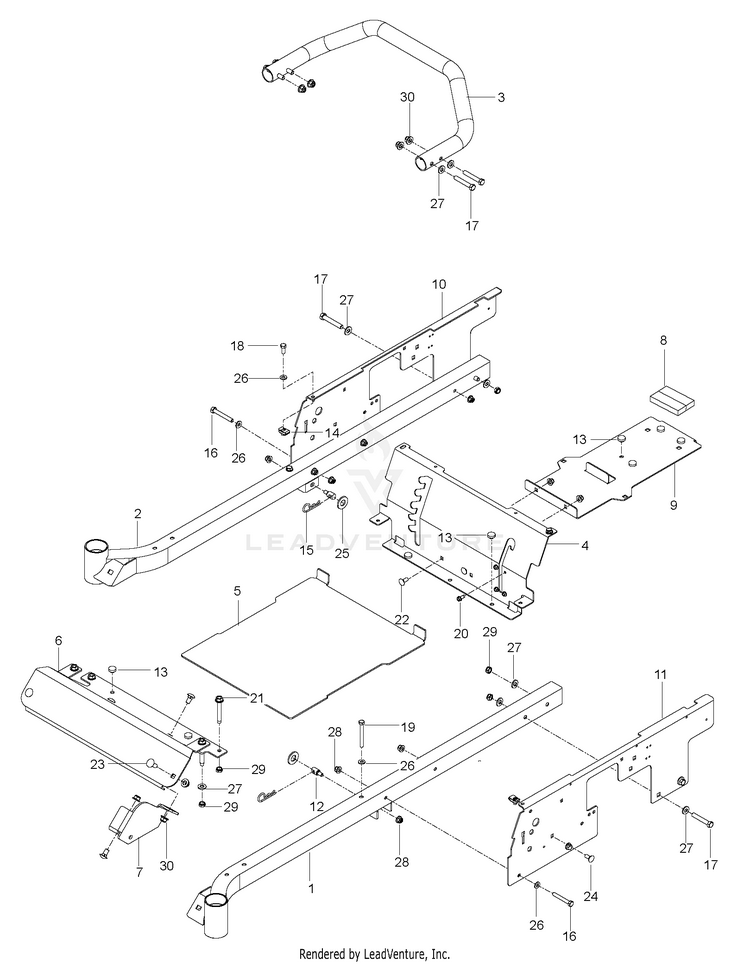

FRAME

...
...
12
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
21
Screws HUS-596436901
...
13
GROMMET, BUMPER HUS-539102587
...
17
Bolts HUS-596564404
...
2
FRAME TUBE, RH, ORG HUS-525454902
...
28
WASHER 5/8 FLAT HUS-539976982
...
4
PANEL, SEAT SUPP. ORG HUS-575852102
...
26
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
6
FOOT.REST.30/38.ORANGE HUS-525835902
...
5
PLATE, FOOT W/DECALS, HUSQ W/ DECALS HUS-576452401
...
28
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
7
BRACKET, FRONT DECK, BLK HUS-525605502
...
25
Washers HUS-596320001
...
22
GSPW Bolts HUS-595901601
...
11
PLATE.LH.SIDE.ORANGE HUS-575328302
...
16
Bolts HUS-596434801
...
14
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
18
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
3
IMPACT BAR, ORG HUS-525865902
...
10
PLATE.RH.SIDE.ORANGE HUS-575328402
...
27
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
9
SUPPORT, TANK/BATT, BLK HUS-525798402
...
29
Nuts HUS-596230801
...
15
Pins HUS-596273101
...
1
FRAME TUBE, LH, ORG HUS-525454702
...
19
Bolts HUS-596218601
...
8
FOAM STRIP, FUEL TANK HUS-539110290
...
24
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 HUS-872140606
...
30
GSPW Nuts HUS-521996502
...
20
SCREW 1/4 X 5/8 HUS-539990362
...
23
Bolts HUS-596728201
Schematic Image Zoomed
