Husqvarna RY12542A (1992) Tractor

Model: RY12542A (1992)

Back To Assemblies

Save Part Not Listed?
product name

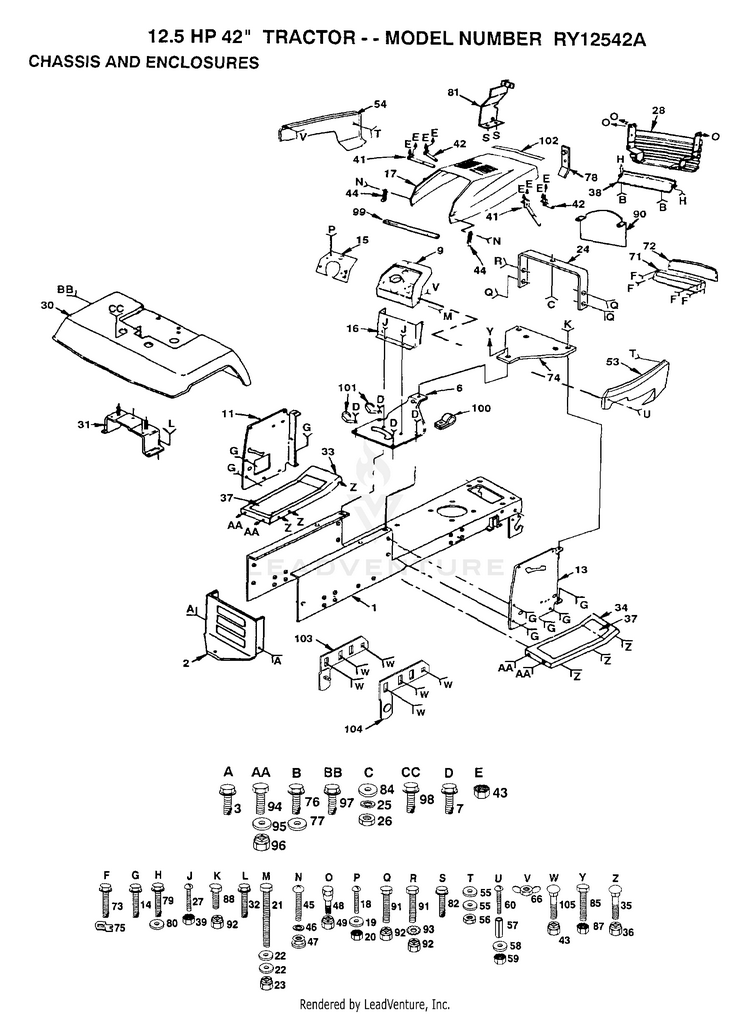

CHASSIS AND ENCLOSURES

...
...
1
SUB= 145501 HUS-135034
...
2
SUB= 145009 HUS-130805
...
3
SCREW HUS-17490612
...
6
SADDLE HUS-131343X021
...
7
SCREW LT HUS-17490608
...
9
SUB= 140398 HUS-124252X
...
11
DASH PANEL LH HUS-132178
...
13
PANEL PNT DASH RH HUS-132068
...
14
SCREW HUS-17490612
...
15
DASH PLATE HUS-125581X015
...
16
LOWER DASH HUS-132177
...
17
HOOD HUS-132635X419
...
18
SCREW HUS-74180512
...
19
WASHER HUS-19111116
...
20
NUT HUS-73510500
...
21
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
22
WASHER HUS-19131312
...
23
SUB= 73690600 HUS-73680600
...
24
SUPPORT ASS'Y HUS-124130X
...
25
LOCKWASHER HUS-10040400
...
26
SUB= 50675 HUS-73220400
...
27
SCREW HUS-74180512
...
28
SUB= 532131716 HUS-131716
...
30
FENDER HUS-109872X419
...
31
SUB= 136619 HUS-109873X
...
32
SCREW HUS-17490612
...
33
SUB= 145244X419 HUS-105465X419
...
34
FOOTREST RH HUS-105464X419
...
35
BOLT HUS-72110606
...
36
SUB= 73690600 HUS-73680600
...
37
"PAD,FOOTREST" HUS-131864
...
38
"STRAP,GRILL " HUS-105419X419
...
39
NUT HUS-73510500
...
41
SUB= 155013 HUS-106784X
...
42
SUB= 155013 HUS-104618X
...
43
NUT HUS-73510400
...
44
HOOD LATCH T HUS-109808X
...
45
SCREW HUS-74191008
...
46
LOCKWASHER HUS-10071000
...
47
WELDNUT HUS-2029J
...
48
SUB= 7605J HUS-123481X
...
49
SUB= 73690400 HUS-73680400
...
53
"PANEL,SIDE RH" HUS-132636X419
...
54
"PANEL,SIDE LH" HUS-132637X419
...
55
WASHER PM HUS-19091216
...
56
SUB= 50675 HUS-73220400
...
57
SPACER LT HUS-7206J
...
58
WASHER HUS-19070818
...
59
NUT HUS-73731000
...
60
SCREW HUS-74981020
...
66
SUB= 146525 HUS-123198X
...
71
SUB= 147717 HUS-124392X417
...
72
LENS LT HUS-106395X
...
73
SCREW LT HUS-17211010
...
74
SUB= 140181 HUS-106965X
...
75
"""J"" FASTENER LT" HUS-104755X
...
76
SCREW HUS-17490512
...
77
WASHER HUS-19131210
...
78
SUB= 532132644 HUS-132644
...
79
SCREW HEX CRT HUS-17490412
...
80
WASHER HUS-19091016
...
81
SUB= 532121279 HUS-121279X
...
82
SCREW HUS-17490612
...
84
WASHER PM HUS-19091216
...
85
BOLT HUS-74760512
...
87
NUT HUS-73510500
...
88
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
90
BAFFLE HOOD VERT HUS-133685
...
91
SUB= 74780612 HUS-74760612
...
92
SUB= 73690600 HUS-73680600
...
93
LOCKWASHER HUS-11050600
...
94
SUB= 74780612 HUS-74760612
...
95
WASHER HUS-19131312
...
96
SUB= 73690600 HUS-73680600
...
97
SCREW LT HUS-17490608
...
98
SCREW HUS-17490612
...
99
FOAM-STRIP LT HUS-105037X
...
100
CLIP T HUS-2751R
...
101
CLIP T HUS-2751R
...
102
SUB= 105037X HUS-104915X
...
103
PIVOT BRKT LH HUS-134774
...
104
PIVOT BRKT RH HUS-134775
...
105
BOLT HUS-72140606
