Husqvarna RT150CR (1999 & Before) Tiller

Model: RT150CR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

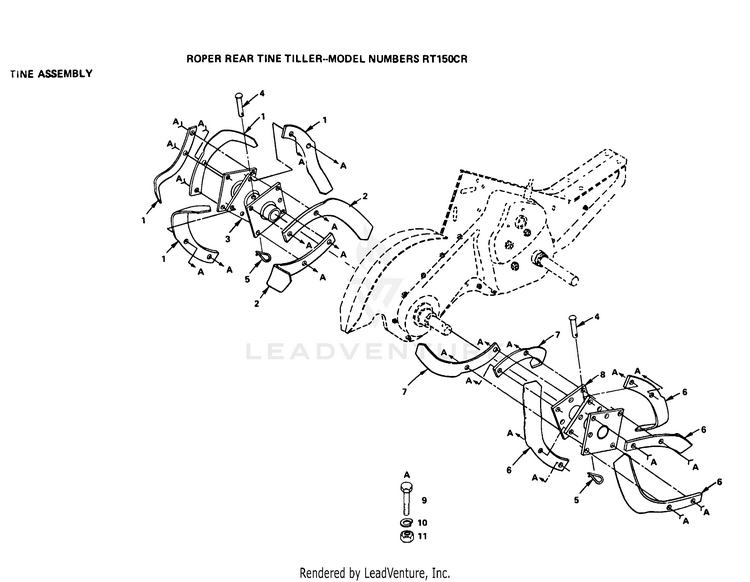

TINE ASSEMBLY

...
...
1
SUB= 6554J HUS-4459J
...
2
"TINE.LH.12""" HUS-6554J
...
3
TINE ASSY LH CRT HUS-102380X
...
4
RIVET.PAN HD.1.75 HUS-4929H
...
5
RETAINER.SPRING HUS-3146R
...
6
SUB= 6555J HUS-4460J
...
7
"TINE.RH.12""" HUS-6555J
...
8
TINE ASSY RH CRT HUS-102382X
...
9
BOLT HUS-74610616
...
10
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
11
SUB= 7810H HUS-73610600
...
xx
MANUAL - OWNER'S HUS-104537X
