Husqvarna RT150CR (1999 & Before) Tiller

Model: RT150CR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

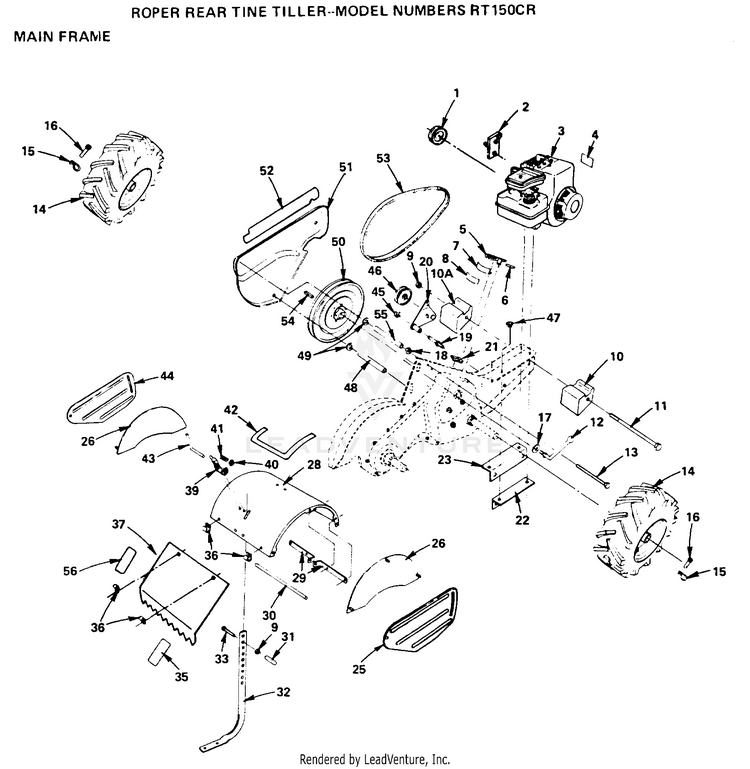

MAIN FRAME

...
...
1
SUB= 130816 HUS-102142X
...
2
BRACKET ASSY CRT HUS-102376X
...
3
NLA HUS-130202
...
4
DECAL - 5HP HUS-102697X
...
5
SUB= 110111X HUS-102166X
...
6
SUB= 2882J HUS-1572H
...
7
PANEL TI HUS-8700J
...
8
DECAL CRT HUS-102180X
...
8
NLA HUS-104323X
...
9
NUT.HEX.3/8-16UNC HUS-73220600
...
10
COUNTERWEIGHT CRT HUS-102173X
...
10A
COUNTERWEIGHT CRT HUS-102383X
...
11
BOLT CRT HUS-102384X
...
12
SUB= 109228X HUS-102373X
...
13
BOLT-HEX TI HUS-74930576
...
14
SUB= 124258X HUS-102189X
...
xx
TIRE.CHV.13X5.0-6 HUS-102190X
...
xx
SUB= 65139 HUS-795R
...
15
RETAINER M HUS-4497H
...
16
SUB= 126875X HUS-102841X
...
17
WASHER HUS-19131414
...
18
NUT.HEX.5/16-18 HUS-73220500
...
19
SHIFT ARM CRT HUS-102141X
...
20
SUB= 918105611X HUS-105611X
...
21
CONDIUT CLIP T HUS-9484R
...
22
BRACKET RH CRT HUS-102332X
...
23
BRACKET LH CRT HUS-102331X
...
25
NLA HUS-104101X358
...
26
SUB= 104085X505 HUS-104085X358
...
28
NLA HUS-102326X358
...
29
SUB= 124343X HUS-102155X
...
30
SUB= 120588X HUS-102154X
...
31
GRIP CRT HUS-102701X
...
32
SUB= 102156X500 HUS-102156X
...
33
BOLT HUS-74930632
...
35
NLA HUS-104476X
...
35
NLA HUS-104816X
...
36
HINGE CRT HUS-4440J
...
37
SHLD-LEVELING TI HUS-102695X358
...
39
LATCH BRACKET TI HUS-8392J
...
40
KLIP RING TI HUS-12000036
...
41
SPRING TI HUS-8394J
...
42
DECAL - TINE SHIELD HUS-102698X
...
43
STAKE PIN TI HUS-8393J
...
44
SUB= 104086X505 HUS-104086X358
...
45
KLIP RING HUS-12000032
...
46
PULLEY-IDLER TI HUS-104679X
...
47
GROMMET TI HUS-105897X
...
48
SPACER CRT HUS-104370X
...
49
WASHER HUS-19111116
...
50
"SHEAVE 10"" CRT" HUS-100473M
...
51
SUB= 131159X428 HUS-102148X358
...
52
NLA HUS-102699X
...
53
SUB= 132672 HUS-102143X
...
54
KEY T HUS-2649M
...
55
SPACER CRT HUS-104369X
...
56
DECAL - DEPTH ADJUSTMENT HUS-104949X
