Husqvarna RT130BR (1999 & Before) Tiller

Model: RT130BR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

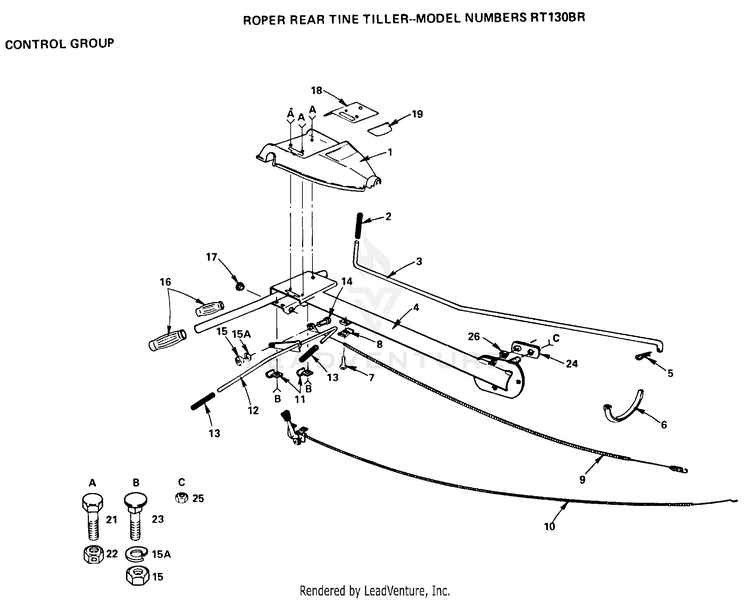

CONTROLS GROUP

...
...
1
PANEL - CONTROL HUS-102595X
...
2
GRIP TI HUS-8389J
...
3
ROD - SHIFT HUS-102868X358
...
4
SUB= 109446X431 HUS-104890X358
...
5
RETAINER M HUS-4497H
...
6
TIE CABLE CRT HUS-104164X
...
7
SCREW TI HUS-17561008
...
8
CONDIUT CLIP T HUS-9484R
...
9
CABLE.CLUTCH.CRT HUS-102162X
...
10
NLA HUS-104216X
...
11
SUB= 102744X431 HUS-102744X
...
12
SUB= 105216X HUS-105216X358
...
13
GRIP BAR CRT HUS-102604X
...
14
SHOULDER BOLT ST HUS-81328
...
15
SUB= 50675 HUS-73220400
...
15A
LOCKWASHER HUS-10040400
...
16
SUB= 624A78 HUS-9266R
...
17
GROMMET TI HUS-102856X
...
18
NLA HUS-102721X
...
18
NLA HUS-104322X
...
19
DECAL - CONTROL PANEL HUS-102692X
...
21
SCREW HUS-74981008
...
22
NUT HUS-98000049
...
23
BOLT HUS-72110404
...
24
"NUT, LOCK CRT" HUS-101282K
...
25
LOCKNUT HUS-73690400
...
26
NUT FLANGE CRT HUS-104886X
