Husqvarna RT130AR (1999 & Before) Tiller

Model: RT130AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

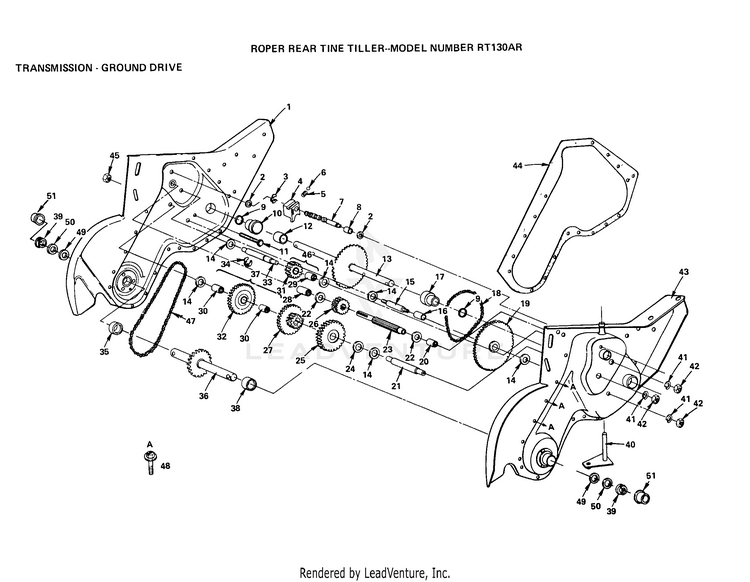

TRANSMISSION P/N BREAKOUT

...
...
xx
SUB= 155112 HUS-104894X
...
1
GEARCASE ASSY HUS-104895X
...
2
WASHER SEAL CRT HUS-102136X
...
3
KLIP RING HUS-12000039
...
4
SHIFT FORK TI HUS-8353J
...
5
SPRING-SHIFT CRT HUS-100371K
...
6
SUB= 100482K HUS-7392M
...
7
SHAFT SHIFT CRT HUS-102109X
...
8
SPACER SPLIT CRT HUS-104159X
...
9
O RING CRT HUS-102128X
...
10
"CRT, BEARING" HUS-102100X
...
11
SCRW WHIZ LOK CRT HUS-102101X
...
12
SUB= 106390X HUS-8364J
...
13
SUB= 109204X HUS-102124X
...
14
WASHER HUS-4358J
...
15
SHFT 2ND RED. CRT HUS-102112X
...
16
SUB= 106388X HUS-102127X
...
17
SUB= 918102106X HUS-102106X
...
18
CHAIN CRT HUS-102134X
...
19
SPRCKT 8 GEAR CRT HUS-102121X
...
20
"TI, BEARING" HUS-4895H
...
21
REDUCTION SHFT TI HUS-8358J
...
22
"T, BEARING" HUS-1370H
...
23
SHAFT-INPUT CRT HUS-102110X
...
24
BRNG RACE HUS-4220R
...
25
SUB= 131527 HUS-102120X
...
26
PINION-INPUT CRT HUS-102113X
...
27
CLUSTER GEAR TI HUS-8546J
...
28
NEEDLE BRNG LT HUS-5020J
...
29
NEEDLE BEARING TI HUS-6803J
...
30
BEARING HUS-4422J
...
31
GEAR-REV IDLR CRT HUS-102115X
...
32
SPROCKET ASSY HUS-102117X
...
33
SHAFT CRT HUS-102111X
...
34
KLIP RING HUS-12000040
...
35
NLA HUS-102129X
...
36
NLA HUS-102131X
...
37
NLA HUS-102116X
...
38
SUB= 106146X HUS-102130X
...
39
RING SPIRAL CRT HUS-102144X
...
40
ARM ASSY CRT HUS-102107X
...
41
LOCKWASHER HUS-10040700
...
42
NUT.ASF.HEX.7/16 HUS-73610700
...
43
NLA HUS-104896X
...
44
SUB= 106211X HUS-102137X
...
45
NUT.HEX.5/16-18 HUS-73220500
...
46
GEAR ASSY CRT HUS-102114X
...
47
NLA HUS-102135X
...
48
SCREW CRT HUS-17580408
...
49
SUB= 147344 HUS-9674R
...
50
SUB= 147344 HUS-9676R
...
51
CUP.FORMED. HUS-9672R
...
xx
GREASE PREMIUM-1 HUS-6066J
Schematic Image Zoomed
