Husqvarna RRT 900 (96093000900) (2009-04) Tiller

Model: RRT 900 (96093000900) (2009-04)

Back To Assemblies

Save Part Not Listed?
product name

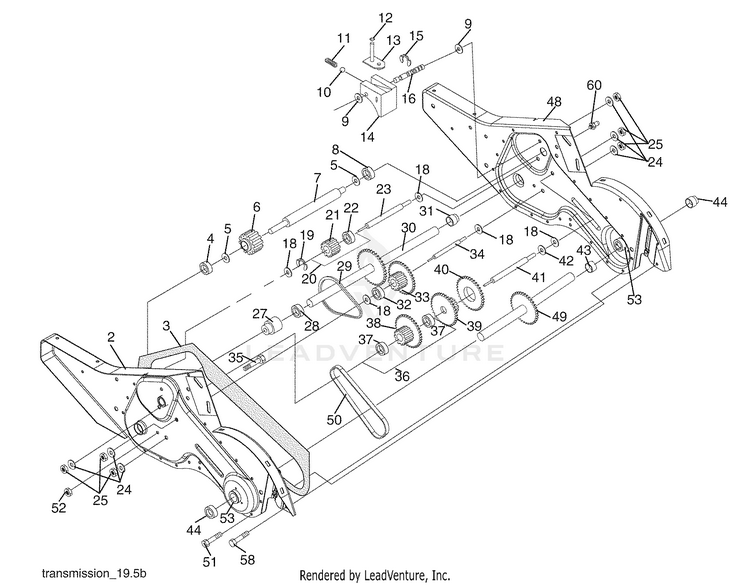

Transmission

...
...
1
TRANSMISSON.SERV.TILLER (Includes Key Nos. 2-53) HUS-532181098
...
2
TRANSMISSON.SERV.TILLER (Includes Key No. 4) HUS-532181098
...
3
GASKET.GEARCASE.CRT/DRT.TILLER HUS-532431022
...
4
NEEDLE BRNG LT HUS-532005020
...
5
THRUST WASHER HUS-532001370
...
6
PINION INPUT CRT TILLER HUS-586196301
...
7
SHAFT.INPUT."D".TILLER HUS-532145101
...
8
BEARING HUS-532004895
...
9
WASHER, SEAL (2 2) HUS-532154467
...
10
KIT.STEEL BALL(12 BALLS) HUS-532100482
...
11
SPRING-SHIFT CRT HUS-532100371
...
12
O-RING TI HUS-532106160
...
13
BRACKET ASM.SHIFT.CRT HUS-532142145
...
14
SHIFT FORK TI HUS-532008353
...
15
KLIP RING HUS-812000039
...
16
SHAFT.SHIFTER.TILLER HUS-532154466
...
18
WASHER HUS-532004358
...
19
KLIP RING HUS-812000040
...
20
GEAR ASSY CRT (Includes Key Nos. 21 and 22) HUS-532102114
...
21
GEAR-REV IDLR CRT HUS-532102115
...
22
NEEDLE BEARING TI HUS-532006803
...
23
SHAFT CRT HUS-532102111
...
24
Washers HUS-596238901
...
25
NUT.ASF.HEX.7/16 HUS-873610700
...
27
BEARING.GROUND.DRIVE HUS-532431219
...
28
SPACER HUS-532106390
...
29
CHAIN CRT HUS-532102134
...
30
GROUND SHAFT ASS'Y HUS-532150737
...
31
BEARING, SHAFT RH CRT HUS-532143008
...
32
SPACER TI HUS-532106388
...
33
SPRCKT 8 GEAR CRT HUS-532102121
...
34
SHAFT.SECONDARY.REDUCTION.CRT HUS-532102112
...
35
SCRW WHIZ LOK CRT HUS-532102101
...
36
SPROCKET.ASM.W/BEARING.TILLER Includes Key Nos. 37 and 38) HUS-532154355
...
37
BEARING NEEDLE .875X.687 OE.50 HUS-585695502
...
38
SPROCKET.ASM.W/BEARING.TILLER HUS-532154355
...
39
GEAR TI HUS-532105345
...
40
GEAR TI HUS-532105346
...
41
SHAFT.REDUCTION.TILLER HUS-532008358
...
42
BRNG RACE T HUS-532004220
...
43
SPACER TI HUS-532106146
...
44
SEAL ASM, OIL HUS-532155236
...
48
TRANSMISSON.SERV.TILLER HUS-532181098
...
49
KIT.TINE.SHAFT.SERVICE (Inludes Key No. 8) HUS-532432058
...
50
CHAIN.TILLER HUS-532106147
...
51
Screws HUS-596437001
...
52
Nuts HUS-596436301
...
53
KIT.BEARING.TILLER. HUS-532165140
...
58
BOLT SHOULDER 1/4-20 UNC X.875 HUS-532179520
...
60
FITTING.GREASE.TAPERED HUS-532183226
...
xx
GREASE, 14 OZ. CARTRIDGE HUS-585517301
